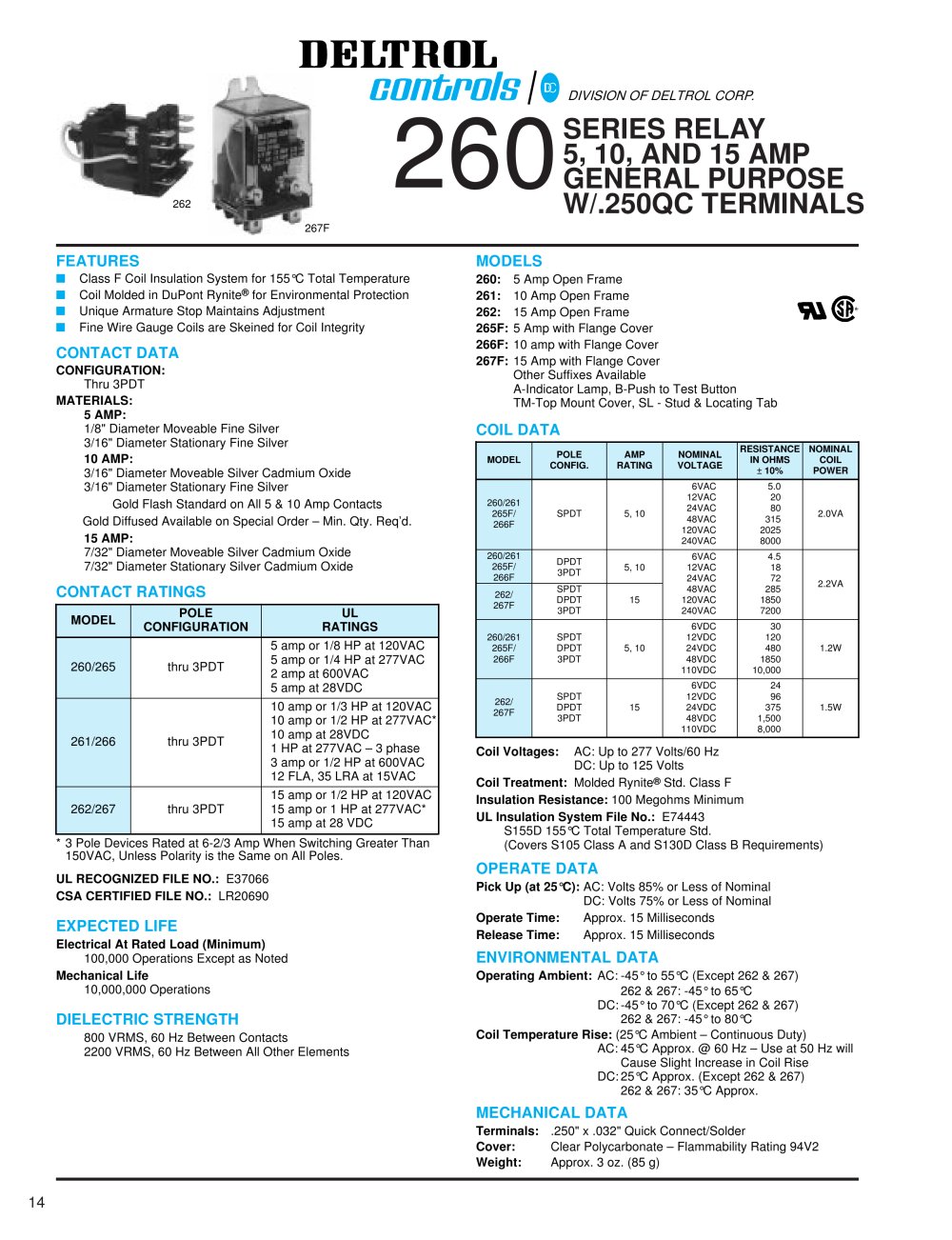

14 260SERIES RELAY 5, 10, AND 15 AMP GENERAL PURPOSE W/.250QC TERMINALS DIVISION OF DELTROL CORP. FEATURES n Class F Coil Insulation System for 155°C Total Temperature n Coil Molded in DuPont Rynite® for Environmental Protection n Unique Armature Stop Maintains Adjustment n Fine Wire Gauge Coils are Skeined for Coil Integrity CONTACT DATA CONFIGURATION: Thru 3PDT MATERIALS: 5 AMP: 1/8" Diameter Moveable Fine Silver 3/16" Diameter Stationary Fine Silver 10 AMP: 3/16" Diameter Moveable Silver Cadmium Oxide 3/16" Diameter Stationary Fine Silver Gold Flash Standard on All 5 & 10 Amp Contacts Gold Diffused Available on Special Order – Min. Qty. Req’d. 15 AMP: 7/32" Diameter Moveable Silver Cadmium Oxide 7/32" Diameter Stationary Silver Cadmium Oxide CONTACT RATINGS MODEL POLE UL CONFIGURATION RATINGS 5 amp or 1/8 HP at 120VAC 260/265 thru 3PDT 5 amp or 1/4 HP at 277VAC 2 amp at 600VAC 5 amp at 28VDC 10 amp or 1/3 HP at 120VAC 10 amp or 1/2 HP at 277VAC* 261/266 thru 3PDT 10 amp at 28VDC 1 HP at 277VAC – 3 phase 3 amp or 1/2 HP at 600VAC 12 FLA, 35 LRA at 15VAC 15 amp or 1/2 HP at 120VAC 262/267 thru 3PDT 15 amp or 1 HP at 277VAC* 15 amp at 28 VDC * 3 Pole Devices Rated at 6-2/3 Amp When Switching Greater Than 150VAC, Unless Polarity is the Same on All Poles. UL RECOGNIZED FILE NO.: E37066 CSA CERTIFIED FILE NO.: LR20690 EXPECTED LIFE Electrical At Rated Load (Minimum) 100,000 Operations Except as Noted Mechanical Life 10,000,000 Operations DIELECTRIC STRENGTH 800 VRMS, 60 Hz Between Contacts 2200 VRMS, 60 Hz Between All Other Elements MODELS 260: 5 Amp Open Frame 261: 10 Amp Open Frame 262: 15 Amp Open Frame 265F: 5 Amp with Flange Cover 266F: 10 amp with Flange Cover 267F: 15 Amp with Flange Cover Other Suffixes Available A-Indicator Lamp, B-Push to Test Button TM-Top Mount Cover, SL - Stud & Locating Tab COIL DATA POLE AMP NOMINAL RESISTANCE NOMINAL MODEL CONFIG. RATING VOLTAGE IN OHMS COIL ± 10% POWER 6VAC 5.0 260/261 12VAC 20 265F/ SPDT 5, 10 24VAC 80 2.0VA 266F 48VAC 315 120VAC 2025 240VAC 8000 260/261 DPDT 6VAC 4.5 265F/ 3PDT 5, 10 12VAC 18 266F 24VAC 72 2.2VA 262/ SPDT 48VAC 285 267F DPDT 15 120VAC 1850 3PDT 240VAC 7200 6VDC 30 260/261 SPDT 12VDC 120 265F/ DPDT 5, 10 24VDC 480 1.2W 266F 3PDT 48VDC 1850 110VDC 10,000 6VDC 24 SPDT 12VDC 96 262/ DPDT 15 24VDC 375 1.5W 267F 3PDT 48VDC 1,500 110VDC 8,000 Coil Voltages: AC: Up to 277 Volts/60 Hz DC: Up to 125 Volts Coil Treatment: Molded Rynite® Std. Class F Insulation Resistance: 100 Megohms Minimum UL Insulation System File No.: E74443 S155D 155°C Total Temperature Std. (Covers S105 Class A and S130D Class B Requirements) OPERATE DATA Pick Up (at 25°C): AC: Volts 85% or Less of Nominal DC: Volts 75% or Less of Nominal Operate Time: Approx. 15 Milliseconds Release Time: Approx. 15 Milliseconds ENVIRONMENTAL DATA Operating Ambient: AC: -45° to 55°C (Except 262 & 267) 262 & 267: -45° to 65°C DC: -45° to 70°C (Except 262 & 267) 262 & 267: -45° to 80°C Coil Temperature Rise: (25°C Ambient – Continuous Duty) AC: 45°C Approx. @ 60 Hz – Use at 50 Hz will Cause Slight Increase in Coil Rise DC: 25°C Approx. (Except 262 & 267) 262 & 267: 35°C Approx. MECHANICAL DATA Terminals: .250" x .032" Quick Connect/Solder Cover: Clear Polycarbonate – Flammability Rating 94V2 Weight: Approx. 3 oz. (85 g) 267F 262
