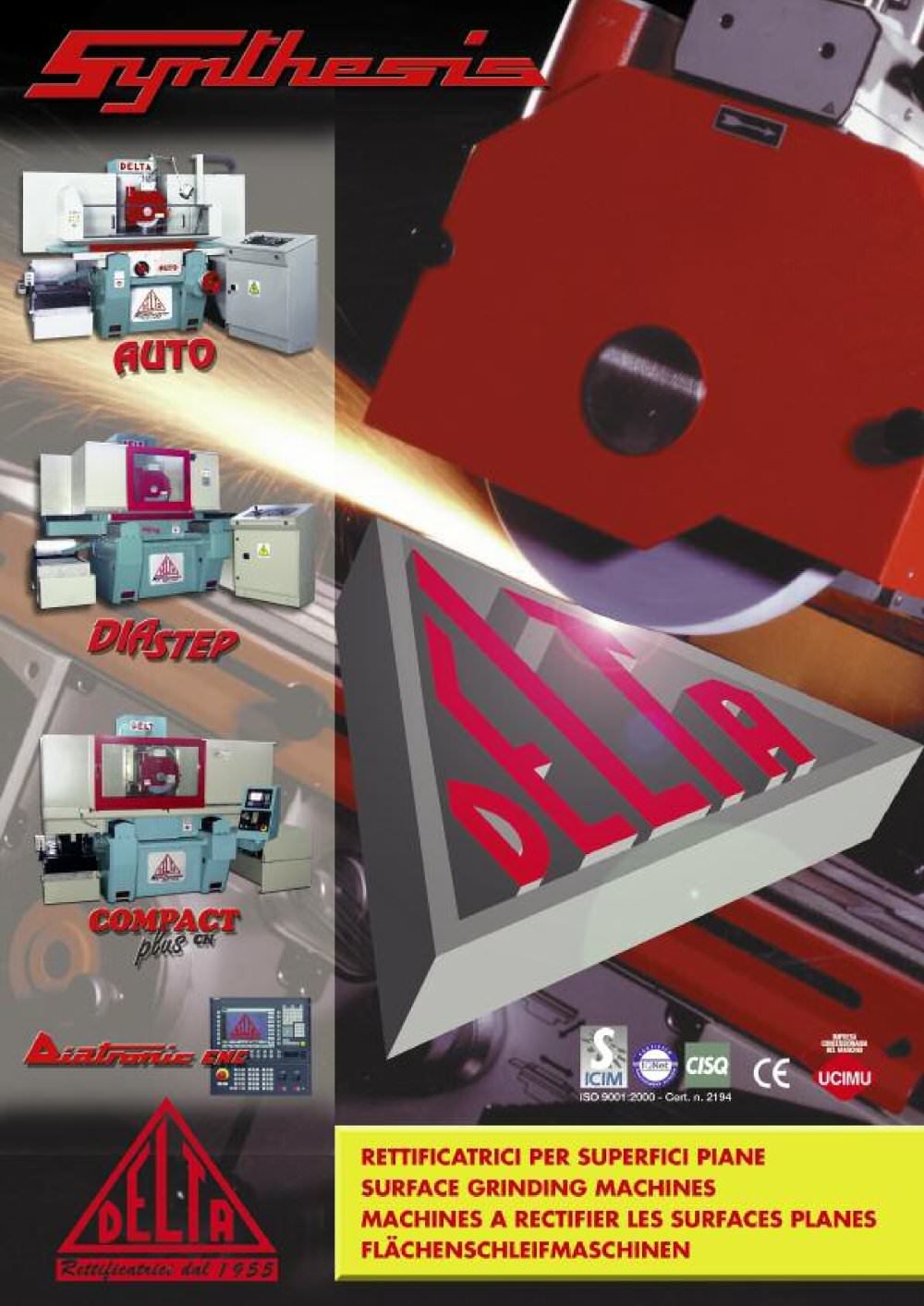

Overview: The document details horizontal spindle grinding machines with four automation levels, focusing on their construction, features, and control systems.

Machine Construction: Constructed from oversized Meehanite cast iron, these machines ensure maximum rigidity through finite element verification. They feature hydrostatic lubrication for smooth, wear-free movements and maintain precision with ISO 3 ground ball screws and preloaded nuts.

Standard Equipment: Includes a proportional system for table movement, a hydraulic linear profiling device, quick feed devices, an air/oil heat exchanger, and safety guards made of Lexan and aluminum.

COMPACT PLUS Control System: This NC unit simplifies complex grinding operations with a color LCD screen and customized keypad. It visualizes all axes, supports axis interpolation, and allows parameter adjustments during cycles, with diagnostic and warning messages for operator assistance.

DIASTEP Device: Features a programmable display and controls for a motorized linear dresser, managing all machine functions and supporting automatic grinding cycles with parameter changes without cycle interruption.

Safety and Design: High safety guards with sliding doors and interlocking systems ensure maximum safety and operational visibility.

Specifications and Features: Advanced grinding machines with DIASTEP and DIATRONIC control units enhance automation and flexibility, supporting various grinding modes and maintaining constant cutting speed relative to wheel diameter.

DIATRONIC Control Unit: Offers superior automation with axis interpolation for wheel profiling and special grinding cycles, expandable for additional axes. The graphic menu simplifies parameter input, with additional screen pages for control.

Accessories: Includes a hydraulic oil cooling system, vertical grinding attachment, halogen lamp, industrial diamond, mechanical cleaner, magnetic separator, dust extractor, grinding wheel, and electronic wheel balancing.

Technical Specifications: Details such as minimum programmable vertical feed and wheel motor power emphasize machine precision and capability.

Contact Information: DELTA s.p.a. is located in Cura Carpignano, Italy, with contact details for inquiries.
