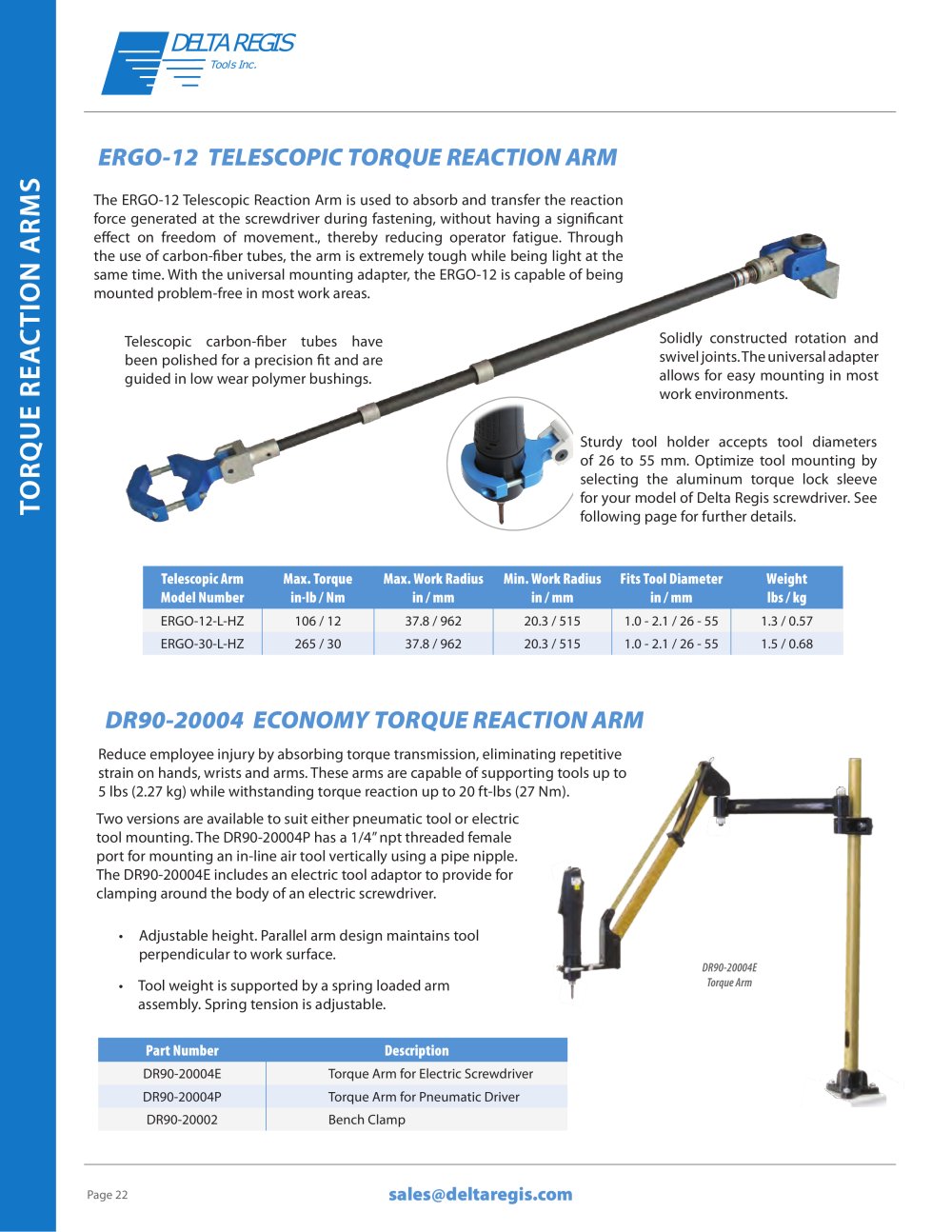

Telescopic carbon-fiber tubes have been polished for a precision fit and are guided in low wear polymer bushings.TORQUE REACTION ARMS DELTA REGISTools Inc. sales@deltaregis.com ERGO-12 TELESCOPIC TORQUE REACTION ARM The ERGO-12 Telescopic Reaction Arm is used to absorb and transfer the reaction force generated at the screwdriver during fastening, without having a significant effect on freedom of movement., thereby reducing operator fatigue. Through the use of carbon-fiber tubes, the arm is extremely tough while being light at the same time. With the universal mounting adapter, the ERGO-12 is capable of being mounted problem-free in most work areas. Telescopic Arm Model Number Max. Torque in-lb / Nm Max. Work Radius in / mm Min. Work Radius in / mm Fits Tool Diameter in / mm Weight lbs / kg ERGO-12-L-HZ 106 / 12 37.8 / 962 20.3 / 515 1.0 - 2.1 / 26 - 55 1.3 / 0.57 ERGO-30-L-HZ 265 / 30 37.8 / 962 20.3 / 515 1.0 - 2.1 / 26 - 55 1.5 / 0.68 Solidly constructed rotation and swivel joints. The universal adapter allows for easy mounting in most work environments. Page 22 Sturdy tool holder accepts tool diameters of 26 to 55 mm. Optimize tool mounting by selecting the aluminum torque lock sleeve for your model of Delta Regis screwdriver. See following page for further details. DR90-20004E Torque Arm Reduce employee injury by absorbing torque transmission, eliminating repetitive strain on hands, wrists and arms. These arms are capable of supporting tools up to 5 lbs (2.27 kg) while withstanding torque reaction up to 20 ft-lbs (27 Nm). • Adjustable height. Parallel arm design maintains tool perpendicular to work surface. • Tool weight is supported by a spring loaded arm assembly. Spring tension is adjustable. Part Number Description DR90-20004E Torque Arm for Electric Screwdriver DR90-20004P Torque Arm for Pneumatic Driver DR90-20002 Bench Clamp DR90-20004 ECONOMY TORQUE REACTION ARM Two versions are available to suit either pneumatic tool or electric tool mounting. The DR90-20004P has a 1/4” npt threaded female port for mounting an in-line air tool vertically using a pipe nipple. The DR90-20004E includes an electric tool adaptor to provide for clamping around the body of an electric screwdriver.

PRECISION PARALLEL TORQUE ARM www.deltaregis.com Phone: 772-465-4302 Toll Free: 888-500-2755 Page 23 Model Height Stroke vertical Work radius Torque max. Tool Weight max. Accepts Tool Diameter Torque Arm Weight in / mm in / mm in / mm ft-lb / Nm lb / kg in / mm lb / kg ERGO-25 23 / 584 17.9 / 456 31.5 / 800 18.5 / 25 4.4 / 2.0 1.0-2.2 / 26-55 16 / 7.2 ERGO-25-4 23 / 584 21.6 / 550 31.5 / 800 18.5 / 25 8.8 / 4.0 1.0-2.2 / 26-55 21 / 9.5 ERGO-25 PRECISION PARALLEL TORQUE ARM The ERGO-25 Parallel Torque Arm is designed to maintain a power tool in a vertical attitude. The pneumatic lift...

TOOL STAND AND BALANCERS DELTA REGISTools Inc. sales@deltaregis.com Page 24 DR90-30001 TOOL STAND DR90-30001 Tool Stand Using a tool balancer in conjunction with a tool stand will keep your screwdriver at the ready, leaving your work area clear when not in use. The DR90-30001 tool stand fastens directly to your workbench (screws req’d). An optional extra arm kit can be used to suspend two tools from the same stand. DR90-3ARMKIT Extra Arm Kit (includes slider and hanger) Part Number Description DR90-30001 Tool Stand - 110 cm high, 60 cm reach, 4 kg maximum load DR90-3ARMKIT Extra Arm Kit -...

ERGO-SYS TOOL SUPPORT SYSTEM www.deltaregis.com Phone: 772-465-4302 Toll Free: 888-500-2755 Page 25 For excellent tool support combined with tool torque reaction capability, choose the Delta Regis ERGO-SYS Tool Support System. Each system includes the following: (1) DR90-30001 Tool Stand (1) ERGO-12-L-HZ Torque Reaction Arm (1) DR90-1010_ Tool Balancer* System Part No Includes Balancer Supports Tool Weight ERGO-SYS-1 DR90-10101 0.5 - 1.0 lbs ERGO-SYS-3 DR90-10103 1.0 - 2.5 lbs ERGO-SYS-5 DR90-10105 2.5 - 4.5 lbs ERGO-SYS TOOL SUPPORT SYSTEM *Select the system with the balancer that best...
