Premium Brushless Electric Screwdrivers - 40VDC - Torque Range 0.98 NM - 15.0 NM

Product catalog summary

Overview: The document provides detailed specifications and accessory options for Delta Regis 40V DC Brushless Screwdrivers, designed for applications requiring high torque capabilities.

Specifications: The screwdrivers are categorized by body style: Inline, Handheld or Fixture Mount, and Pistol Grip. Key specifications include torque range (up to 15 Nm), speed (RPM), screwdriver bit type, dimensions, and weight. Models are available with lever or push start types.

Inline Body Style: Models ESL628 to ESL650PM offer torque ranges from 8.9 to 132.8 In.Lbs (0.98 to 15 Nm) and speeds from 350 to 2000 RPM. They feature a 1/4” hex bit type and are suitable for handheld or fixture mounting.

Pistol Grip Body Style: Models ESP620 to ESP650 provide similar torque and speed specifications, with a standard cable connection at the bottom of the handle.

Accessories: The document lists various accessories including the BECT640 controller for higher torque models, adjustable slow-start modules, torque lock sleeves, angle heads, tool holsters, and pistol grips. Additional accessories like tool stands, balancers, and torque testers are also mentioned.

Controllers: The BECT640 controller is designed for all 40V DC brushless models, providing single outlet and 6-pin tool connector. The ECT6-SSOB module adds adjustable slow-start and output signal capabilities.

Additional Information: The document includes part numbers for accessories and provides guidance on selecting appropriate tools and accessories for specific applications.

Catalog excerpts

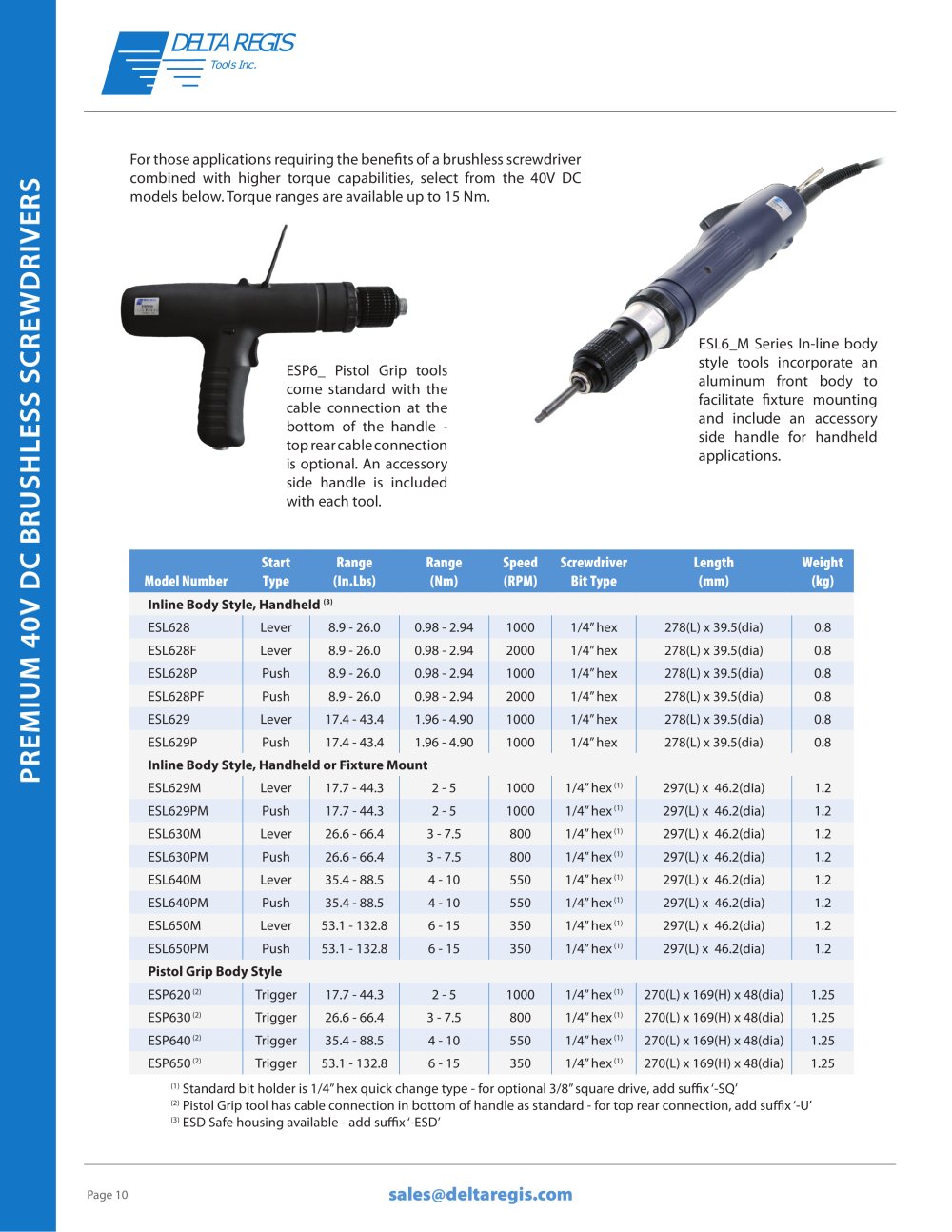

Premium Brushless Electric Screwdrivers - 40VDC - Torque Range 0.98 NM - 15.0 NM-1

PREMIUM 40V DC BRUSHLESS SCREWDRIVERS DELTA REGISTools Inc. [email protected] Page 10 Model Number Start Type Range (In.Lbs) Range (Nm) Speed (RPM) Screwdriver Bit Type Length (mm) Weight (kg) Inline Body Style, Handheld (3) ESL628 Lever 8.9 - 26.0 0.98 - 2.94 1000 1/4” hex 278(L) x 39.5(dia) 0.8 ESL628F Lever 8.9 - 26.0 0.98 - 2.94 2000 1/4” hex 278(L) x 39.5(dia) 0.8 ESL628P Push 8.9 - 26.0 0.98 - 2.94 1000 1/4” hex 278(L) x 39.5(dia) 0.8 ESL628PF Push 8.9 - 26.0 0.98 - 2.94 2000 1/4” hex 278(L) x 39.5(dia) 0.8 ESL629 Lever 17.4 - 43.4 1.96 - 4.90 1000 1/4” hex 278(L) x 39.5(dia) 0.8 ESL629P Push 17.4 - 43.4 1.96 - 4.90 1000 1/4” hex 278(L) x 39.5(dia) 0.8 Inline Body Style, Handheld or Fixture Mount ESL629M Lever 17.7 - 44.3 2 - 5 1000 1/4” hex (1) 297(L) x 46.2(dia) 1.2 ESL629PM Push 17.7 - 44.3 2 - 5 1000 1/4” hex (1) 297(L) x 46.2(dia) 1.2 ESL630M Lever 26.6 - 66.4 3 - 7.5 800 1/4” hex (1) 297(L) x 46.2(dia) 1.2 ESL630PM Push 26.6 - 66.4 3 - 7.5 800 1/4” hex (1) 297(L) x 46.2(dia) 1.2 ESL640M Lever 35.4 - 88.5 4 - 10 550 1/4” hex (1) 297(L) x 46.2(dia) 1.2 ESL640PM Push 35.4 - 88.5 4 - 10 550 1/4” hex (1) 297(L) x 46.2(dia) 1.2 ESL650M Lever 53.1 - 132.8 6 - 15 350 1/4” hex (1) 297(L) x 46.2(dia) 1.2 ESL650PM Push 53.1 - 132.8 6 - 15 350 1/4” hex (1) 297(L) x 46.2(dia) 1.2 Pistol Grip Body Style ESP620 (2) Trigger 17.7 - 44.3 2 - 5 1000 1/4” hex (1) 270(L) x 169(H) x 48(dia) 1.25 ESP630 (2) Trigger 26.6 - 66.4 3 - 7.5 800 1/4” hex (1) 270(L) x 169(H) x 48(dia) 1.25 ESP640 (2) Trigger 35.4 - 88.5 4 - 10 550 1/4” hex (1) 270(L) x 169(H) x 48(dia) 1.25 ESP650 (2) Trigger 53.1 - 132.8 6 - 15 350 1/4” hex (1) 270(L) x 169(H) x 48(dia) 1.25 (1) Standard bit holder is 1/4” hex quick change type - for optional 3/8” square drive, add suffix ‘-SQ’ (2) Pistol Grip tool has cable connection in bottom of handle as standard - for top rear connection, add suffix ‘-U’ (3) ESD Safe housing available - add suffix ‘-ESD’ For those applications requiring the benefits of a brushless screwdriver combined with higher torque capabilities, select from the 40V DC models below. Torque ranges are available up to 15 Nm. ESL6_M Series In-line body style tools incorporate an aluminum front body to facilitate fixture mounting and include an accessory side handle for handheld applications. ESP6_ Pistol Grip tools come standard with the cable connection at the bottom of the handle - top rear cable connection is optional. An accessory side handle is included with each tool.

Open the catalog to page 1

Premium Brushless Electric Screwdrivers - 40VDC - Torque Range 0.98 NM - 15.0 NM-2

40V DC BRUSHLESS ACCESSORIES www.deltaregis.com Phone: 772-465-4302 Toll Free: 888-500-2755 Page 11 40V DC Brushless Driver Accessories Model BECT640 is a powerful controller designed specifically to run the higher torque 40 V DC ‘600 Series’ Brushless Screwdrivers. It is used with tool models ESL628(F/P/PF) thru ESL650M(PM) and models ESP620-650. CE/RoHS/ETL Approved. Model Number Outlets Speeds Tool Connector Output Input Dimensions L x W x H (mm) Weight (kg) Use only with Screwdriver Models BECT640 1 Single 6 pin 40V DC 100-240V AC 210 x 118 x 85 1.8 All 40V DC Brushless Power supply shipped...

Open the catalog to page 2
