Premium Brushless Electric Screwdrivers - 32VDC - Torque Range 0.02 NM - 1.86 NM

Product catalog summary

Overview: The document provides detailed specifications and features of the Premium 600 Series Brushless Screwdrivers by Delta Regis Tools Inc. These screwdrivers are designed for precision, performance, and environmental cleanliness, featuring a brushless DC motor that reduces carbon dust and heat build-up.

Specifications: The screwdrivers come in various models with different torque ranges, speeds, and bit types. For example, the ESL610-ESD model has a torque range of 0.2 - 3.1 In.Lbs (0.02 - 0.35 Nm) and speeds of 1000 RPM (Hi) and 700 RPM (Lo). All models are equipped with a 32V DC motor and are ESD safe.

Features: Key features include precise torque control, low torque reaction, compact design for maneuverability, and a brushless motor for low maintenance and higher duty cycle capabilities. The tools are CE and RoHS compliant.

Controllers and Accessories: The document lists compatible controllers like the BECT620 and BECT620I, which are lightweight and approved for use with these screwdrivers. Accessories include torque lock sleeves, angle heads, tool holsters, pistol grips, and tool balancers. The ECT6-SSOA control module adds adjustable slow-start and output signal capabilities.

Usage and Compatibility: The screwdrivers can be used with various controllers and accessories for enhanced functionality, such as batch counting and input/output interfacing with external equipment. Specific models are recommended for different applications based on their torque and speed capabilities.

Catalog excerpts

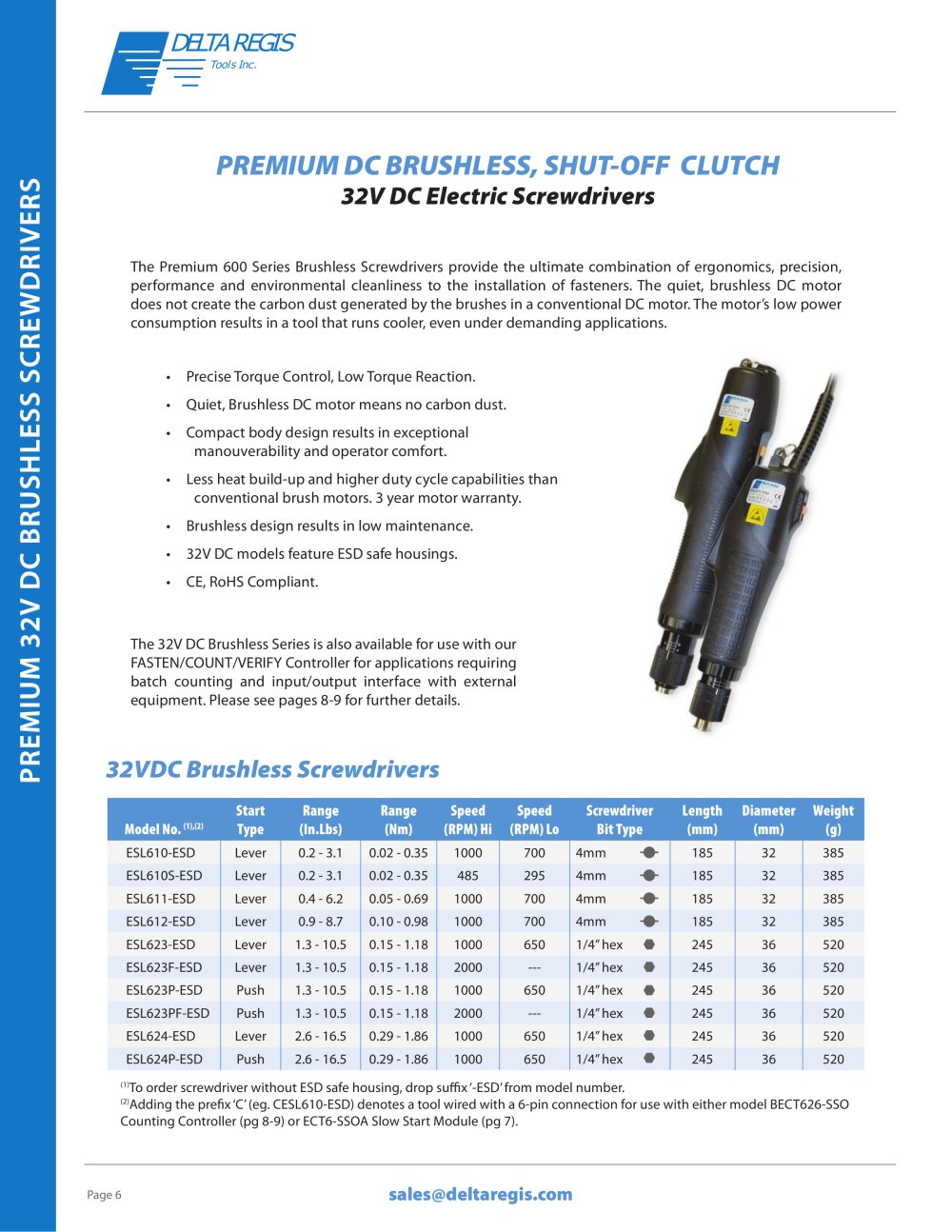

Premium Brushless Electric Screwdrivers - 32VDC - Torque Range 0.02 NM - 1.86 NM-1

Model No. (1),(2) Start Type Range (In.Lbs) Range (Nm) Speed (RPM) Hi Speed (RPM) Lo Screwdriver Bit Type Length (mm) Diameter (mm) Weight (g) ESL610-ESD Lever 0.2 - 3.1 0.02 - 0.35 1000 700 4mm 185 32 385 ESL610S-ESD Lever 0.2 - 3.1 0.02 - 0.35 485 295 4mm 185 32 385 ESL611-ESD Lever 0.4 - 6.2 0.05 - 0.69 1000 700 4mm 185 32 385 ESL612-ESD Lever 0.9 - 8.7 0.10 - 0.98 1000 700 4mm 185 32 385 ESL623-ESD Lever 1.3 - 10.5 0.15 - 1.18 1000 650 1/4” hex 245 36 520 ESL623F-ESD Lever 1.3 - 10.5 0.15 - 1.18 2000 --- 1/4” hex 245 36 520 ESL623P-ESD Push 1.3 - 10.5 0.15 - 1.18 1000 650 1/4” hex 245 36 520 ESL623PF-ESD Push 1.3 - 10.5 0.15 - 1.18 2000 --- 1/4” hex 245 36 520 ESL624-ESD Lever 2.6 - 16.5 0.29 - 1.86 1000 650 1/4” hex 245 36 520 ESL624P-ESD Push 2.6 - 16.5 0.29 - 1.86 1000 650 1/4” hex 245 36 520 PREMIUM DC BRUSHLESS, SHUT-OFF CLUTCH 32V DC Electric Screwdrivers The Premium 600 Series Brushless Screwdrivers provide the ultimate combination of ergonomics, precision, performance and environmental cleanliness to the installation of fasteners. The quiet, brushless DC motor does not create the carbon dust generated by the brushes in a conventional DC motor. The motor’s low power consumption results in a tool that runs cooler, even under demanding applications. • Precise Torque Control, Low Torque Reaction. • Quiet, Brushless DC motor means no carbon dust. • Compact body design results in exceptional manouverability and operator comfort. • Less heat build-up and higher duty cycle capabilities than conventional brush motors. 3 year motor warranty. • Brushless design results in low maintenance. • 32V DC models feature ESD safe housings. • CE, RoHS Compliant. PREMIUM 32V DC BRUSHLESS SCREWDRIVERS DELTA REGIS Tools Inc. Page 6 [email protected] 32VDC Brushless Screwdrivers (1)To order screwdriver without ESD safe housing, drop suffix ‘-ESD’ from model number. (2)Adding the prefix ‘C’ (eg. CESL610-ESD) denotes a tool wired with a 6-pin connection for use with either model BECT626-SSO Counting Controller (pg 8-9) or ECT6-SSOA Slow Start Module (pg 7). The 32V DC Brushless Series is also available for use with our FASTEN/COUNT/VERIFY Controller for applications requiring batch counting and input/output interface with external equipment. Please see pages 8-9 for further details.

Open the catalog to page 1

Premium Brushless Electric Screwdrivers - 32VDC - Torque Range 0.02 NM - 1.86 NM-2

32V DC BRUSHLESS ACCESSORIES Accessories www.deltaregis.com Phone: 772-465-4302 Toll Free: 888-500-2755 Page 7 32VDC Brushless Driver Accessories These controllers are specifically for use with 32V DC ‘600 Series’ Brushless Tools. Select the appropriate controller for your screwdriver model. CE/RoHS/ETL Approved. BECT620 and BECT620I models are compact, lightweight controllers. The more powerful BECT620I is recommended for use with fast tool models ESL623F/PF. Model Number Outlets Speeds Tool Connector Output Input Dimensions L x W x H (mm) Weight (kg) Use only with Screwdriver Models BECT620...
