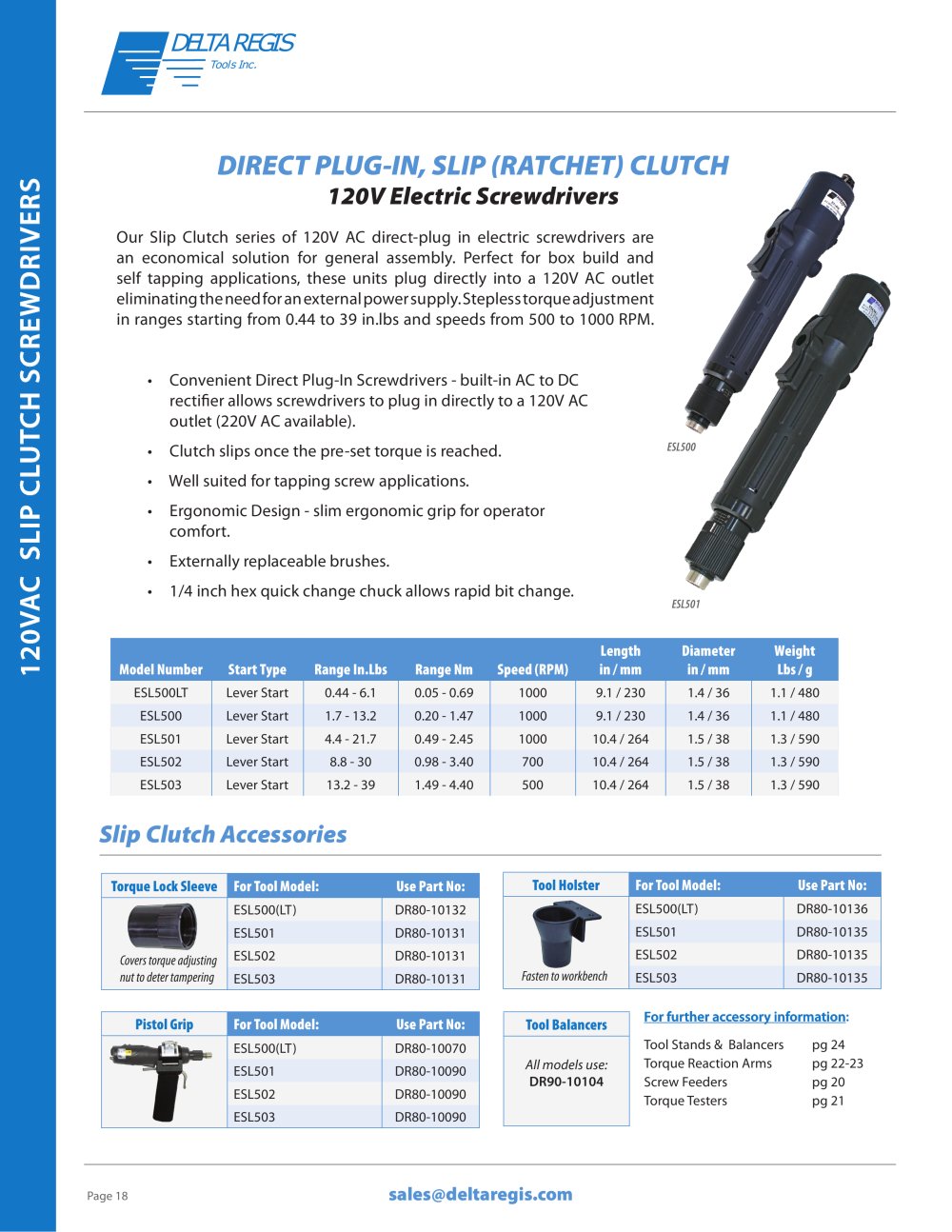

Direct Plug-In 120 VAC Slip (Ratchet) Clutch Electric Screwdrivers
2Pages

DIRECT PLUG-IN, SLIP (RATCHET) CLUTCH 120V Electric Screwdrivers120VAC SLIP CLUTCH SCREWDRIVERS DELTA REGISTools Inc. sales@deltaregis.com Model Number Start Type Range In.Lbs Range Nm Speed (RPM) Length in / mm Diameter in / mm Weight Lbs / g ESL500LT Lever Start 0.44 - 6.1 0.05 - 0.69 1000 9.1 / 230 1.4 / 36 1.1 / 480 ESL500 Lever Start 1.7 - 13.2 0.20 - 1.47 1000 9.1 / 230 1.4 / 36 1.1 / 480 ESL501 Lever Start 4.4 - 21.7 0.49 - 2.45 1000 10.4 / 264 1.5 / 38 1.3 / 590 ESL502 Lever Start 8.8 - 30 0.98 - 3.40 700 10.4 / 264 1.5 / 38 1.3 / 590 ESL503 Lever Start 13.2 - 39 1.49 - 4.40 500 10.4 / 264 1.5 / 38 1.3 / 590 Our Slip Clutch series of 120V AC direct-plug in electric screwdrivers are an economical solution for general assembly. Perfect for box build and self tapping applications, these units plug directly into a 120V AC outlet eliminating the need for an external power supply. Stepless torque adjustment in ranges starting from 0.44 to 39 in.lbs and speeds from 500 to 1000 RPM. • Convenient Direct Plug-In Screwdrivers - built-in AC to DC rectifier allows screwdrivers to plug in directly to a 120V AC outlet (220V AC available). • Clutch slips once the pre-set torque is reached. • Well suited for tapping screw applications. • Ergonomic Design - slim ergonomic grip for operator comfort. • Externally replaceable brushes. • 1/4 inch hex quick change chuck allows rapid bit change. ESL501 ESL500 Torque Lock Sleeve For Tool Model: Use Part No: Covers torque adjusting nut to deter tampering ESL500(LT) DR80-10132 ESL501 DR80-10131 ESL502 DR80-10131 ESL503 DR80-10131 Tool Holster For Tool Model: Use Part No: Fasten to workbench ESL500(LT) DR80-10136 ESL501 DR80-10135 ESL502 DR80-10135 ESL503 DR80-10135 Slip Clutch Accessories Pistol Grip For Tool Model: Use Part No: ESL500(LT) DR80-10070 ESL501 DR80-10090 ESL502 DR80-10090 ESL503 DR80-10090For further accessory information: Tool Stands & Balancers pg 24 Torque Reaction Arms pg 22-23 Screw Feeders pg 20 Torque Testers pg 21 Tool Balancers All models use: DR90-10104 Page 18
