Direct Plug-In - 120 VAC / 220 VAC - Shut-Off Clutch Screwdrivers

Product catalog summary

Overview: The Delta Regis 300 and 380 Series electric screwdrivers are designed for industrial manufacturing, offering precise torque control and ergonomic design. These tools are available in both 120V and 220V models, catering to different regional requirements.

Key Features:

Direct Plug-In Design: Eliminates the need for an external power supply, with internal power and control circuitry.
Torque Control: Stepless torque adjustment ranging from 0.15 to 4.4 Nm, with a shut-off feature once the preset torque is reached.
Ergonomic Design: Rubberized grip for operator comfort and reduced fatigue.
Maintenance: Externally replaceable brushes for easy maintenance.
Quick Change Chuck: 1/4 inch hex quick change chuck for rapid bit changes.

Specifications:

Input Voltage: 110-120V AC or 220-240V AC, 50/60Hz.
AC Plug Type: 3 prong grounded for 120V, Euro plug for 220V.
Models: Available in lever or push start types with varying torque ranges and speeds.

Model Details:

ESL300/300P: Torque range 0.15 - 1.18 Nm, speed 1000 RPM.
ESL301/301P: Torque range 0.29 - 1.86 Nm, speed 1000 RPM.
ESL302/302P: Torque range 1.47 - 4.41 Nm, speed 500 RPM.
ESL383E/PE: Torque range 0.50 - 2.16 Nm, speed 1000 RPM.
ESL384E/PE: Torque range 0.98 - 2.94 Nm, speed 700 RPM.
ESL385E/PE: Torque range 1.47 - 4.41 Nm, speed 500 RPM.

Accessories:

Tool Holsters: Available for various models for secure storage.
Angle Heads: 90-degree attachments for specific models.
Pistol Grips: Available for enhanced handling.
Torque Lock Sleeves: Prevents tampering with torque settings.

Compliance: The 220V models conform to CE and RoHS standards, ensuring safety and environmental compliance.

Catalog excerpts

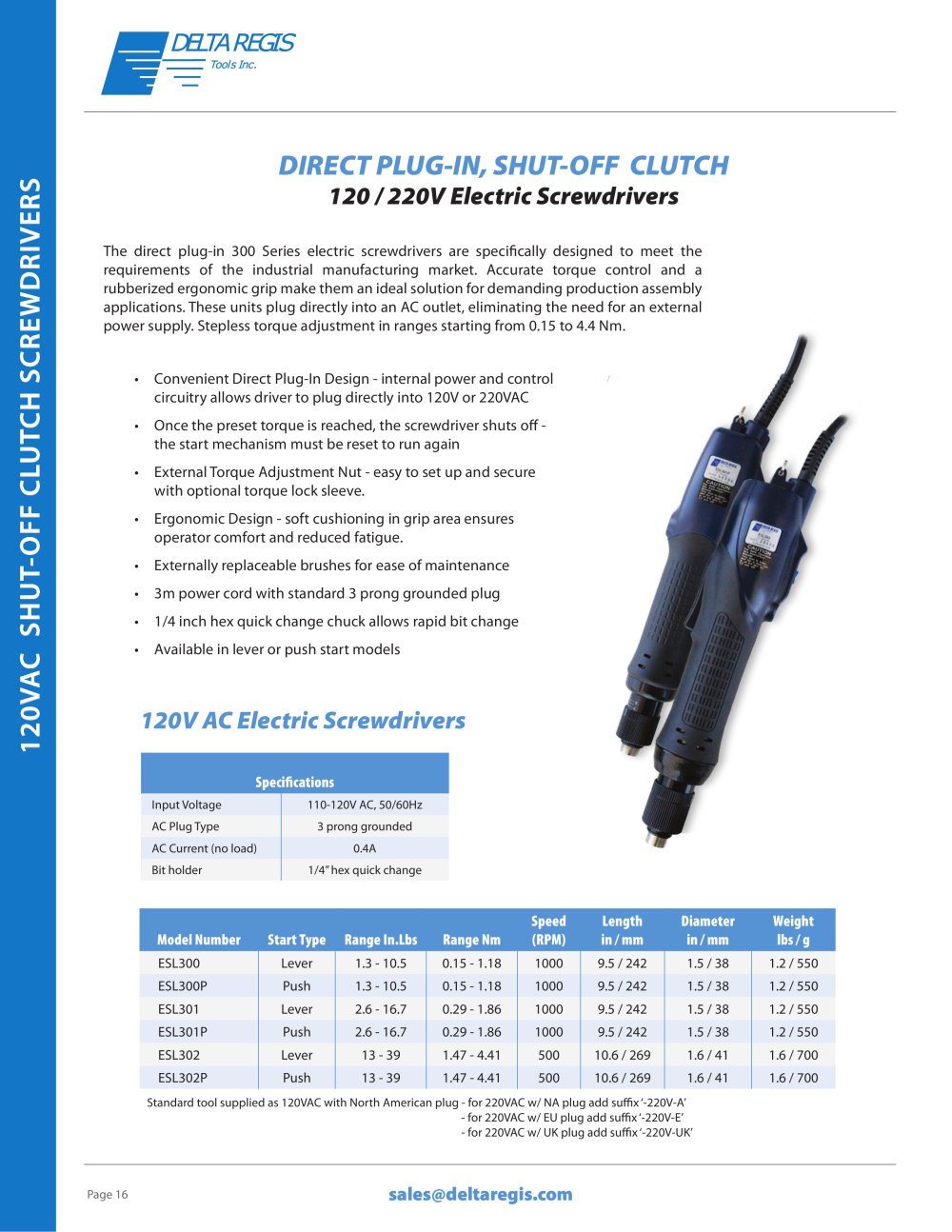

Direct Plug-In - 120 VAC / 220 VAC - Shut-Off Clutch Screwdrivers-1

DELTA REGISTools Inc. 120VAC SHUT-OFF CLUTCH SCREWDRIVERS DIRECT PLUG-IN, SHUT-OFF CLUTCH 120 / 220V Electric Screwdrivers [email protected] Page 16 The direct plug-in 300 Series electric screwdrivers are specifically designed to meet the requirements of the industrial manufacturing market. Accurate torque control and a rubberized ergonomic grip make them an ideal solution for demanding production assembly applications. These units plug directly into an AC outlet, eliminating the need for an external power supply. Stepless torque adjustment in ranges starting from 0.15 to 4.4 Nm. • Convenient Direct Plug-In Design - internal power and control circuitry allows driver to plug directly into 120V or 220VAC • Once the preset torque is reached, the screwdriver shuts off - the start mechanism must be reset to run again • External Torque Adjustment Nut - easy to set up and secure with optional torque lock sleeve. • Ergonomic Design - soft cushioning in grip area ensures operator comfort and reduced fatigue. • Externally replaceable brushes for ease of maintenance • 3m power cord with standard 3 prong grounded plug • 1/4 inch hex quick change chuck allows rapid bit change • Available in lever or push start models Specifications Input Voltage 110-120V AC, 50/60Hz AC Plug Type 3 prong grounded AC Current (no load) 0.4A Bit holder 1/4” hex quick change Model Number Start Type Range In.Lbs Range Nm Speed (RPM) Length in / mm Diameter in / mm Weight lbs / g ESL300 Lever 1.3 - 10.5 0.15 - 1.18 1000 9.5 / 242 1.5 / 38 1.2 / 550 ESL300P Push 1.3 - 10.5 0.15 - 1.18 1000 9.5 / 242 1.5 / 38 1.2 / 550 ESL301 Lever 2.6 - 16.7 0.29 - 1.86 1000 9.5 / 242 1.5 / 38 1.2 / 550 ESL301P Push 2.6 - 16.7 0.29 - 1.86 1000 9.5 / 242 1.5 / 38 1.2 / 550 ESL302 Lever 13 - 39 1.47 - 4.41 500 10.6 / 269 1.6 / 41 1.6 / 700 ESL302P Push 13 - 39 1.47 - 4.41 500 10.6 / 269 1.6 / 41 1.6 / 700120VAC 120V AC Electric Screwdrivers Standard tool supplied as 120VAC with North American plug - for 220VAC w/ NA plug add suffix ‘-220V-A’ - for 220VAC w/ EU plug add suffix ‘-220V-E’ - for 220VAC w/ UK plug add suffix ‘-220V-UK’

Open the catalog to page 1

Direct Plug-In - 120 VAC / 220 VAC - Shut-Off Clutch Screwdrivers-2

120VAC ACCESSORIES www.deltaregis.com Phone: 772-465-4302 Toll Free: 888-500-2755 Page 17220VAC SCREWDRIVERS / ACCESSORIES Model Number Start Type Range In.Lbs Range Nm Speed (RPM) Length in / mm Diameter in / mm Weight lbs / g ESL383E Lever 4.4 - 19 0.50 - 2.16 1000 10.6 / 269 1.6 / 41 1.6 / 700 ESL383PE Push 4.4 - 19 0.50 - 2.16 1000 10.6 / 269 1.6 / 41 1.6 / 700 ESL383FE Lever 3.5 - 15 0.39 - 1.67 1900 10.6 / 269 1.6 / 41 1.6 / 700 ESL383PFE Push 3.5 - 15 0.39 - 1.67 1900 10.6 / 269 1.6 / 41 1.6 / 700 ESL384E Lever 8.8 - 26 0.98 - 2.94 700 10.6 / 269 1.6 / 41 1.6 / 700 ESL384PE Push 8.8 -...

Open the catalog to page 2
