Product catalog summary

Warranty and Specifications: Delta Regis Tools offers a one-year warranty on products for defects in material and workmanship, with a three-year warranty on the brushless motor in the ESL600 Series screwdrivers. The warranty excludes damage from misuse or improper service. Specifications may change without notice.

Product Overview: The catalog features electric screwdrivers, torque arms, tool stands, and accessories. Key features include stepless torque adjustment, quick-change bit holders, and ergonomic designs. Screwdrivers are available in 32VDC, 40VDC, and 120VAC options, with configurations such as brushless, shut-off clutch, and slip clutch.

Electric Screwdriver Features: Designed for precision and operator comfort, the screwdrivers have cushioned grips and ESD-safe housings. Torque repeatability is +/- 3% for shut-off clutches and +/- 5% for slip clutches, though performance may vary based on joint conditions.

Accessories and Controllers: Accessories include torque lock sleeves, angle heads, tool holsters, and controllers for the 32VDC brushless series. The BECT620 and BECT626-SSO controllers offer features like slow start, batch counting, and I/O connections.

Model Specifications: Specifications include torque range, speed, bit type, and dimensions. A selection guide helps choose the appropriate model based on application needs.

Overview: The document details specifications and features of Delta Regis Tools' electric screwdrivers, focusing on 40V DC and 32V DC models, including accessories and controllers. It highlights ergonomic design, torque control, and configurations for industrial applications.

Specifications: Models are categorized by body style (Inline and Pistol Grip) and start type (Lever, Push, Trigger), with details on torque range, speed, dimensions, and weight. Tools are designed for precision assembly with ESD safe housings and ergonomic grips.

Controllers and Accessories: The BECT640 controller is for 40V DC brushless screwdrivers, offering adjustable slow-start and output signals. The ECT326 and ECT326V controllers are for 32V DC models, providing Hi/Lo or variable speed selection. Accessories enhance functionality and adaptability.

Recommendations: For higher torque applications, the 40V DC models are recommended. Torque reaction arms are advised for safety and efficiency.

Compliance and Safety: All models comply with CE, RoHS, and ETL standards, emphasizing safety and environmental responsibility. ESD safe housings protect sensitive electronic components.

Additional Features: Direct plug-in models for 120/220V AC eliminate the need for external power supplies, offering stepless torque adjustment for demanding environments.

Specifications: Detailed specifications for 120V and 220V AC models include torque ranges, speeds, and weights, with models tailored for lever or push start types. Tools comply with CE standards and come with various plug types.

Procedures and Usage: The document outlines the use of electric screwdrivers for general assembly, emphasizing direct plug-in capability, ergonomic design, and stepless torque adjustment. Correct torque usage ensures secure fastening and easy loosening.

Accessories and Tools: Accessories include tool holsters, angle heads, pistol grips, and torque lock sleeves, enhancing functionality and ease of use. Tool stands, balancers, and torque reaction arms reduce operator fatigue and improve precision.

Torque Testing and Calibration: The DRBT Series torque tester sets and verifies torque output, featuring a wide measuring range, selectable units, and storage for torque readings.

Recommendations: Use appropriate accessories and tools to optimize performance. Regular calibration and verification of torque settings maintain accuracy and reliability.

Key Data from Tables: Tables provide data on model numbers, torque ranges, speeds, dimensions, and weights, crucial for selecting the right tool for specific applications.

Tool Balancers and Support Systems: Detailed specifications of tool balancers and support systems are provided. Tool balancers maintain a clear work area with tension adjustments for different tool sizes.

ERGO-SYS Tool Support System: The system includes a tool stand, torque reaction arm, and tool balancer, categorized by tool weight support, with optional accessories available.

Accessories: Additional accessories like the DR80-VAC Vacuum Pickup Attachment and various screwdriver bits and holders are available. The vacuum attachment is for non-ferrous fasteners and can be combined with a screw feeder.

Torque Reference Information: Tables of suggested torque values for different materials and metric fasteners are included, with a note that actual torque should be determined through engineering analysis. Conversion factors for torque measurements are provided.

Contact Information: For further details, part numbers, and quotations, contact Delta Regis through their website or provided phone numbers.

Catalog excerpts

Tools Inc.DELTA REGIS

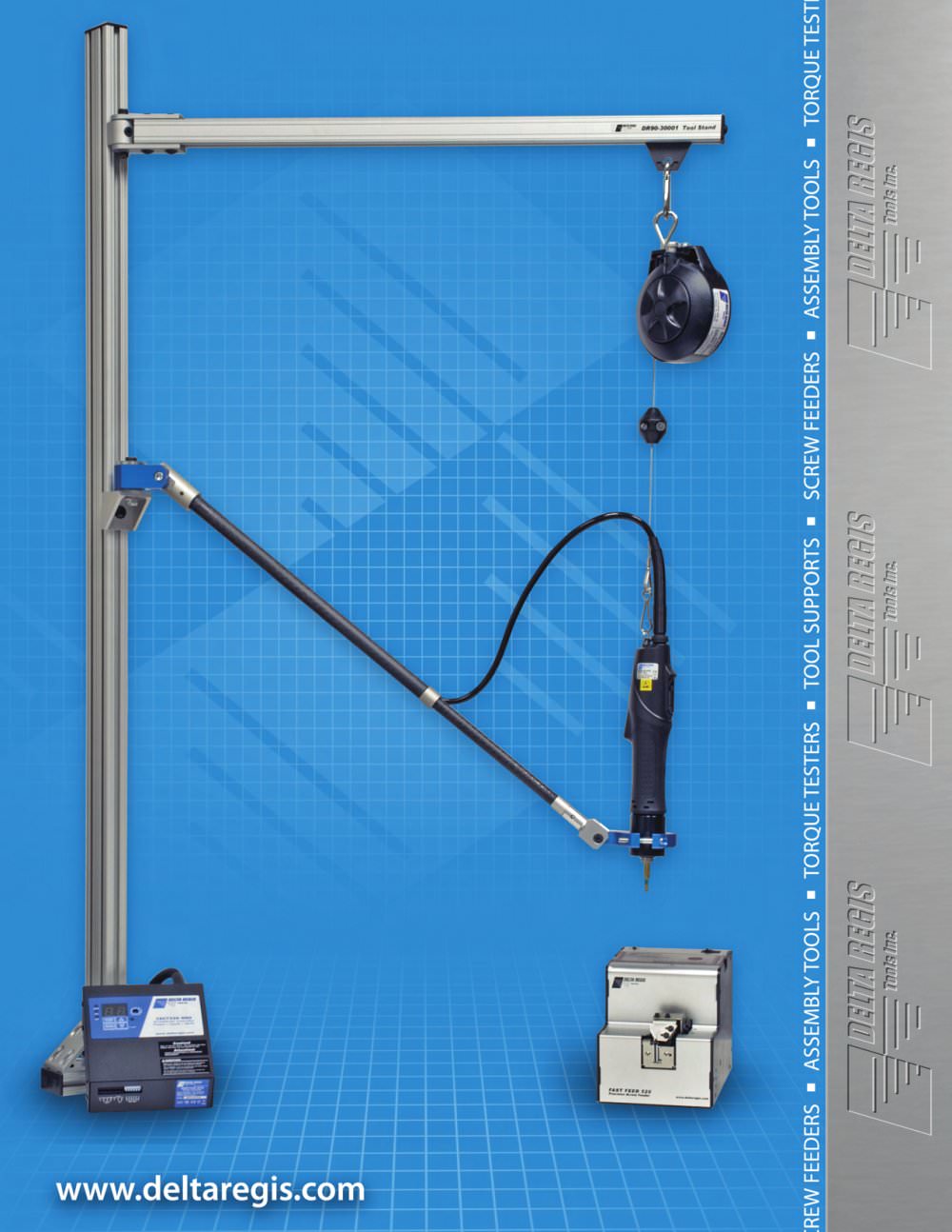

Open the catalog to page 1

Efforts have been made to ensure the accuracy of the information and specifications in this catalog. Delta Regis Tools reserves the right to correct or change any specifications found herein without further notification. Please contact us if you have any questions, concerns, or would like to discuss the details of an application. We are available to assist in any way that we can. Delta Regis products are warranted for one year from the date of purchase against defects in material and workmanship. In addition, the brushless motor in the ESL600 Series screwdrivers is warranted for three years from...

Open the catalog to page 2

Page ERGO-12 / 30 Telescopic Torque Reaction Arm 12 or 30 Nm models 22 DR90-20004 Economy Torque Arm spring lift assist 22 ERGO-25 Precision Parallel Torque Arm pneumatic lift assist 23 DR90-30001 Tool Stand 24” reach 24 Tool Balancers, 0.5 - 5 lb capacity 6’ travel 24 ERGO-SYS Tool Support System stand & reaction arm 25 TOOL SUPPORTS Page DRFF-520 Adjustable Rail Screw Feeder accepts 1-5mm dia. 20 DRBT Bench Torque Tester w/rundown joints 21 Screwdriver Vacuum Pickup Attachment for non-ferrous apps. 26 Screwdriver Bits and Bit Holders details on website 26 TORQUE TESTERS, SCREW FEEDERS, ACCESSORIES...

Open the catalog to page 3

DELTA REGISTools Inc.ELECTRIC SCREWDRIVER FEATURES [email protected] Page 4 Suspension bail allows for hanging tool from tool balancer for improved ergonomics and tool life. Stepless external torque adjustment includes scale (0-8) for reference purposes (scale does not indicate actual torque value). Quick change 1/4” hex bit holder accepts industrial power bits (all models except ESL610-612 which has a 4mm round bit holder). All models have a forward/reverse switch located conveniently for thumb operation. Tools with brush type motors have externally replaceable carbon brushes accessible via...

Open the catalog to page 4

Model No. (1),(2) Start Type Range (In.Lbs) Range (Nm) Speed (RPM) Hi Speed (RPM) Lo Screwdriver Bit Type Length (mm) Diameter (mm) Weight (g) ESL610-ESD Lever 0.2 - 3.1 0.02 - 0.35 1000 700 4mm 185 32 385 ESL610S-ESD Lever 0.2 - 3.1 0.02 - 0.35 485 295 4mm 185 32 385 ESL611-ESD Lever 0.4 - 6.2 0.05 - 0.69 1000 700 4mm 185 32 385 ESL612-ESD Lever 0.9 - 8.7 0.10 - 0.98 1000 700 4mm 185 32 385 ESL623-ESD Lever 1.3 - 10.5 0.15 - 1.18 1000 650 1/4” hex 245 36 520 ESL623F-ESD Lever 1.3 - 10.5 0.15 - 1.18 2000 --- 1/4” hex 245 36 520 ESL623P-ESD Push 1.3 - 10.5 0.15 - 1.18 1000 650 1/4” hex 245 36...

Open the catalog to page 6

32V DC BRUSHLESS ACCESSORIES Accessories www.deltaregis.com Phone: 772-465-4302 Toll Free: 888-500-2755 Page 7 32VDC Brushless Driver Accessories These controllers are specifically for use with 32V DC ‘600 Series’ Brushless Tools. Select the appropriate controller for your screwdriver model. CE/RoHS/ETL Approved. BECT620 and BECT620I models are compact, lightweight controllers. The more powerful BECT620I is recommended for use with fast tool models ESL623F/PF. Model Number Outlets Speeds Tool Connector Output Input Dimensions L x W x H (mm) Weight (kg) Use only with Screwdriver Models BECT620...

Open the catalog to page 7

COUNTING CONTROLLER w/ BRUSHLESS 32V DC DRIVERS Fasten | Count | VerifyCESL6 BRUSHLESS COUNTING SERIES DELTA REGISTools Inc. [email protected] We’ve modified our Premium 32V DC Brushless Screwdriver models to create the CESL6 series drivers. These drivers function exclusively with the BECT626-SSO Controller, providing the user with a host of options including slow start, batch counting, and OK/NG rundown indication based on the screwdriving cycle occurring within a predefined time window. An externally accessible I/O connection provides the user with a signal interface. Outputs (24VDC, 10mA)...

Open the catalog to page 8

Model Number Start Type Range (In.Lbs) Range (Nm) Speed (RPM) Hi Speed (RPM) Lo Screwdriver Bit Type Length (mm) Diameter (mm) Weight (g) CESL610-ESD Lever 0.2 - 3.1 0.02 - 0.35 1000 700 4mm 185 32 385 CESL611-ESD Lever 0.4 - 6.2 0.05 - 0.69 1000 700 4mm 185 32 385 CESL612-ESD Lever 0.9 - 8.7 0.10 - 0.98 1000 700 4mm 185 32 385 CESL623-ESD Lever 1.3 - 10.5 0.15 - 1.18 1000 650 1/4” hex 245 36 520 CESL623F-ESD Lever 1.3 - 10.5 0.15 - 1.18 2000 --- 1/4” hex 245 36 520 CESL623P-ESD Push 1.3 - 10.5 0.15 - 1.18 1000 650 1/4” hex 245 36 520 CESL623PF-ESD Push 1.3 - 10.5 0.15 - 1.18 2000 --- 1/4” hex...

Open the catalog to page 9

PREMIUM 40V DC BRUSHLESS SCREWDRIVERS DELTA REGISTools Inc. [email protected] Page 10 Model Number Start Type Range (In.Lbs) Range (Nm) Speed (RPM) Screwdriver Bit Type Length (mm) Weight (kg) Inline Body Style, Handheld (3) ESL628 Lever 8.9 - 26.0 0.98 - 2.94 1000 1/4” hex 278(L) x 39.5(dia) 0.8 ESL628F Lever 8.9 - 26.0 0.98 - 2.94 2000 1/4” hex 278(L) x 39.5(dia) 0.8 ESL628P Push 8.9 - 26.0 0.98 - 2.94 1000 1/4” hex 278(L) x 39.5(dia) 0.8 ESL628PF Push 8.9 - 26.0 0.98 - 2.94 2000 1/4” hex 278(L) x 39.5(dia) 0.8 ESL629 Lever 17.4 - 43.4 1.96 - 4.90 1000 1/4” hex 278(L) x 39.5(dia) 0.8 ESL629P...

Open the catalog to page 10

40V DC BRUSHLESS ACCESSORIES www.deltaregis.com Phone: 772-465-4302 Toll Free: 888-500-2755 Page 11 40V DC Brushless Driver Accessories Model BECT640 is a powerful controller designed specifically to run the higher torque 40 V DC ‘600 Series’ Brushless Screwdrivers. It is used with tool models ESL628(F/P/PF) thru ESL650M(PM) and models ESP620-650. CE/RoHS/ETL Approved. Model Number Outlets Speeds Tool Connector Output Input Dimensions L x W x H (mm) Weight (kg) Use only with Screwdriver Models BECT640 1 Single 6 pin 40V DC 100-240V AC 210 x 118 x 85 1.8 All 40V DC Brushless Power supply shipped...

Open the catalog to page 11

STANDARD DUTY 32V DC SHUT-OFF CLUTCH Electric Screwdrivers32V DC SHUT-OFF CLUTCH SCREWDRIVERS DELTA REGISTools Inc. [email protected] Solid construction and innovative design are apparent everywhere on these tools. Accurate torque control and superb ergonomics make them perfect for electronic assembly. All models feature ESD safe housings and externally replaceable brushes. Fan equipped motors and flow through ventilation keep these tools running cool - increasing tool life and operator comfort. Our low torque models are some of the smallest and lightest available, making them well suited...

Open the catalog to page 12
