Overview
The DRBT Series Bench Mount Torque Tester by Delta Regis Tools, Inc. is designed for setting and verifying the torque output of electric screwdrivers. It is suitable for use in production areas, repair shops, or quality control labs. The tester comes with two rundown joints, a battery charger, and a certificate of calibration, all housed in a protective carrying case.

Key Features

Wide torque measuring range with an accuracy of +/- 0.5% from 10-100% of full scale.
Selectable measuring units: Kgf.cm, Nm, Lbf.in.
Three measuring modes: Track, Peak, and Initial Peak.
Storage capacity for up to 800 torque readings with data output via USB connection.
Auto-zero function with a preset time between 0.5-3.0 seconds.
User-defined high/low torque limits with visual indicators (Good/NG).
Display statistics for Min, Max, and Average torque for the last group of rundowns (up to 30 data points).
Internal rechargeable battery with a charge time of less than 8 hours and a runtime of approximately 30 hours at full charge.
Not suitable for use with impact tools.

Specifications

Model Numbers: DRBT-10 and DRBT-100.
Torque Range: DRBT-10 (0.15-10 Kgf.cm, 0.015-1.000 Nm, 0.15-9.00 Lbf.in), DRBT-100 (1.5-100 Kgf.cm, 0.15-10 Nm, 1.5-90 Lbf.in).
Accuracy: +/- 0.5% I.V. for 10-100% FS.
Dimensions: 230 x 123 x 65 mm.
Weight: 2.0 kg.
Included Accessories: AC Adapter (115 VAC or 230 VAC Euro plug), 7.2VDC, 120mA Output, and 2 Rundown Joints.

Catalog excerpts

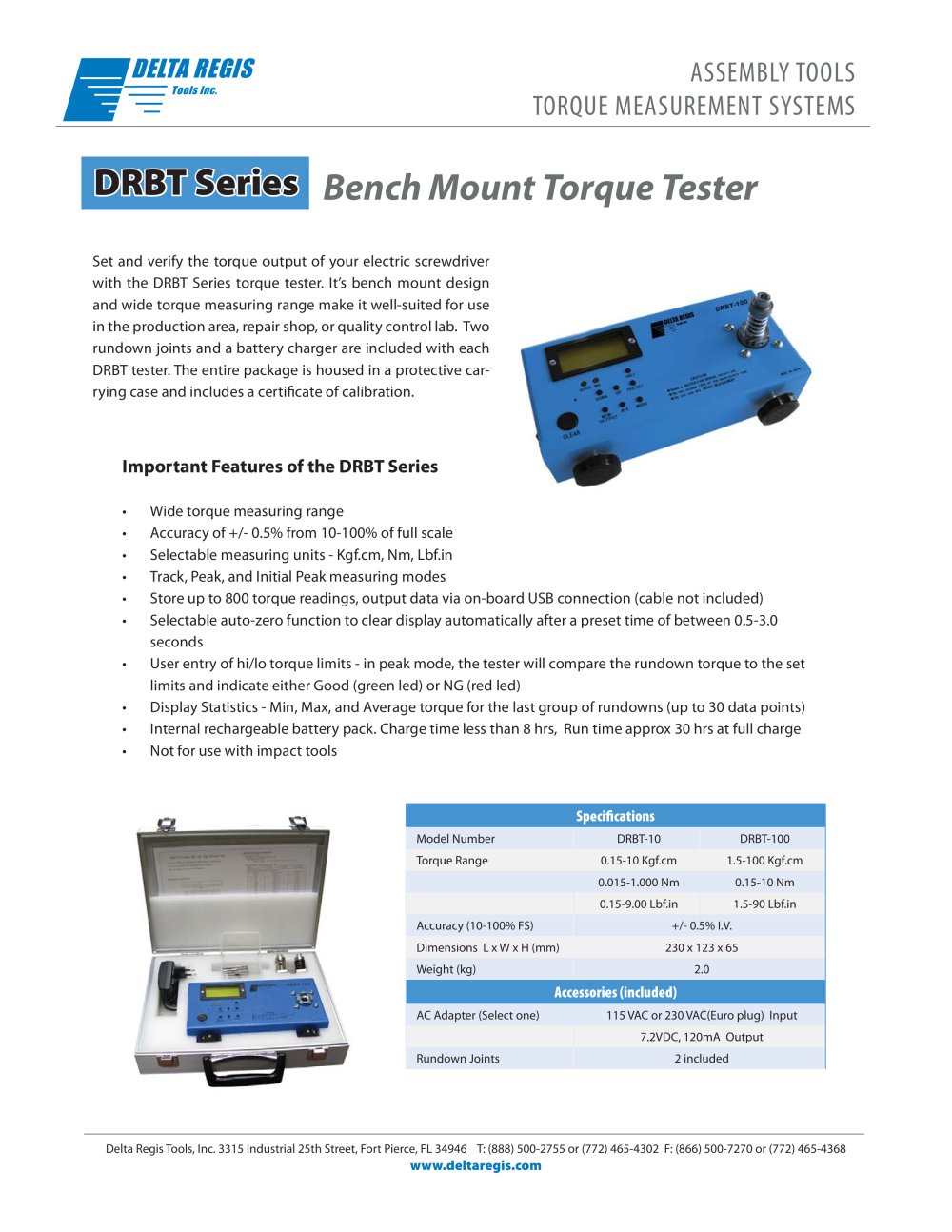

Delta Regis DRBT Series Torque Tester -1

Set and verify the torque output of your electric screwdriver with the DRBT Series torque tester. Its bench mount design and wide torque measuring range make it well-suited for use in the production area, repair shop, or quality control lab. Two rundown joints and a battery charger are included with each DRBT tester. The entire package is housed in a protective car- rying case and includes a certi cate of calibration. > Wide torque measuring range ҕ Accuracy of +/- 0.5% from 10-100% of full scale Selectable measuring units - Kgf.cm, Nm, Lbf.inՕ Track, Peak, and Initial Peak measuring modes Store up to 800 torque readings, output data via on-board USB connection (cable not included)Օ Selectable auto-zero function to clear display automatically after a preset time of between 0.5-3.0 seconds User entry of hi/lo torque limits - in peak mode, the tester will compare the rundown torque to the set Օ limits and indicate either Good (green led) or NG (red led) Display Statistics - Min, Max, and Average torque for the last group of rundowns (up to 30 data points) Internal rechargeable battery pack. Charge time less than 8 hrs, Run time approx 30 hrs at full chargeՕ Not for use with impact tools Specifi cations > Model NumberDRBT-10DRBT-100Torque Range0.15-10 Kgf.cm1.5-100 Kgf.cm0.015-1.000 Nm0.15-10 Nm0.15-9.00 Lbf.in1.5-90 Lbf.inAccuracy (10-100% FS)+/- 0.5% I.V. Dimensions L x W x H (mm)230 x 123 x 65 Weight (kg)2.0 Accessories (included) > AC Adapter (Select one)115 VAC or 230 VAC(Euro plug) Input7.2VDC, 120mA OutputRundown Joints2 included Delta Regis Tools, Inc. 3315 Industrial 25th Street, Fort Pierce, FL 34946 T: (888) 500-2755 or (772) 465-4302 F: (866) 500-7270 or (772) 465-4368 www.deltaregis.com size="-1">
