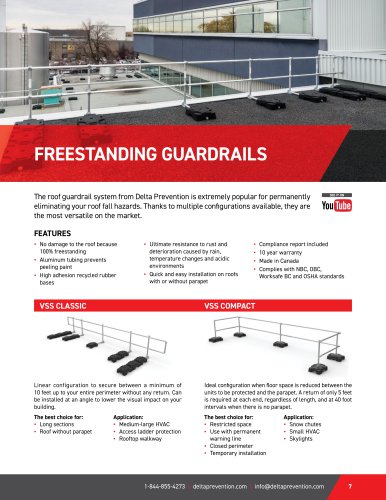

The roof guardrail system from Delta Prevention is extremely popular for permanently eliminating your roof fall hazards. Thanks to multiple configurations available, they are the most versatile on the market. ■ No damage to the roof because 100% freestanding ■ Aluminum tubing prevents peeling paint ■ High adhesion recycled rubber bases ■ Ultimate resistance to rust and deterioration caused by rain, temperature changes and acidic environments ■ Quick and easy installation on roofs with or without parapet ■ Compliance report included ■ Complies with NBC, OBC, Worksafe BC and OSHA standards VSS COMPACT Linear configuration to secure between a minimum of 10 feet up to your entire perimeter without any return. Can be installed at an angle to lower the visual impact on your building. Ideal configuration when floor space is reduced between the units to be protected and the parapet. A return of only 5 feet is required at each end, regardless of length, and at 40 foot intervals when there is no parapet. ■ Roof without parapet ■ Access ladder protection ■ Use with permanent warning line

FREESTANDING GUARDRAILS The GA200 clamp allows a 10° angled installation making the guardrail less visible from the ground. BAA13-01 recycled rubber base Note: ▪ The "D" finish allows a maximum extension of 20 inches. ▪ The ends of the VSS Classic system are always composed of a DCS3 and a DCS2, located 39 inches apart. ▪ The measurements shown represent the maximum lengths between two vertical posts (78”). ▪ Must be installed at 12" from the edge when there is no parapet. VSS COMPACT BAA13-01 recycled rubber base Note: ▪ Must be installed 12" from the edge when there is no parapet. ▪ A full...

FREESTANDING GUARDRAILS TECHNICAL SHEET VSS Classic Minimum length: Max distance between posts: Full height returns: At each end and every 40' on roofs without a parapet Counterweight dimensions: Counterweights - material: BAA13-01: recycled rubber EAA05-01: hot dipped galvanized cast iron with glued 0.120" (3 mm) EPDM membrane Rails & posts: Rails – lenghts: Rails & posts – outside diameters: Rails & posts – inside diameters: Clamps - material: Malleable cast iron with hot-dip galvanizing & electroplating Malleable cast iron with hot-dip galvanizing & electroplating Clamps – tightening torque:...

FREESTANDING GUARDRAILS COMMON APPLICATIONS HVAC unit - VSS Classic Wall mount - VSS Compact Level change - VSS Compact Ballasted roof - VSS Classic Roof drains - VSS Classic Access staircase - VSS Classic Sloping roof - VSS Classic HVAC unit - VSS Compact HVAC unit - VSS Compact Roof with angle - VSS Classic
