Thermocouples HD 2108.1

Thermocouples HD 2108.1
4Pages

Catalog excerpts

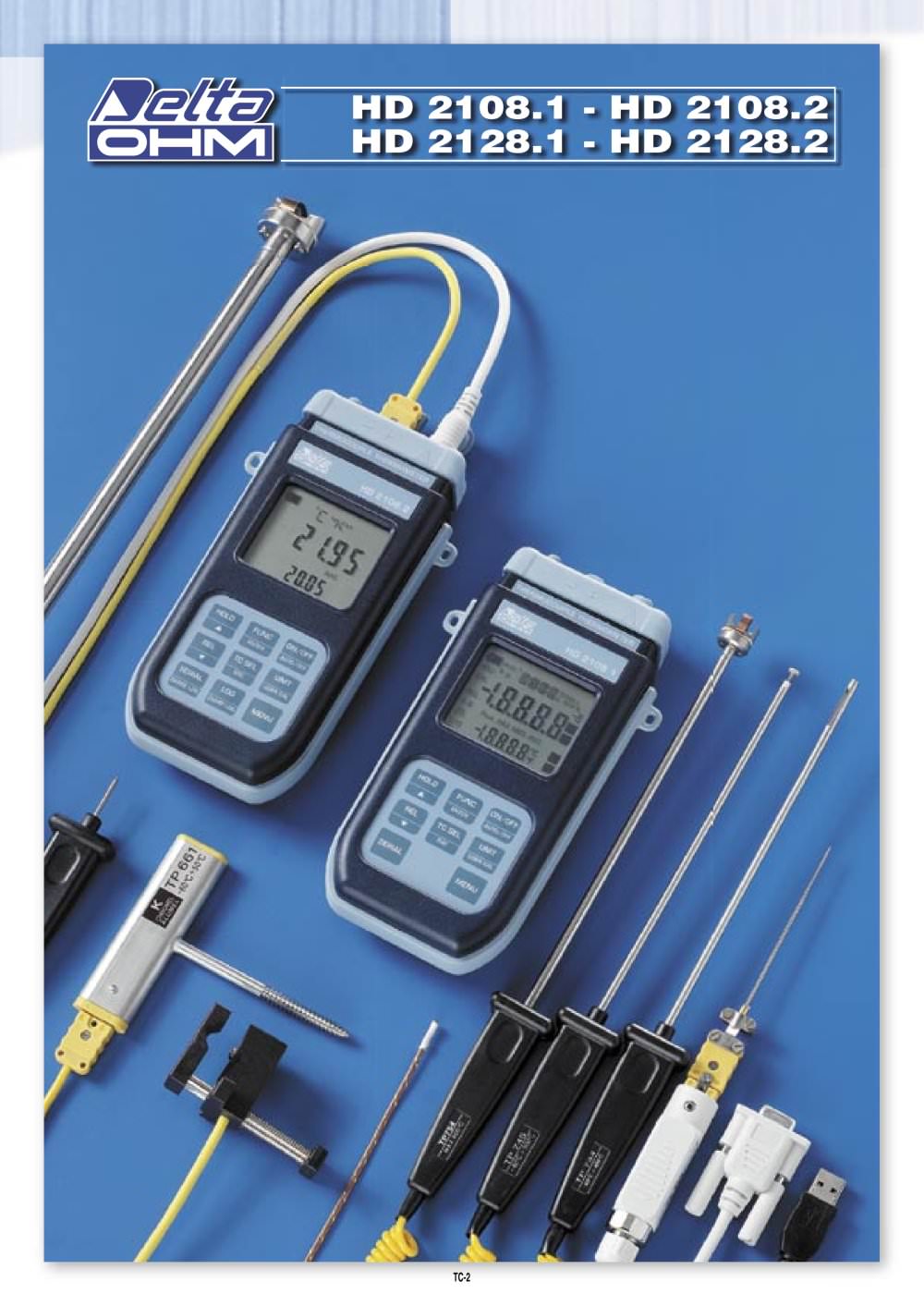

Thermocouple Thermometers HD2108.1 and HD2108.2 with one input HD2128.1 and HD2128.2 with two inputs The HD2108.1 and HD2108.2 with one input and the HD2128.1 and HD2128.2 with two inputs are portable instruments with a large LCD display. They measure the temperature using immersion, penetration air or contact probes. The sensor may be a thermocouple of type K, J, T, N, R, S, B or E. The HD2108.2 and HD2128.2 instruments are dataloggers. The HD2108.1 memorizes up to 76,000 samples, the HD2128.2 up to 38,000 pairs of values. These data can be transferred from the instrument connected to a PC...

Open the catalog to page 2

HD2101/USB HD2110CSNM S‘print-BT Measurement of temperature by Instrument TC measurement range: K -200…+1370°C TC measurement range: J -100…+750°C TC measurement range: T -200…+400°C TC measurement range: N -200…+1300°C TC measurement range: R +200…+1480°C TC measurement range: S +200…+1480°C TC measurement range: B +200…+1800°C TC measurement range: E -200…+750°C Resolution 0.05°C up to 199.95°C 0.1°C from 200.0°C to the full scale Instrument precision Thermocouple K ±0.1°C up to 600°C ±0.2°C over 600°C Thermocouple J ±0.05°C up to 400°C ±0.1°C over 400°C Thermocouple T ±0.1°C Thermocouple...

Open the catalog to page 3

ORDER CODES HD2108.1K: The kit is composed of the instrument HD2108.1 with one input, connection cable for serial output HD2110CSNM, 4 1.5V alkaline batteries, operating manual, case and DeltaLog9 software. The probes must be ordered separately. HD2108.2K: The kit is composed of the HD2108.2 with one input, datalogger, connection cable HD2101/USB, 4 1.5V alkaline batteries, operating manual, case and DeltaLog9 software. The probes must be ordered separately. HD2128.1K: The kit is composed of the instrument HD2128.1 with two inputs, connection cable for serial output HD2110CSNM, 4 1.5V...

Open the catalog to page 4

Thermocouples HD 2108.1 4Pages
