Delta OHM
Temperature Datalogger 8/16 channel HD32.7

Temperature Datalogger 8/16 channel HD32.7

Product catalog summary

Overview: The document provides detailed specifications and features of three data logger models: HD32.7, HD32.8.8, and HD32.8.16, designed for temperature measurement using Pt100 probes and various thermocouple types.

HD32.7 Data Logger:

Inputs: 8-input data logger for Pt100 temperature probes with SICRAM module.
Measurement Units: Configurable to °C, °F, °K.
Memory: Flash memory with 64 blocks, capable of storing up to 800,000 recordings.
Display: Simultaneous display of 8 inputs with options for maximum, minimum, or average values.
Data Logging: Configurable intervals from 2 seconds to 1 hour, with options for instantaneous or postponed logging.
Data Download: Via RS232C or USB 1.1 – 2.0, using DeltaLog9 software.
Power Supply: 4 1.5V alkaline C-BABY batteries or external 12VDC-1A power supply.
Applications: Suitable for field measurements, machine testing, and production checks.

Technical Specifications:

Accuracy: ±0.01°C ±1digit within ±199.99°C range.
Resolution: 0.01°C within ±199.99°C range.
Operating Conditions: Temperature range -5 to 50°C, humidity 0 to 90% RH.
Protection: IP64 rating.

HD32.8.8 and HD32.8.16 Data Loggers:

Inputs: HD32.8.8 has 8 inputs, HD32.8.16 has 16 inputs for thermocouple types K, J, T, N, R, S, B, E.
Measurement Units: Configurable to °C, °F, °K.
Memory: Similar flash memory setup as HD32.7, with 800,000 recordings capacity.
Display: Simultaneous display of 4 inputs.
Data Logging: Configurable intervals and options for instantaneous or postponed logging.
Data Download: Via RS232C or USB 1.1 – 2.0, using DeltaLog9 software.
Power Supply: 4 1.5V alkaline C-BABY batteries, external 12VDC-1A power supply, or PC USB port.
Applications: Suitable for complex measurements in various industries including pharmaceutical and food.

Technical Specifications:

Accuracy: Varies by thermocouple type, e.g., ±0.1°C for K type up to 600°C.
Resolution: 0.05°C within ±199.95°C range.
Operating Conditions: Temperature range -5 to 50°C, humidity 0 to 90% RH.
Protection: IP64 rating.

Accessories and Ordering:

Various accessories such as connection cables, carrying cases, and tripods are available.
Probes and additional software copies must be ordered separately.

Catalog excerpts

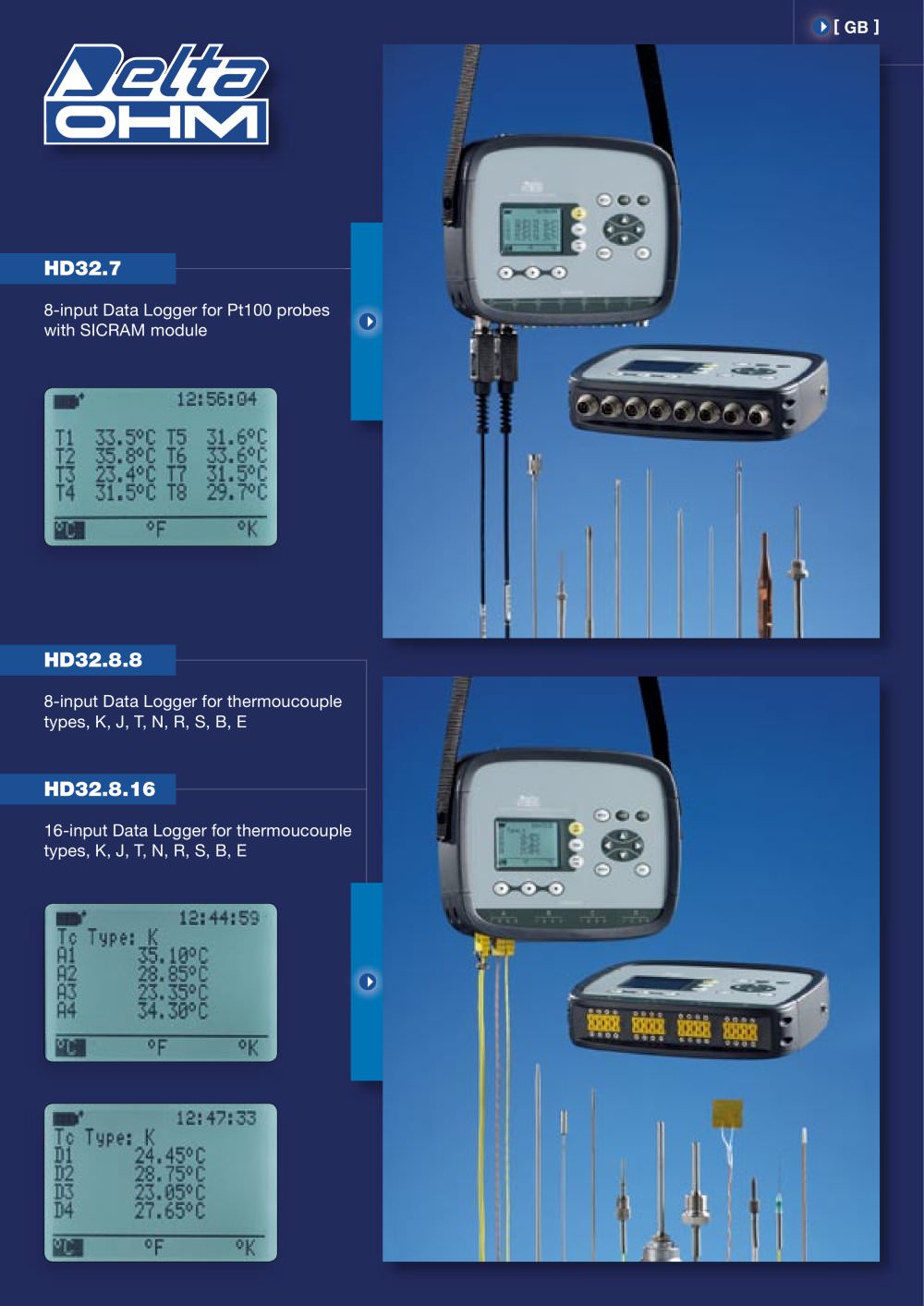

Temperature Datalogger 8/16 channel HD32.7-1

HD32.7 8-input Data Logger for Pt100 probes with SICRAM module HD32.8.8 8-input Data Logger for thermoucouple types, K, J, T, N, R, S, B, E HD32.8.16 16-input Data Logger for thermoucouple types, K, J, T, N, R, S, B, E [ GB ]

Open the catalog to page 1

Temperature Datalogger 8/16 channel HD32.7-2

12 Vdc 1A USB 1.1 - 2.0 RS232C HD32.7 8-input Data Logger The HD32.7 instrument is a rugged 8-input data logger for Pt100 temperature probes complete with SICRAM module. • Confi gurable unit of measurement: °C, °F, °K. • Flash memory, organized in 64 blocks, for a total capacity of 800,000 recordings divided among the existing inputs. The recording can be handled in two ways: - when the available memory is full, the collected data are overwritten starting from the oldest ones (circular memory), - the recording stops when the available memory is full. • Simultaneous display of the 8 inputs. •...

Open the catalog to page 2

Temperature Datalogger 8/16 channel HD32.7-4

HD 32.8.16 HD 32.8.8 HD32.8.8 8 8-input Data Logger for thermocouple HD32.8.16 16-input Data Logger for thermocouple The HD32.8.8 and HD32.8.16 instruments are rugged data loggers. The former has 8 inputs, the latter has 16 inputs. They work with thermocouple probes type K, J, T, N, R, S, B and E with miniature connector. • Confi gurable unit of measurement : °C, °F, °K. • Flash memory, organized in 64 blocks, for a total capacity of 800,000 recordings divided among the existing inputs. The recording can be handled in two ways: - when the available memory is full, the collected data are overwritten...

Open the catalog to page 4

Temperature Datalogger 8/16 channel HD32.7-5

BAG32.2 Keyboard 15 keys; the instruments can be confi gured without a PC. Keyboard locking function with password. Memory Divided into 64 blocks. Storage capacity Up to 800,000 recordings divided among the existing inputs; for example with one probe connected, 800,000 recordings; with 8 probes connected, 96,000 recordings each. Security of stored data Unlimited. Power supply 4 1.5V alkaline C-BABY type batteries External power supply 12VDC-1A. Connector, external 5.5mm, internal 2.1mm. Power supply via the PC USB port. Power absorbed @6VDC: <60ìA when the instrument is off <60ìA in sleep mode...

Open the catalog to page 5

Temperature Datalogger 8/16 channel HD32.7-6

Delta Ohm srl - Via G. Marconi, 5 - 35030 Caselle di Selvazzano (Pd) - Italy Tel. 0039 0498977150 r.a. Fax 0039 049635596 - E-mail: [email protected] Web Site: www.deltaohm.com RoHS 2002/95/EC 01 04.07 Manufacture of portable and bench top instruments Current and voltage loop transmitters Temperature - Humidity - Pressure Air speed - Light - Acoustics pH - Conductivity - Dissolved Oxygen - Turbidity Elements for weather stations SIT CENTRE N°124 Temperature - Humidity - Pressure - Air speed - Photometry/Radiometry - Acoustics

Open the catalog to page 6
