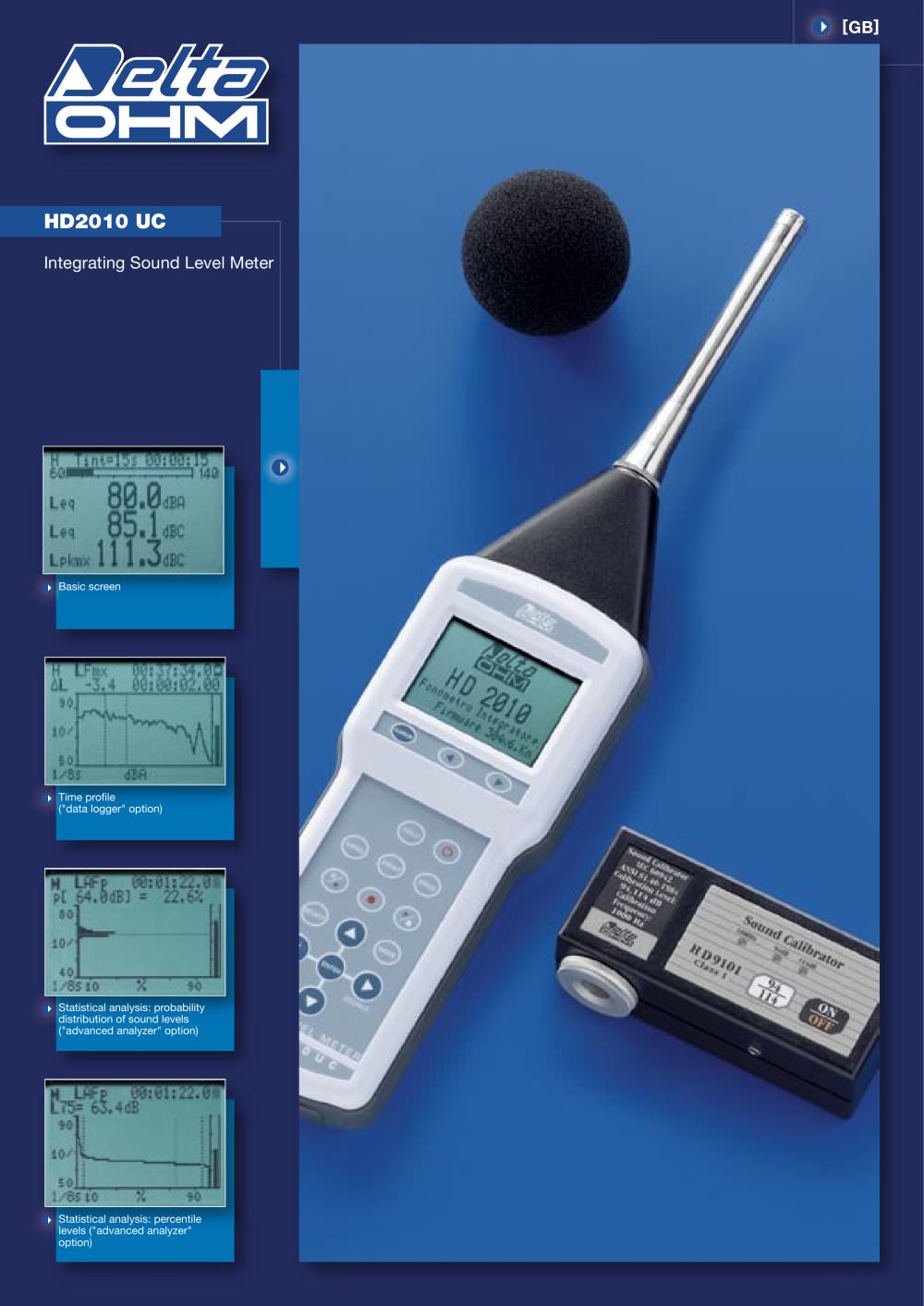

[GB] HD2010 UC Integrating Sound Level Meter Statistical analysis: percentile levels ("advanced analyzer" option) Statistical analysis: probability distribution of sound levels ("advanced analyzer" option) Time profi le ("data logger" option) Basic screen

HD SAV2 HD 2010UC Integrating Sound Level Meter The HD2010UC is an integrating portable sound level meter perform- ing statistical analyses. The instrument has been designed combining price competitiveness and simplicity of use. Attention has been paid to the possibility of updating the instrument. Besides, the HD2010UC can be integrated with other options to extend its application scope at any time. The fi rmware can be upgraded directly by the user using the DeltaLog5 program supplied with the instrument. Technical regulations: ü Class 1 or 2 sound level meter according to IEC 61672-1 of 2002...

Inputs and outputs DC output corresponding to the A -weighted sound level with FAST constant time updated 8 times/s ( 2.5 mm jack). This output is not available for all models. LINE unweighted output ( 3.5 mm jack). Standard RS232C serial port complying with EIA/TIA574. Baud Rate from 300 to 115200 baud. USB 1.1 serial port. External power supply 9÷12Vdc ( 5.5 mm jack). Options and accessories: HD2110/MC reader (it requires the “Data Logger” option) It allows interfacing SD and MMC memory cards with the sound level meter. This device is connected to the sound level meter through the serial interface...

Order codes of the new kits and accessories HD2010UC kit 1: Includes class 1 HD2010UC Sound Level Meter, carrying case, HD2010PNE2 preamplifi er, HD9101 calibrator, UC52/1 microphone, CPA/5 5m extension cable, HD SAV wind- screen, DeltaLog5 software and serial cable for connection to a PC with COM (HD2110/CSNM) or USB (HD2101/USB) interface. HD2010UC kit 1/E: Same as the HD2010UC kit 1 with weatherproof protection. Suitable for outdoor measurements. It includes class 1 HD2010UC Sound Level Meter, carrying case, HD2010PNE2W heated preamplifi er with 5m connection cable, HD9101 calibrator, UC52/1...

Codes of spare parts and other accessories Upgrade 1: Conversion of HD2010UC into HD2010UC/A. It includes: • Octave band spectrum analysis. • Option 2 “Data Logger”. The sound level meter and fi lter ISO 9001 calibration report is included in the upgrade. HD9101: Type 1 calibrator according to IEC60942:1988. Frequency: 1000Hz; sound level: 94dB/114dB. HD9102: Type 2 calibrator according to IEC60942:1988. Frequency: 1000Hz; sound level: 94dB/114dB. CPA/5: Microphone 5m extension cable. HD SAV: Windscreen for ½” microphone. HD SAV2: Windscreen with bird spikes for HDWME950 microphone unit. HD SAVP:...

Delta Ohm srl - Via G. Marconi, 5 - 35030 Caselle di Selvazzano (Pd) - Italy Tel. 0039 0498977150 r.a. Fax 0039 049635596 - E-mail: [email protected] Web Site: www.deltaohm.com RoHS 2002/95/EC 01 05.07 SIT CENTRE N°124 Temperature - Humidity - Pressure - Air speed - Photometry/Radiometry - Acoustics Manufacture of portable and bench top instruments. Current and voltage loop transmitters. Temperature - Humidity - Pressure - Air speed Light - Acoustics - pH - Conductivity - Dissolved Oxygen - Turbidity Elements for weather stations - Thermal Microclimate
