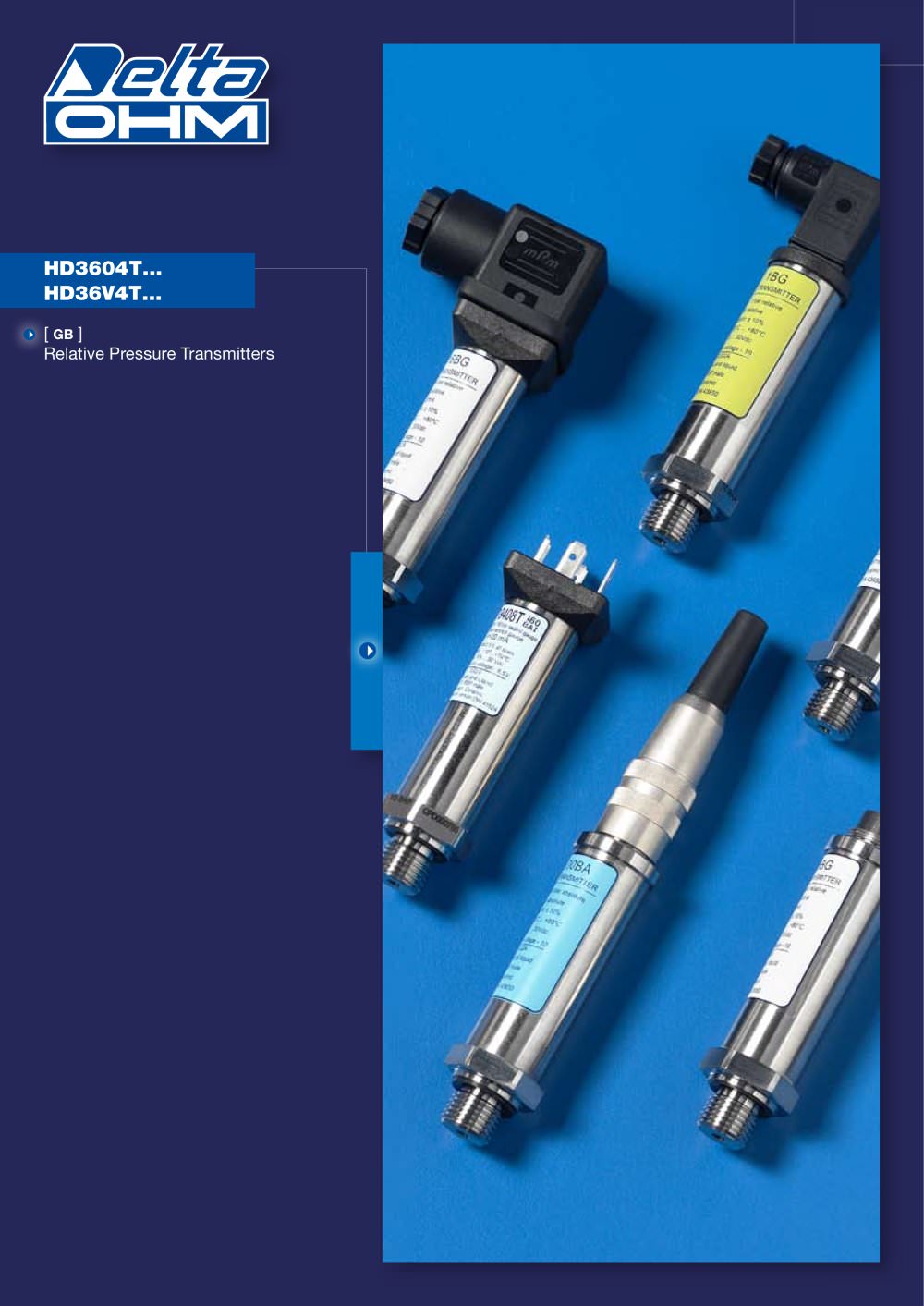

HD3604T… HD36V4T… [ GB ] Relative Pressure Transmitters

Open the catalog to page 1

[ GB ] [ GB ] Description The HD3604T... and HD36V4T... are pressure transmitters with microprocessor and current (4...20mA) or voltage (0...5V, 1...5V or 0...10V) output, respectively. The sensor, piezoresistive, is insulated and allows gas and liquid pressure measurement over a wide range of temperatures. The measured pressure is relative to atmosphere. The different models cover the scales from 6 to 600bar. The case is in stainless steel diam. 20mm and encloses sensor and electronics: in order to connect it to a pressurized system, it is supplied with a ¼” BSP threaded connection with a...

Open the catalog to page 2

Order codes: HD36 X 4T X X BG X 1 = Voltage analog output 0...5Vdc 2 = Voltage analog output 1...5Vdc 3 = Voltage analog output 0...10Vdc B = Bar G = Gauge (relative pressure) Electrical Connection No sign = Male connector DIN 43650A A = Male connector DIN 43650C B = Male connector DIN 41524 Nominal bottom scale (bar) 6 – 10 – 16 – 25 – 40 – 60 – 100 – 160 – 250 400 600 relative bar 0 = Analog output 4…20mA V = Voltage analog output DIN 43650A and DIN 43650C connectors To make the electrical connections you need to open the female connector. 1 2 RLOAD + 4...20mA Current output Voltage...

Open the catalog to page 3

Delta Ohm srl - Via G. Marconi, 5 - 35030 Caselle di Selvazzano (Pd) - Italy Tel. 0039 0498977150 r.a. Fax 0039 049635596 - E-mail: deltaohm@tin.it Web Site: www.deltaohm.com RoHS 2002/95/EC 01 04.08 Manufacture of portable and bench top instruments Current and voltage loop transmitters Temperature - Humidity - Pressure Air speed - Light - Acoustics pH - Conductivity - Dissolved Oxygen - Turbidity Elements for weather stations - Thermal Microclimate SIT CENTRE N°124 Temperature - Humidity - Pressure - Air speed Photometry/Radiometry - Acoustics CE CONFORMITY • Safety: EN61000-4-2, EN61010-1...
