Delta OHM
Printers HD 40.1

Printers HD 40.1

Product catalog summary

Introduction
The HD40.1 and HD40.2 are compact, portable thermal printers designed for ease of use and mobility. The HD40.1 connects via RS232 serial input, while the HD40.2 offers both RS232 and Bluetooth connectivity, making it ideal for field use without direct connections.

Specifications

Printing Method: Thermal
Resolution: 203 DPI
Printing Width: 48mm
Paper Roll Width: 57mm to 58mm
Max Paper Roll Diameter: 32mm
Number of Columns: 24
Printing Speed: Up to 90 mm/sec
Sensors: Paper detection
Character Set: IBM II 858 table
Communication Interfaces: RS232, Bluetooth (HD40.2)
Bluetooth Operating Distance: Up to 10m
Power Supply: 100-240Vac/12Vdc-1A charger, four 1.2V AA NiMH batteries
Printing Autonomy: 3000 lines
Switch-off Function: 0, 5, 10, or 15 minutes
Dimensions: 105mm x 165mm x 53mm
Weight: 380g
Material: ABS
Operating Conditions: 0°C to 50°C, 20%RH to 85%RH
Storage Conditions: -25°C to +70°C, 10%RH to 90%RH
Protection Degree: IP40

Connections
The printer uses a 9-pole D sub male connector for serial interface and a 2-pole connector for battery charging.

Ordering Codes

HD40.1: Includes printer, RS232 interface, batteries, power supply, manual, and 5 paper rolls.
HD40.2: Includes printer, Bluetooth and RS232 interfaces, batteries, power supply, manual, and 5 paper rolls.
HD2110CSNM: Cable for MiniDIN to 9-pole D Sub connection.
9CPRS232: Cable for 9-pole D Sub connection.
SWD10: Mains battery charger.
BAT.40: Spare battery pack.
RCT: Kit with 4 thermal paper rolls.

Manufacturer Information
Delta Ohm srl, Italy, specializes in manufacturing portable and bench top instruments for various measurements including temperature, humidity, pressure, and more.

Catalog excerpts

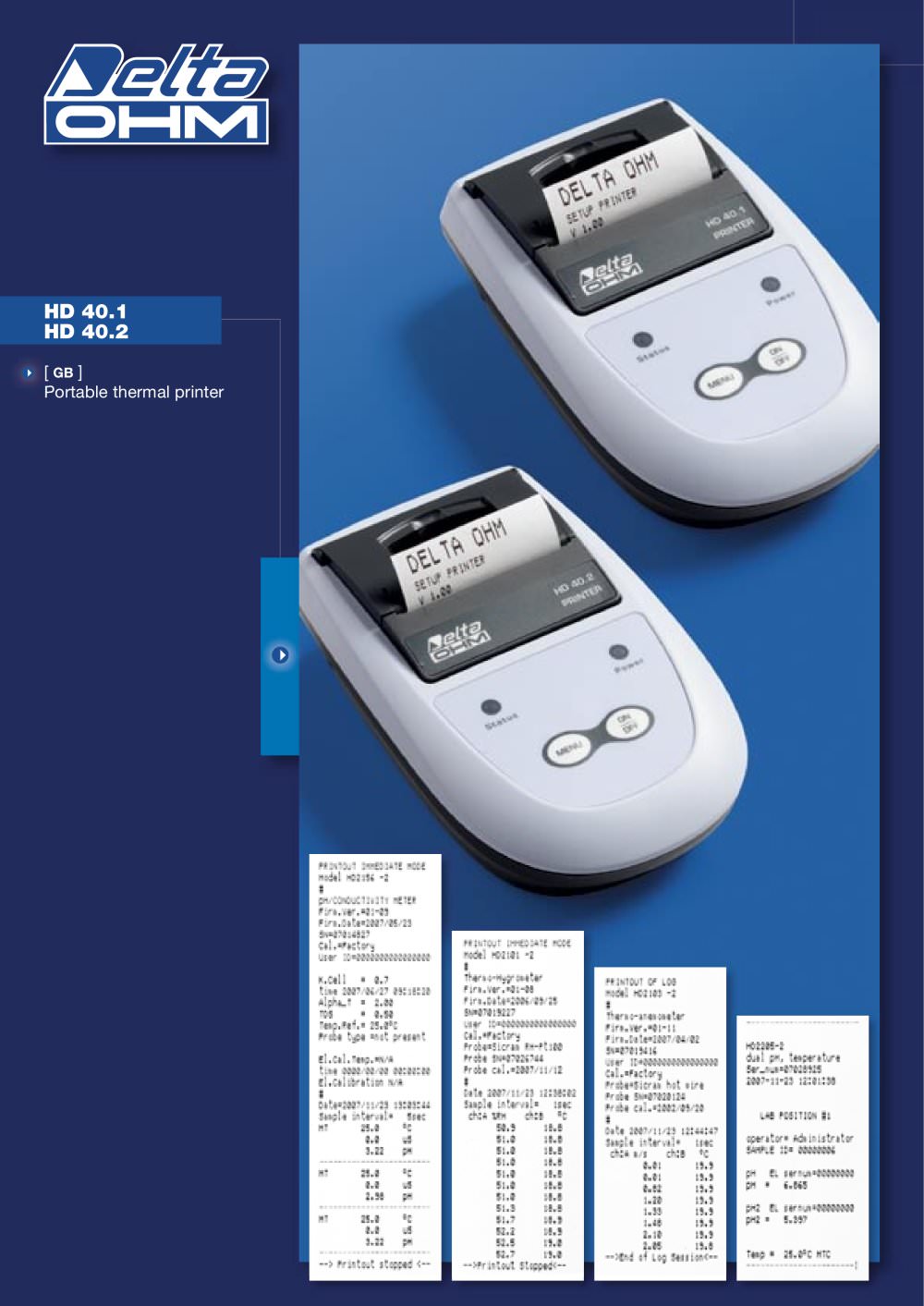

HD 40.1 HD 40.2 [ GB ] Portable thermal printer

Open the catalog to page 1

INTRODUCTION The HD40.1 and HD40.2 are lightweight, compact, portable thermal printers. The HD40.1 is connected to instruments or PC through the RS232 serial input. The HD40.2 features a dual mode data reception system - RS232 serial and Bluetooth. The Bluetooth wireless connection makes the HD40.2 printer very useful “in the fi eld”, since it does not require any connection to the instrument. A careful design allows you to replace the thermal paper roll in a few seconds. A four NiMH rechargeable battery pack provides power supply and ensures long autonomy: you can print up to 3000 lines at full...

Open the catalog to page 2

Delta Ohm srl - Via G. Marconi, 5 - 35030 Caselle di Selvazzano (Pd) - Italy Tel. 0039 0498977150 r.a. Fax 0039 049635596 - E-mail: [email protected] Web Site: www.deltaohm.com RoHS 2002/95/EC 01 11.07 Manufacture of portable and bench top instruments Current and voltage loop transmitters Temperature - Humidity - Pressure Air speed - Light - Acoustics pH - Conductivity - Dissolved Oxygen - Turbidity Elements for weather stations - Thermal Microclimate SIT CENTRE N°124 Temperature - Humidity - Pressure - Air speed - Photometry/Radiometry - Acoustics

Open the catalog to page 3
