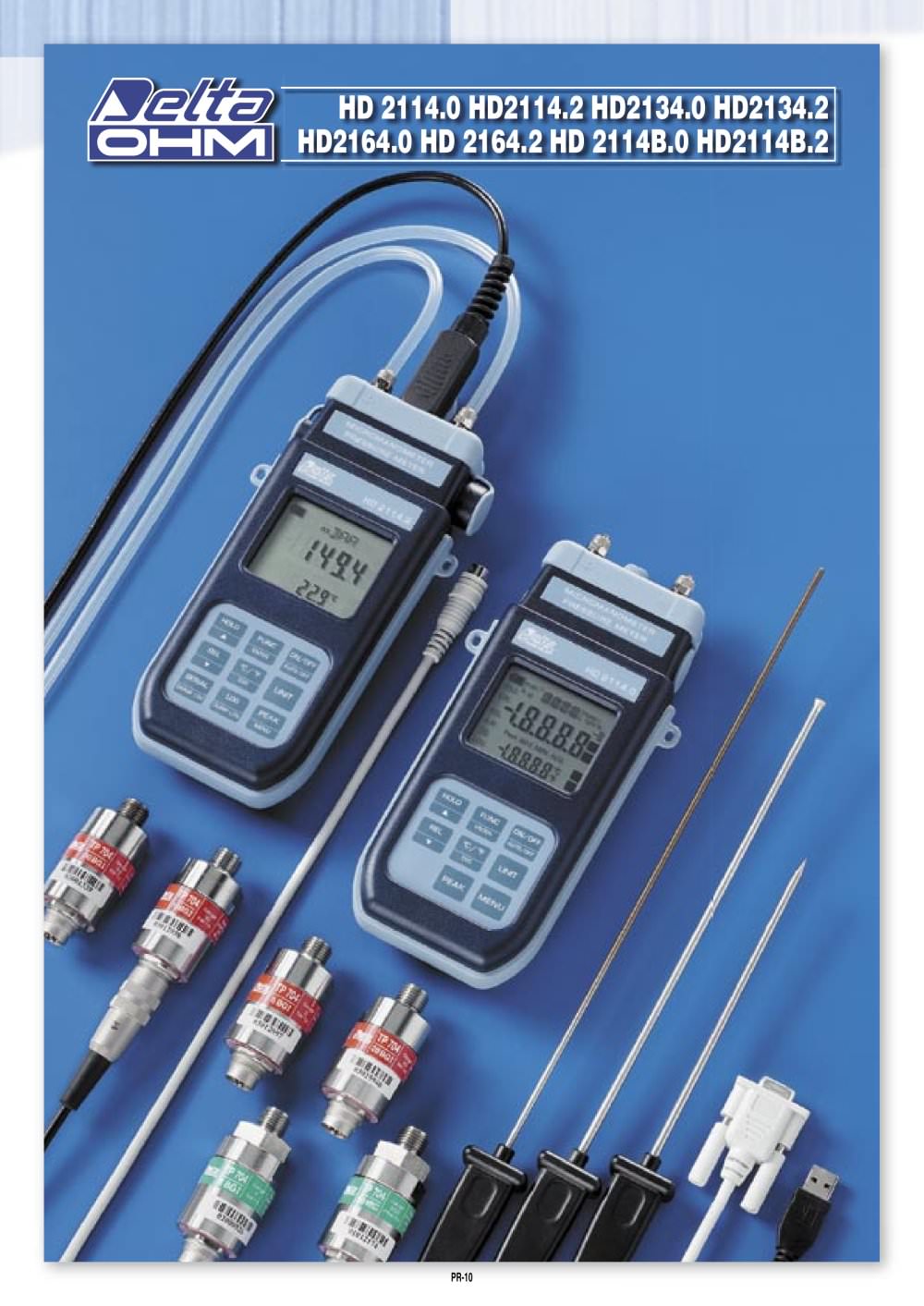

Pressure HD 2114.0
4Pages

{{requestButtons}}

Catalog excerpts

Pressure HD 2114.0 - 2

HD2110CSNM These are portable instruments with a large LCD display. They measure absolute, relative and differential pressure, as well as temperature. Pressure is measured using an internal module which is differential with respect to the atmosphere with fi xed full scale. With the PP471 module acting as an interface, the instrument can use all the TP704 and TP705 series Delta Ohm probes to perform the measurements. The HD2114B.0 and HD2114B.2 internal module measures the barometric pressure. The temperature is detected using immersion, penetration, contact or air probes, with SICRAM module...

Open the catalog to page 2
Pressure HD 2114.0 - 3

Measurement of pressure using the internal sensor HD2114.0 HD2114.2 HD2134.0 HD2134.2 HD2164.0 HD2164.2 HD2114B.0 HD2114B.2 Full scale ±20mbar ±200mbar ±2000mbar 600..1100mbar Maximum overpressure ±300mbar ±1bar ±6bar 3bar Resolution 0.001mbar 0.01mbar 0.1mbar 0.1mbar Accuracy @23°C ±0.3%f.s. ±(0.1%f.s.+0.1% measurement) ±0.3mbar Working temperature 0…60°C Connection quick couplings Ø5mm Compensation temperature 0…60°C Drift on zero ±1%f.s. ±0.5%f.s. ±0.5%f.s. ±0.3%f.s. Drift on span ±1%f.s. ±0.5%f.s. ±0.5%f.s. ±0.3%f.s. Fluid contacting the membrane non corrosive air and gas Measurement of...

Open the catalog to page 3
Pressure HD 2114.0 - 4

PP471 ORDER CODES HD2114.0K: The kit is composed of the HD2114.0 with built-in 20mbar full scale probe, 4 1.5V alkaline batteries, operating manual, case. Other probes must be ordered separately. HD2114.2K: The kit is composed of the HD2114.2 datalogger with built-in 20mbar full scale probe, connection cable HD2101/USB, 4 1.5V alkaline batteries, operating manual, case and DeltaLog9 software. Other probes must be ordered separately. HD2134.0K: The kit is composed of the HD2134.0 with built-in 200mbar full scale probe, 4 1.5V alkaline batteries, operating manual, case. Other probes must be...

Open the catalog to page 4
