Delta OHM
Photometers HD2102.1

Photometers HD2102.1

Product catalog summary

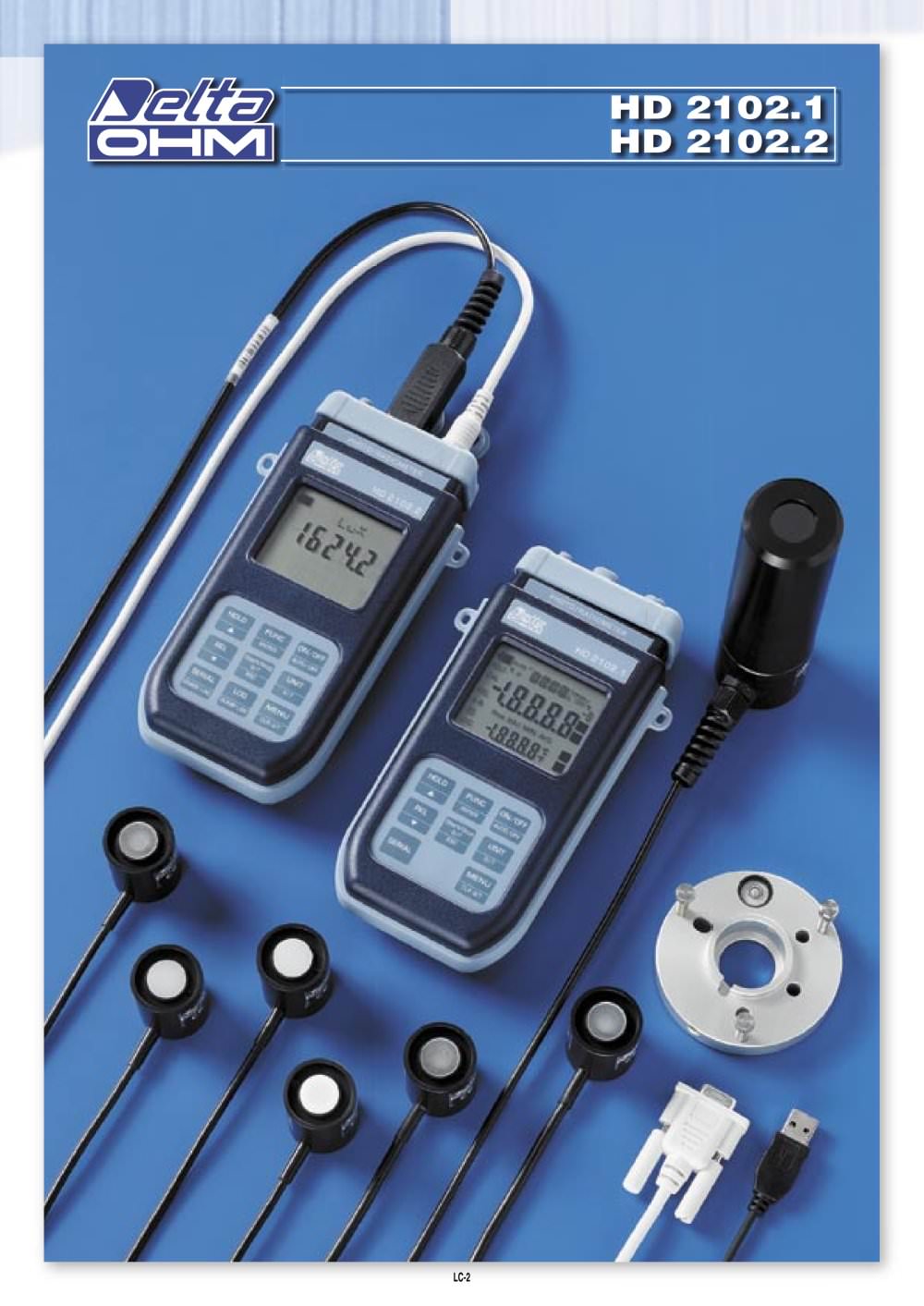

Overview: The HD2102.1 and HD2102.2 are portable instruments designed for measuring illuminance, luminance, PAR, and irradiance across various spectral regions. They feature a large LCD display and automatic detection and calibration capabilities.

Specifications:

Dimensions: 185x90x40mm
Weight: 470g
Materials: ABS, rubber
Display: 2x4½ digits, 52x42mm visible area
Operating Temperature: -5°C to 50°C
Protection Degree: IP67
Power: 4 AA batteries, 200 hours autonomy

Functionality:

Automatic measurement unit selection
Instantaneous and integrated measurement capabilities
Threshold settings for integral calculations
Data logging (HD2102.2) with 38,000 sample storage
Real-time data transfer via RS232C and USB
Max, Min, Avg, REL, HOLD functions

Technical Characteristics of Probes:

Illuminance Probe (LP 471 PHOT): Range 0.01 to 199.99x10³ lux, calibration uncertainty <4%
Luminance Probe (LP 471 LUM 2): Range 0.1 to 1999.9x10³ cd/m², calibration uncertainty <5%
PAR Probe (LP 471 PAR): Range 0.01 to 10,000 μmol/m²s, calibration uncertainty <5%
UVA, UVB, UVC, and RAD Probes: Various ranges with calibration uncertainty <5%

Standards and Calibration:

Probes calibrated at DeltaOhm laboratory
Reference standards include CIE n.69 and UNI 11142
UV action curve compliance for erythema measurement

Order Codes:

HD2102.1K and HD2102.2K kits include instrument, cables, batteries, manual, case, and software
Probes ordered separately
