Delta OHM
Minidatalogger HD207

Minidatalogger HD207

Product catalog summary

Overview: The HD206, HD226, HD207, and HD227 series are cost-effective, durable minidataloggers designed for long-term monitoring of temperature and relative humidity. They are available with or without an LCD display and can have internal or external temperature sensors. Data analysis is performed using Delta Log2 software for Windows.

Applications: These dataloggers are suitable for monitoring temperature and humidity during transportation and storage of perishable goods, pharmaceuticals, and other sensitive products, as well as for laboratory use.

Features:

High accuracy in temperature and relative humidity measurements.
Resolution of 0.1°C and 0.1% RH.
Manual or automatic control of data acquisition.
Large data storage capacity with up to 240,000 measurements on a single channel.
Flash memory retains data even with low or no battery.
User-replaceable battery with a typical life of 3 years.

Technical Specifications:

Temperature range: -30°C to +80°C (instrument), -40°C to +105°C (probe with cable).
Relative humidity range: 5% to 98% RH.
Accuracy: ±0.3°C within 0-70°C, ±0.4°C outside this range; ±2.5% RH.
IP Protection: 67 for probes with cable, 54 for instruments.
PC interface via RS232 serial port.
Compatible with Windows 95, 98, NT, 2000, ME, and XP.

Models and Accessories:

Various models with different sensor configurations and display options.
Optional probes for specific applications, such as immersion or air temperature measurement.
Calibration solutions and software for data management.

Catalog excerpts

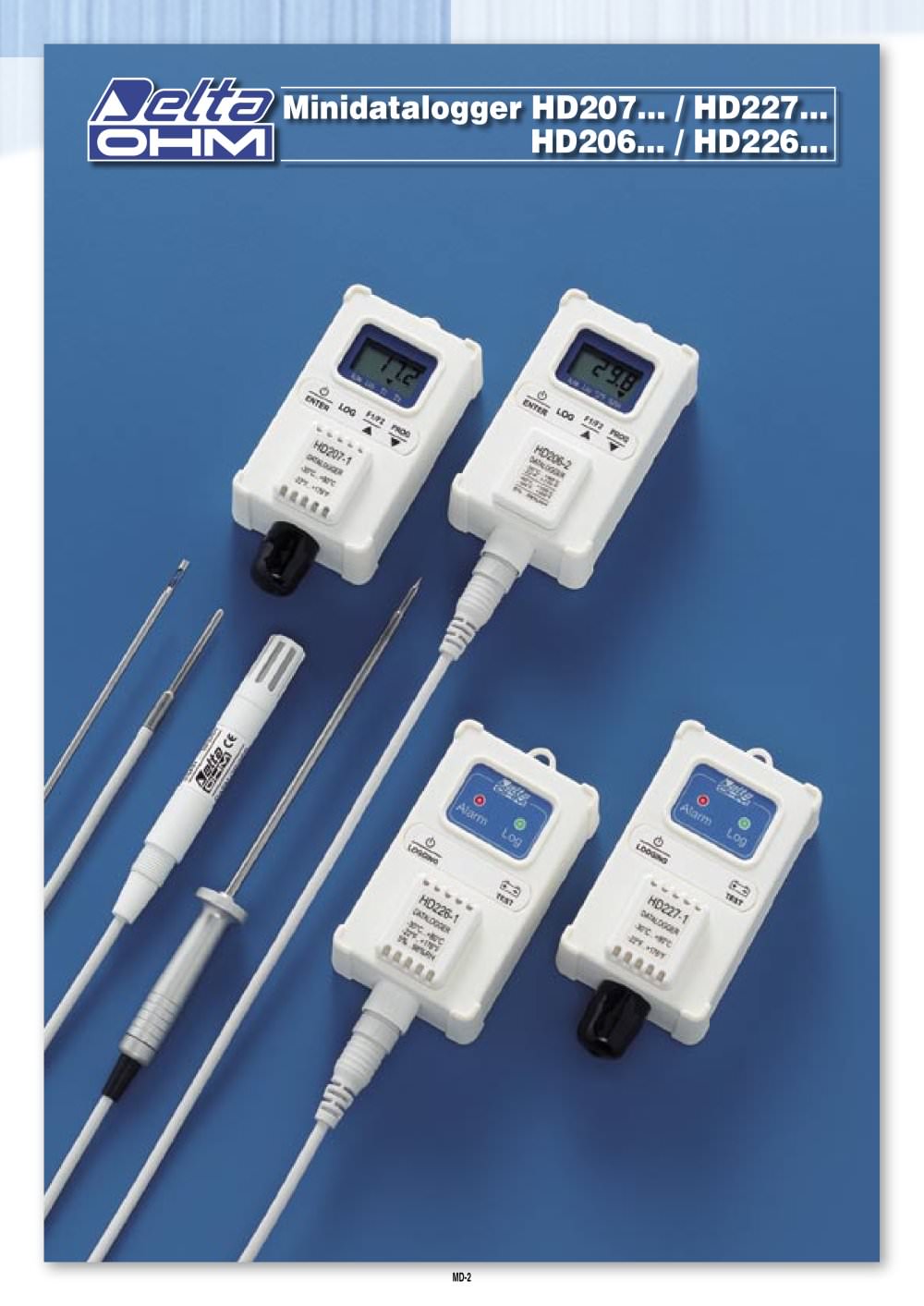

TEMPERATURE / RELATIVE HUMIDITY Minidatalogger HD207… / HD227… Temperature HD206… / HD226… Temperature / Relative Humidity HD206…/HD226… and HD207…/HD227… series data loggers are low-cost, rugged instruments, for a long-term reliable monitoring of temperature and temperature/relative humidity measurements. They are available in different versions: with or without LCD display, with temperature sensor either inside or outside the instrument housing, or with cable connection. The analysis of acquired data is made using Delta Log2 software for Windows. The datalogger functions of Start, Stop, Configuration,...

Open the catalog to page 2
