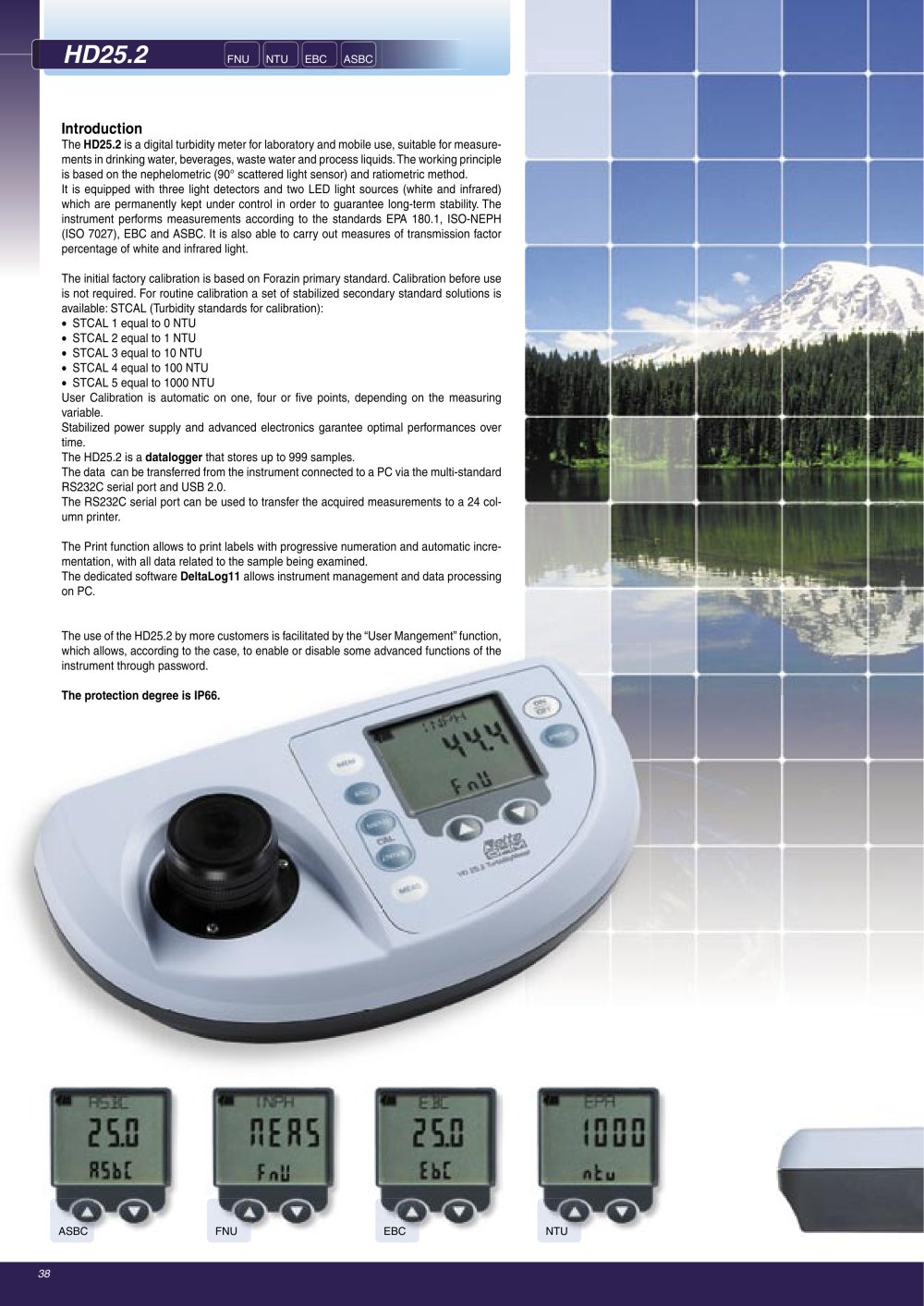

Instrument Benchtop Turbidity HD 25.2 - 1

HD25.2 FNU NTU EBC ASBC 38 ASBC FNU EBC NTU Introduction The HD25.2 is a digital turbidity meter for laboratory and mobile use, suitable for measure- ments in drinking water, beverages, waste water and process liquids. The working principle is based on the nephelometric (90° scattered light sensor) and ratiometric method. It is equipped with three light detectors and two LED light sources (white and infrared) which are permanently kept under control in order to guarantee long-term stability. The instrument performs measurements according to the standards EPA 180.1, ISO-NEPH (ISO 7027), EBC and ASBC. It is also able to carry out measures of transmission factor percentage of white and infrared light. The initial factory calibration is based on Forazin primary standard. Calibration before use is not required. For routine calibration a set of stabilized secondary standard solutions is available: STCAL (Turbidity standards for calibration): • STCAL 1 equal to 0 NTU • STCAL 2 equal to 1 NTU • STCAL 3 equal to 10 NTU • STCAL 4 equal to 100 NTU • STCAL 5 equal to 1000 NTU User Calibration is automatic on one, four or fi ve points, depending on the measuring variable. Stabilized power supply and advanced electronics garantee optimal performances over time. The HD25.2 is a datalogger that stores up to 999 samples. The data can be transferred from the instrument connected to a PC via the multi-standard RS232C serial port and USB 2.0. The RS232C serial port can be used to transfer the acquired measurements to a 24 col- umn printer. The Print function allows to print labels with progressive numeration and automatic incre- mentation, with all data related to the sample being examined. The dedicated software DeltaLog11 allows instrument management and data processing on PC. The use of the HD25.2 by more customers is facilitated by the “User Mangement” function, which allows, according to the case, to enable or disable some advanced functions of the instrument through password. The protection degree is IP66.

Open the catalog to page 1

Instrument Benchtop Turbidity HD 25.2 - 2

39 Measuring instruments design and manufacture Technical characteristics Instrument Dimensions (Length x Width x Height) 220x120x55mm Weight 400g (batteries included) Materials ABS Display LCD 4½ characters plus symbols Visible area: 52x42mm Operating conditions Instrument working temperature 0 … 50°C Storing temperature instrument -25 … 65°C Working relative humidity 0 … 90% R.H. without condensation Storing of Calibration standards 5…25°C (temperature should not ex- ceed, protect from light) Protection degree IP66 Power supply Batteries 3 1,5 V AA type batteries Autonomy 100 hours with...

Open the catalog to page 2
