Conductivity HD 2106.1

Conductivity HD 2106.1

Product catalog summary

Overview: The HD2106.1 and HD2106.2 are portable instruments designed for measuring conductivity, liquid resistivity, total dissolved solids (TDS), and salinity. They utilize combined 4-ring and 2-ring conductivity/temperature probes and can also measure temperature using Pt100 or Pt1000 probes.

Key Features:

Display: Large LCD for easy reading.
Calibration: Automatic probe calibration with solutions of 147μS, 1413μS, 12880μS, or 111800μS/cm.
Data Logging (HD2106.2): Stores up to 36,000 samples, transferable via RS232C or USB 2.0.
Real-Time Data Transfer: Both models can transfer data to a PC or printer in real-time.
Functions: Max, Min, Avg calculations, REL measurement, Auto-HOLD, and optional auto-off.
Protection: IP67 rating for dust and water resistance.

Technical Specifications:

Dimensions: 185x90x40mm; Weight: 470g.
Materials: ABS, rubber.
Operating Conditions: -5 to 50°C, 0-90% RH without condensation.
Power: 4 AA batteries, 200 hours autonomy, 9Vdc mains adapter.
Time Accuracy: 1min/month max error.

Measurement Capabilities:

Conductivity: Range from 0.00 to 199.9mS/cm with various resolutions and accuracies.
Resistivity: Range from 4.0Ω to 10MΩ.
TDS: Range from 0.00mg/l to 199.9g/l.
Salinity: Range from 0.000g/l to 19.99g/l.
Temperature: Range from -50 to +200°C with 0.1°C resolution.

Probes and Accessories:

Conductivity Probes: Various models with different ranges and materials (Pocan/Platinum, Glass/Platinum, Epoxy/Graphite).
Temperature Probes: Pt100 and Pt1000 models with Class A accuracy.
Calibration Solutions: Available for different conductivity levels.
Accessories: Includes connection cables, software, and optional thermal printer.

Catalog excerpts

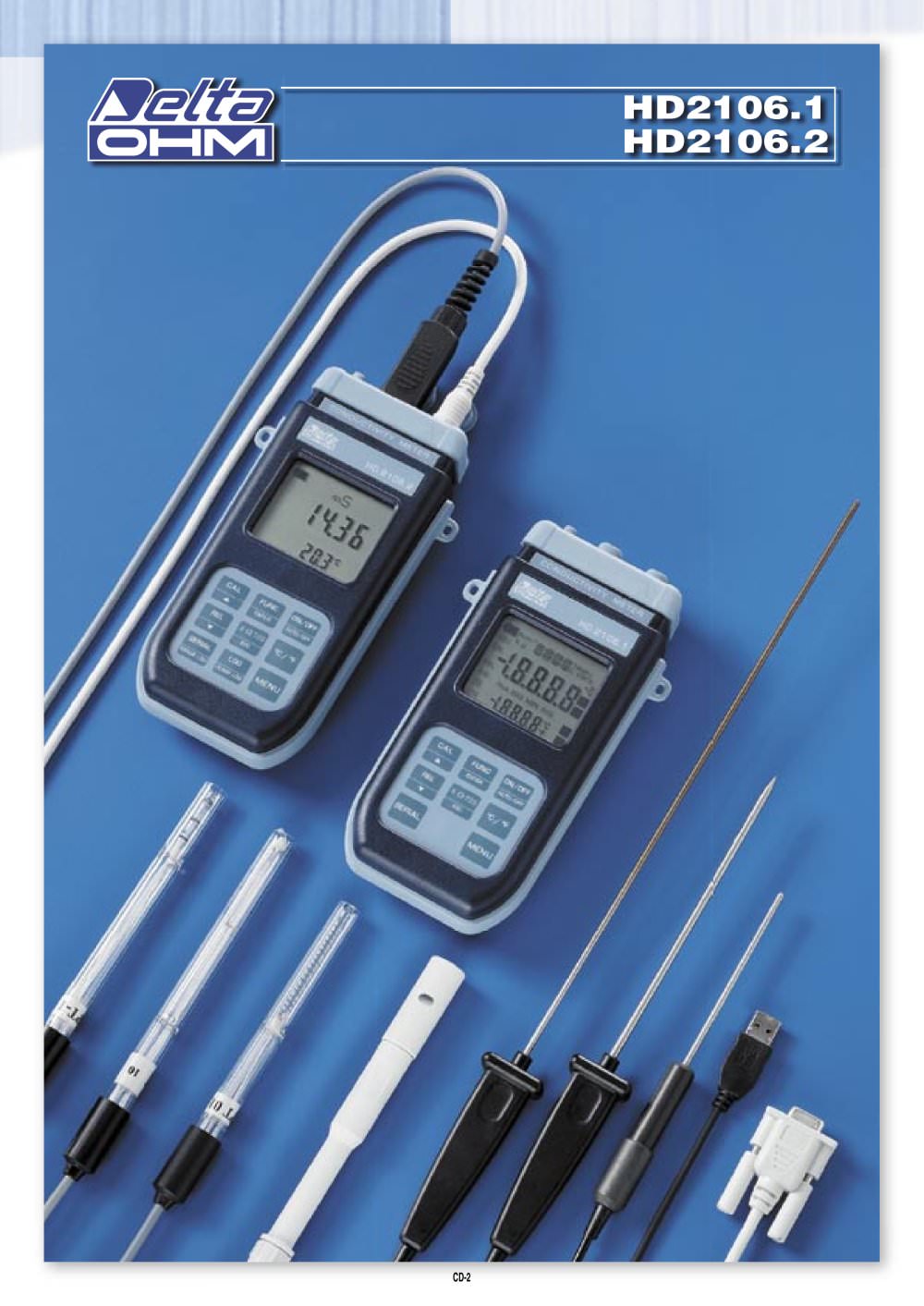

The HD2106.1 and HD2106.2 are portable instruments with a large LCD dis- play. They measure conductivity, liquid resistivity, total dissolved solids (TDS), and salinity using combined 4-ring and 2-ring conductivity/temperature probes. Temperature only is measured by Pt100 or Pt1000 immersion, penetration or contact probes. The probe calibration can be performed automatically in one or more than one of the 147ìS, 1413ìS, 12880ìS or 111800ìS/cm conductivity calibration solutions. The temperature probes are fi tted with an automatic detection module, with the factory calibration settings already...

Open the catalog to page 2

4 wire Pt100 and 2 wire Pt1000 Temperature probes Model Type Working range Accuracy TP47.100 Pt100 4 wires -50…+200°C Class A TP47.1000 Pt1000 2 wires -50…+200°C Class A TP87.100 Pt100 4 wires -50…+200°C Class A TP87.1000 Pt1000 2 wires -50…+200°C Class A Common characteristics Resolution 0.1°C Temperature drift @20°C 0.005%/°C ORDER CODES HD2106.1K: The kit is composed of: instrument HD2106.1, conductivity/ temperature combined probe SP06T, connection cable for serial output HD2110CSNM, standard calibration solution HD8712 (12880ìS/cm), 4 1.5V alkaline batteries, operating manual, case and DeltaLog9...

Open the catalog to page 4
