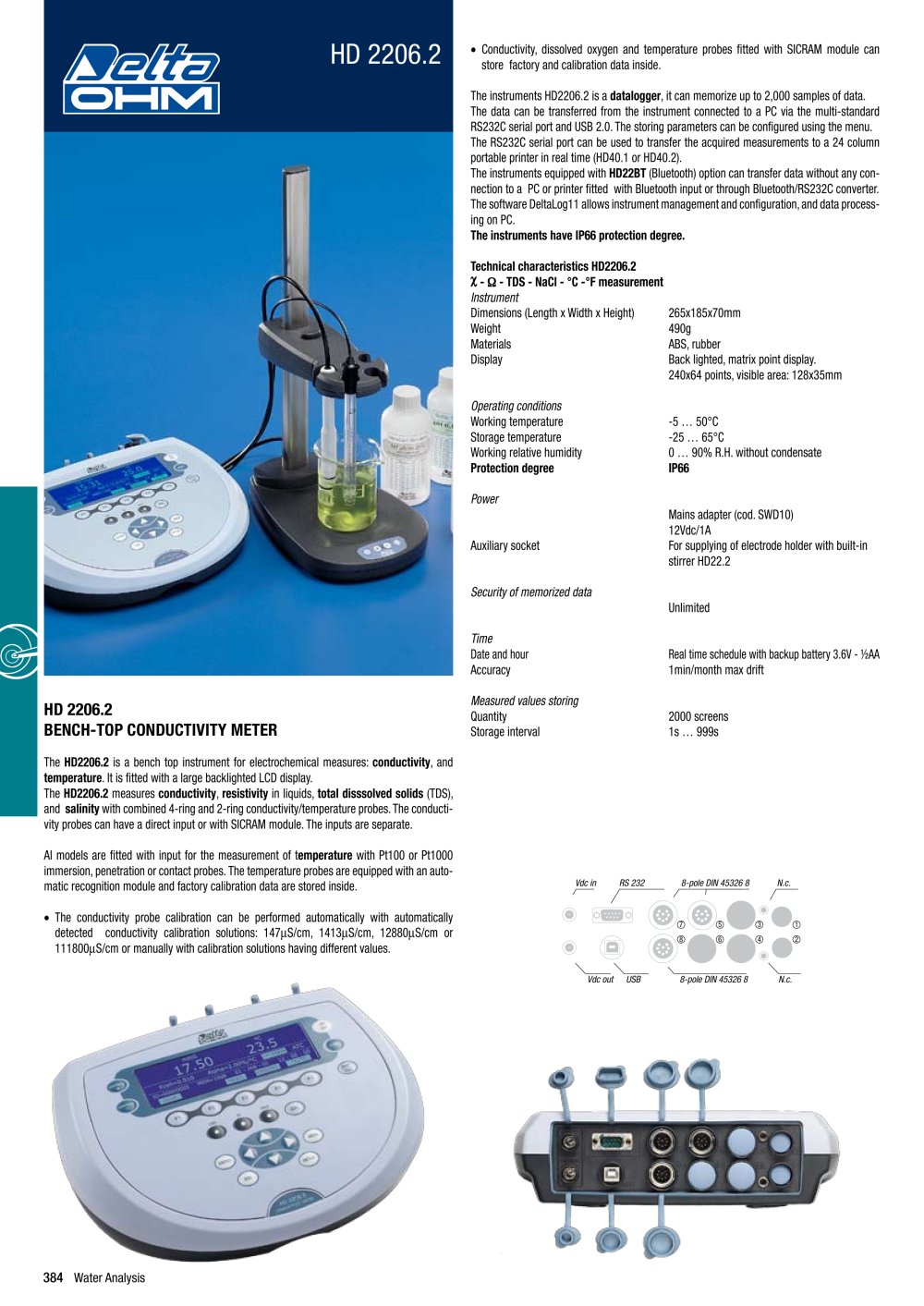

Benchtop Conductivity meters HD 2206.2 - 1

• Conductivity, dissolved oxygen and temperature probes fitted with SICRAM module can store factory and calibration data inside. The instruments HD2206.2 is a datalogger, it can memorize up to 2,000 samples of data. The data can be transferred from the instrument connected to a PC via the multi-standard RS232C serial port and USB 2.0. The storing parameters can be configured using the menu. The RS232C serial port can be used to transfer the acquired measurements to a 24 column portable printer in real time (HD40.1 or HD40.2). The instruments equipped with HD22BT (Bluetooth) option can transfer data without any connection to a PC or printer fitted with Bluetooth input or through Bluetooth/RS232C converter. The software DeltaLog11 allows instrument management and configuration, and data processing on PC. The instruments have IP66 protection degree. Technical characteristics HD2206.2 χ - Ω - TDS - NaCl - °C -°F measurement Instrument Dimensions (Length x Width x Height) Weight Materials Display Operating conditions Working temperature Storage temperature Working relative humidity Protection degree Power Auxiliary socket Mains adapter (cod. SWD10) 12Vdc/1A For supplying of electrode holder with built-in stirrer HD22.2 Security of memorized data Time Date and hour Accuracy HD 2206.2 BENCH-TOP CONDUCTIVITY METER 265x185x70mm 490g ABS, rubber Back lighted, matrix point display. 240x64 points, visible area: 128x35mm Real time schedule with backup battery 3.6V - ½AA 1min/month max drift Measured values storing Quantity Storage interval The HD2206.2 is a bench top instrument for electrochemical measures: conductivity, and temperature. It is fitted with a large backlighted LCD display. The HD2206.2 measures conductivity, resistivity in liquids, total disssolved solids (TDS), and salinity with combined 4-ring and 2-ring conductivity/temperature probes. The conductivity probes can have a direct input or with SICRAM module. The inputs are separate. Al models are fitted with input for the measurement of temperature with Pt100 or Pt1000 immersion, penetration or contact probes. The temperature probes are equipped with an automatic recognition module and factory calibration data are stored inside. • The conductivity probe calibration can be performed automatically with automatically detected conductivity calibration solutions: 147µS/cm, 1413µS/cm, 12880µS/cm or 111800µS/cm or manually with calibration solutions having different values.

Open the catalog to page 1

Benchtop Conductivity meters HD 2206.2 - 2

Calibration storage Quantity Last 8 calibrations of each physical quantity RS232C serial interface Type Baud rate Data bit Parity Stop bit Flow Control Length of serial cable RS232C electrically isolated Can be set from 1200 to 115200 baud 8 None 1 Xon/Xoff Max 15m USB Interface Type Bluetooth Interface 1.1 - 2.0 electrically isolated optional 8-pole male DIN45326 connector Automatic/manual temperature compensation 0...100°C with αT = 0.00…4.00%/°C Reference temperature 0…50°C χ/TDS conversion factor 0.4…0.8 Cell constants K (cm-1) already set 0.01 - 0.1 - 0.5 - 0.7 - 1.0 - 10.0 on the...

Open the catalog to page 2

Benchtop Conductivity meters HD 2206.2 - 3

ORDERING CODES HD2206.2: The kit is composed of: instrument HD2206.2 for the measurement of conductivity - resistivity - TDS - salinity - temperature, datalogger, stabilized power supply at mains voltage 100-240Vac/12Vdc-1A., instructions manual and software DeltaLog11. pH/mV electrodes, conductivity probes, dissolved oxygen probes, temperature probes, standard reference solutions for different measurement types, connection cables for pH electrodes with S7 connector, cables for data download to PC or printer have to be ordered separately. ACCESSORIES 9CPRS232: Connection cable SubD female...

Open the catalog to page 3
