Delta OHM

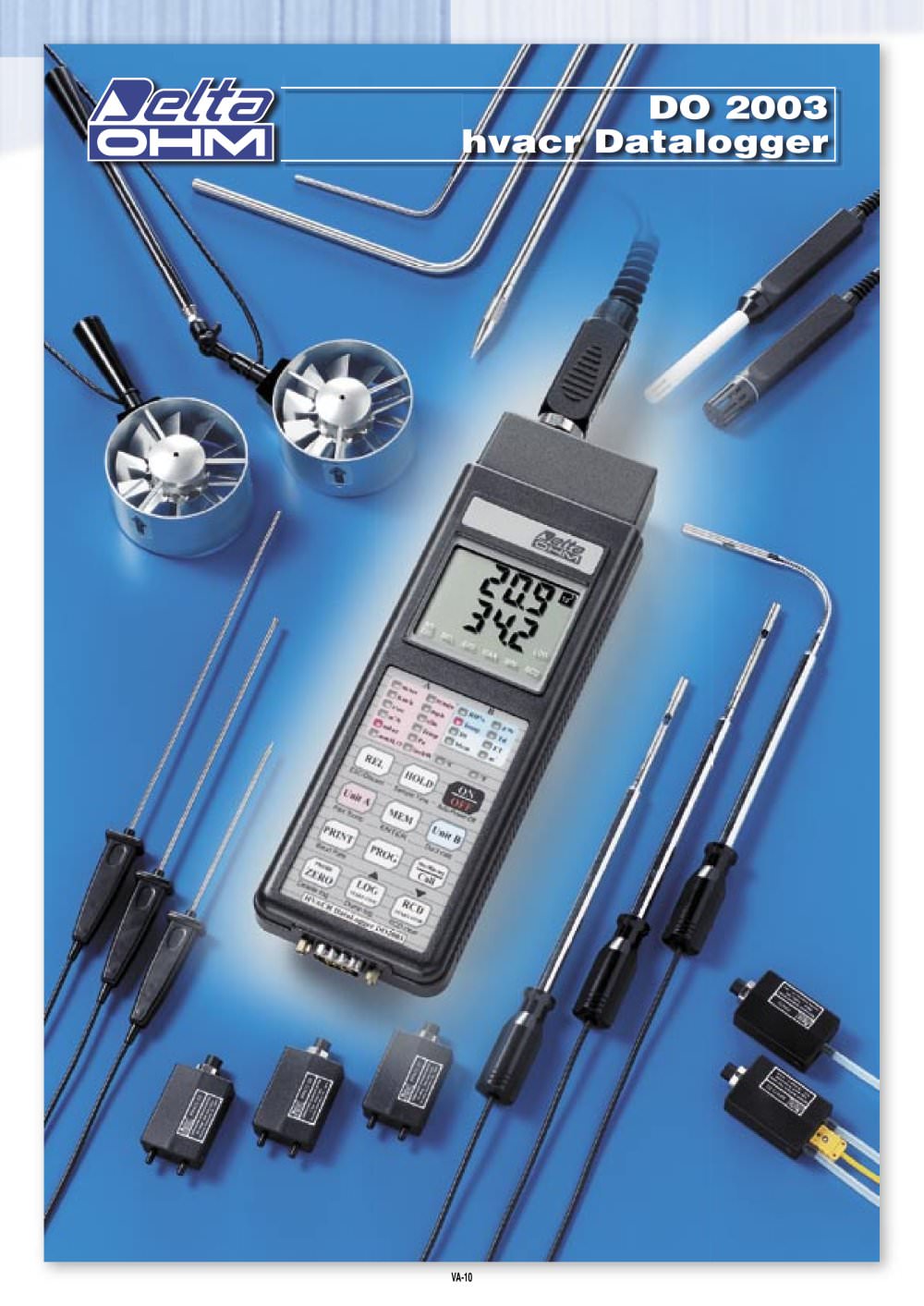

Anemometers DO 2003

Anemometers DO 2003

Product catalog summary

Overview: The DO2003 is a portable datalogger designed for HVACR applications, including air-conditioning, heating, ventilation, and energy saving. It supports various probes for measuring air speed, flow rate, humidity, temperature, and pressure.

Specifications:

Display: Dual LCD with 3½ digits, 12.5 mm figure height.
Inputs: Two inputs for air speed, pressure, and temperature/humidity probes.
Storage: Up to 12,000 readings, configurable storage interval from 1 second to 1 hour.
Power: Four 1.5V AA batteries, approximately 100 hours of operation.
Operating Conditions: Temperature -5°C to 50°C, humidity 0-90% RH non-condensing.
Dimensions: 72x210x40 mm, weight 320g.

Functions:

Data recording with maximum, average, and minimum calculations.
Relative measurement, hold function, and zero correction for differential pressure and hot-wire probes.

Probe Characteristics:

Hot-wire Probes: Measure air speed and temperature, with ranges up to 40 m/s and 110°C.
Vane Probes: Measure air speed and temperature, with diameters ranging from 16 mm to 100 mm.
Pitot Tube Probes: Measure air speed, flow, and differential pressure, with ranges up to 130 m/s and 100 mbar.
Temperature Probes: Pt100 sensors for immersion, pointed, and contact measurements, with ranges up to 500°C.
Humidity and Temperature Probes: Combined probes with capacitive sensors, accuracy of ±2% RH and ±0.3°C.
Pressure Probes: Barometric and differential pressure probes with ranges up to 2 bar.

Ordering Information: The DO2003 kit includes the instrument, RS232 serial cable, batteries, manual, carrying case, and Deltalog3 software. Probes are ordered separately.

Catalog excerpts

AP472S1… AP472S2… AP472S4… DO2003 is a portable instrument, datalogger specially designed to be used in the fi elds of air-conditioning, heating, ventilation, environmental comfort, energy saving both for industrial and residential application by means of a complete probes series. It measures: • Air speed and fl ow rate inside pipeline with hot-wire probes, vane probes or Pitot tube probes • relative humidity and temperature with combined probes • differential pressure up to 2000 mbar and barometric pressure • temperature with immersion, pointed or contact probes. This datalogger stores up to...

Open the catalog to page 2

TP472I TP474C TP473P T4... T3... T3... T2... T2... T1... Pitot tube probes: AP473 S1 - AP473 S2 - AP473 S3 - AP473 S4 AP473 S1 AP473 S2 AP473 S3 AP473 S4 Kind of measurement Air speed, calculated fl ow, differential pressure, Air temperature Working range Diff. pressure 10 mbar f.s. 20mbar f.s. 50mbar f.s. 100mbar f.s. Speed (*) 2 … 40m/s 2 … 55m/s 2 … 90m/s 2 … 130m/s Temperature -200…+460°C -200…+460°C -200…+460°C -200…+460°C Resolution Speed m/s 0.1 km/h 1 ft/min 0,01.103 mph 1 Temperature 0.1°C Accuracy Speed ±0.4%f.s. of pressure ±0.25%f.s. of pressure Temperature ±0.5°C ±0.5°C Minimum speed...

Open the catalog to page 3

HP475AC HP477DC HP474AC HP473AC HP472AC PP472SI…S8 AP473SI…S4 HP572AC %RH and K thermocouple temperature combined probe Dimensions Ø 26x170 mm. Connecting cable: 2 m long. Working range: -20°C…+80°C, 5…98% RH. %RH accuracy: ±2% °C accuracy: ±0.5°C. HP473AC %RH and temperature combined probe. Handle Ø 26x130 mm, probe Ø 14x110 mm. Connecting cable: 2 m long Working range -20°C…80°C, 5…98% RH. %RH accuracy: ±2% °C accuracy: ±0.30°C. HP474AC %RH and temperature combined probe. Handle Ø 26x130 mm, probe Ø 14x210 mm. Connecting cable: 2 m long . Working range: -40°C…+150°C, 5…98% RH. %RH accuracy:...

Open the catalog to page 4

T3-800TC T4-1000TC AP471S5 AP471S3 AP471S1 AP471S2 + - P5 P6 P7 P1 P2 P3 P4 PW Ordering codes DO 2003: The kit is provided with instrument, 9CPRS232 serial output cable, 4 1.5V alkaline batteries, instructions manual, carrying case and software Deltalog3. Probes have to be ordered separately. 9CPRS232: Female/female 9 pole sub D extension cable for RS232C (null modem). DeltaLog3: (vers.4.0 and following ones) Software for downloading and PC data management. Probes equipped with SICRAM modules PROBES FOR AIR SPEED MEASUREMENTS HOT-WIRE PROBES AP471 S1: Hot-wire telescopic probe, measuring range:...

Open the catalog to page 5

PP471 AP471 S4 HD11 HD33 HD75 RELATIVE HUMIDITY AND TEMPERATURE PROBES HP472AC: %RH and temperature combined probe, dimensions Ø 26x170 mm. 2 m connecting cable. HP572AC %RH and temperature combined probe, K thermocouple sensor. Dimensions Ø 26x170 mm. 2 m connecting cable. HP473AC: %RH and temperature combined probe. Dimensions: handle Ø 26x130 mm, probe Ø 14x110 mm. 2m connecting cable. HP474AC: %RH and temperature combined probe. Dimensions: handle Ø 26x130 mm, probe Ø 14x210 mm. 2m connecting cable. HP475AC: %RH and temperature combined probe. 2 m connecting cable. Handle Ø 26x110 mm. Stainless-steel...

Open the catalog to page 6
