Product catalog summary
Overview: This document provides specifications and features of heavy-duty balers and crushers designed for industrial and marine use. The equipment includes the DT-1000B and DT-1500B balers, the DT-500GC glass crusher, and the DT-120s oil filter and can crusher.
DT-1000B & DT-1500B Balers:
  • Designed for industry and marine use with a large loading hatch for easy waste deployment.
  • Constructed from stainless steel for durability and long life.
  • Compacts recyclable cardboard and PVC materials into bales.
  • DT-1500B compacts bales directly on a Euro-pallet; DT-1000B uses an ejection frame for bale removal.
  • Equipped with a powerful, low-noise hydraulic/electric unit.
DT-500GC Glass Crusher:
  • Heavy-duty crusher suitable for vessels with large crews.
  • Stainless steel design ensures durability.
  • Uses Big bags for safe collection of crushed glass, facilitating easy transport onshore.
  • Compatible with C-500 containers for interchangeable use in recycling stations.
DT-120s Oil Filter & Can Crusher:
  • Designed for marine and offshore use, withstanding severe weather conditions.
  • Compact design saves space, suitable for deck or machine room placement.
  • Ideal for compacting used oil filters and reducing volume of tins and paint buckets.
  • Features a separate container for waste oil drainage.
  • Equipped with a powerful, low-noise hydraulic/electric unit.
Technical Specifications:
  • DT-1500B: Dimensions 1563 x 1055 x 2825 mm, Volume 2.5m3, Force 15t, Weight 475Kg.
  • DT-1000B: Dimensions 1075 x 862 x 2568 mm, Volume 1.1m3, Force 10t, Weight 290Kg.
  • DT-120s: Dimensions 780 x 370 x 2037 mm, Volume 0.07m3, Force 9t, Weight 175Kg.
  • DT-500GC: Dimensions 975 x 1006 x 1494 mm, Weight 236Kg.
Additional Information:
  • The DT-500GC produces fine-grained glass fragments suitable for recycling or drainage purposes.
  • Bale size from balers is operator-determined, with DT-1500B using 3 strappings and DT-1000B using 2.
See more

Catalog excerpts

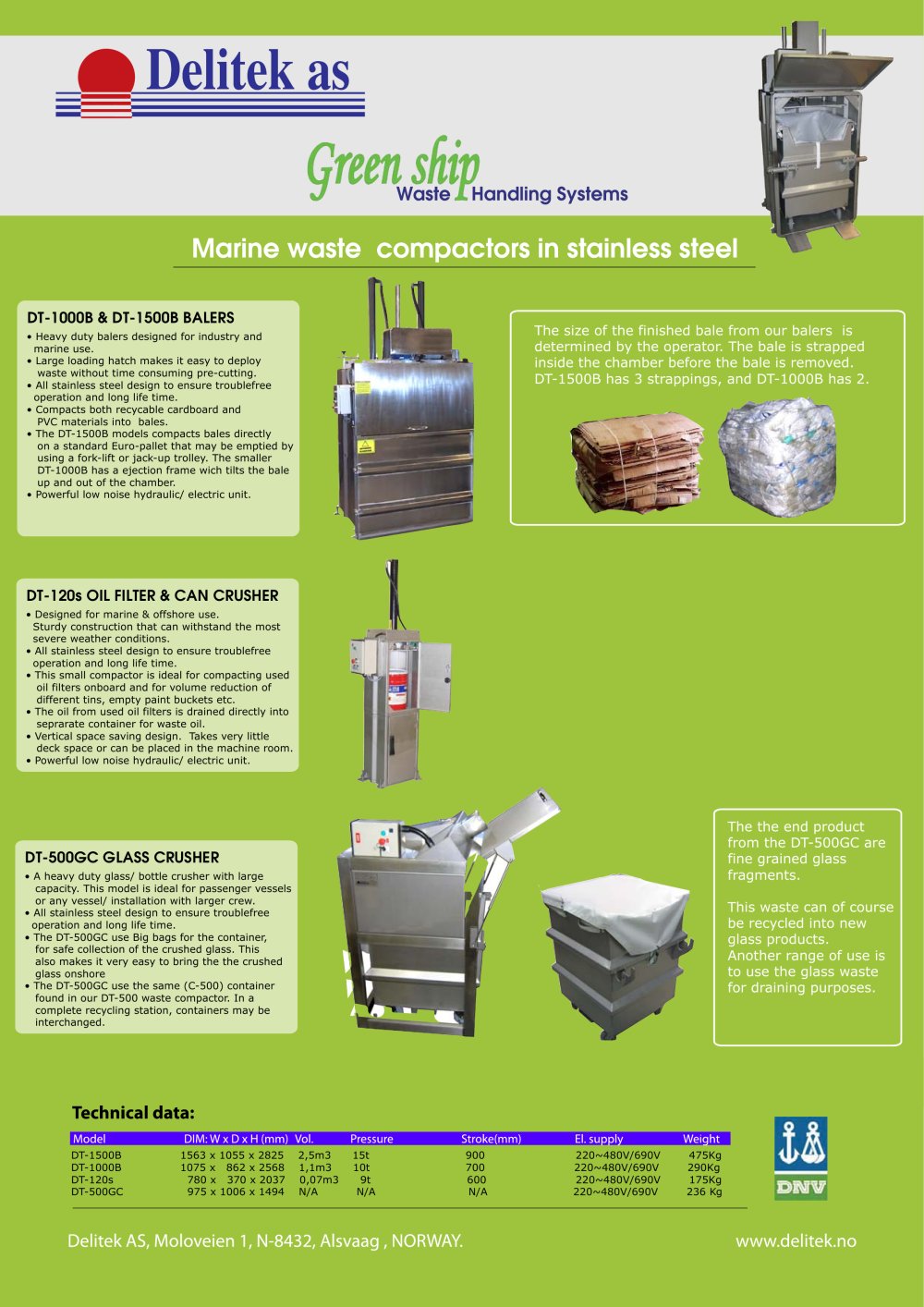

Green Ship waste compactors flyer 2-1

? Heavy duty balers designed for industry and marine use. ? Large loading hatch makes it easy to deploy waste without time consuming pre-cutting.? All stainless steel design to ensure troublefree operation and long life time.? Compacts both recycable cardboard and PVC materials into bales.? The DT-1500B models compacts bales directly on a standard Euro-pallet that may be emptied by using a fork-lift or jack-up trolley. The smaller DT-1000B has a ejection frame wich tilts the bale up and out of the chamber. ? Powerful low noise hydraulic/ electric unit. > ? Designed for marine & offshore use. Sturdy construction that can withstand the most severe weather conditions.? All stainless steel design to ensure troublefree operation and long life time.? This small compactor is ideal for compacting used oil filters onboard and for volume reduction of different tins, empty paint buckets etc.? The oil from used oil filters is drained directly into seprarate container for waste oil.? Vertical space saving design. Takes very little deck space or can be placed in the machine room.? Powerful low noise hydraulic/ electric unit. > ? A heavy duty glass/ bottle crusher with large capacity. This model is ideal for passenger vessels or any vessel/ installation with larger crew.? All stainless steel design to ensure troublefree operation and long life time.? The DT-500GC use Big bags for the container, for safe collection of the crushed glass. This also makes it very easy to bring the the crushed glass onshore? The DT-500GC use the same (C-500) container found in our DT-500 waste compactor. In a complete recycling station, containers may be interchanged. DT-1500B 1563 x 1055 x 2825 2,5m3 15t 900 220~480V/690V 475Kg DT-1000B 1075 x 862 x 2568 1,1m3 10t 700 220~480V/690V 290KgDT-120s 780 x 370 x 2037 0,07m3 9t 600 220~480V/690V 175Kg DT-500GC 975 x 1006 x 1494 N/A N/A N/A 220~480V/690V 236 Kg >
