Glass crusher compactor

Glass crusher compactor

Product catalog summary
Introduction
The DT-500GC is a glass crusher developed by Delitek AS, designed for use on passenger ships, ferries, and environmental stations. It is based on the DT-500 waste compactor and is intended for the destruction of various glass bottles, producing small glass fragments for easy recycling.
Key Features
  • Space-saving design suitable for vessels with limited space.
  • Produces small glass fragments collected in 'big-bags' for easy handling and recycling.
  • 500-liter container capacity allows for high capacity and longer intervals between deployments.
Technical Specifications
  • Volume container: 0.5 cubic meters
  • External dimensions: 75mm x 1006mm x 1495mm
  • Total height: 1495mm
  • Electrical system: 220V/380~480V, 16A, 3 phase
  • Power consumption: 1.5 kW
  • Weight: 236 Kg
  • Material: Stainless steel
Benefits
  • Effective and environmentally friendly solution for glass waste management.
  • Easy to handle and replace 'big-bags' when full.
  • Crushed glass can be directly recycled or used as drainage fillings.
See more

Catalog excerpts

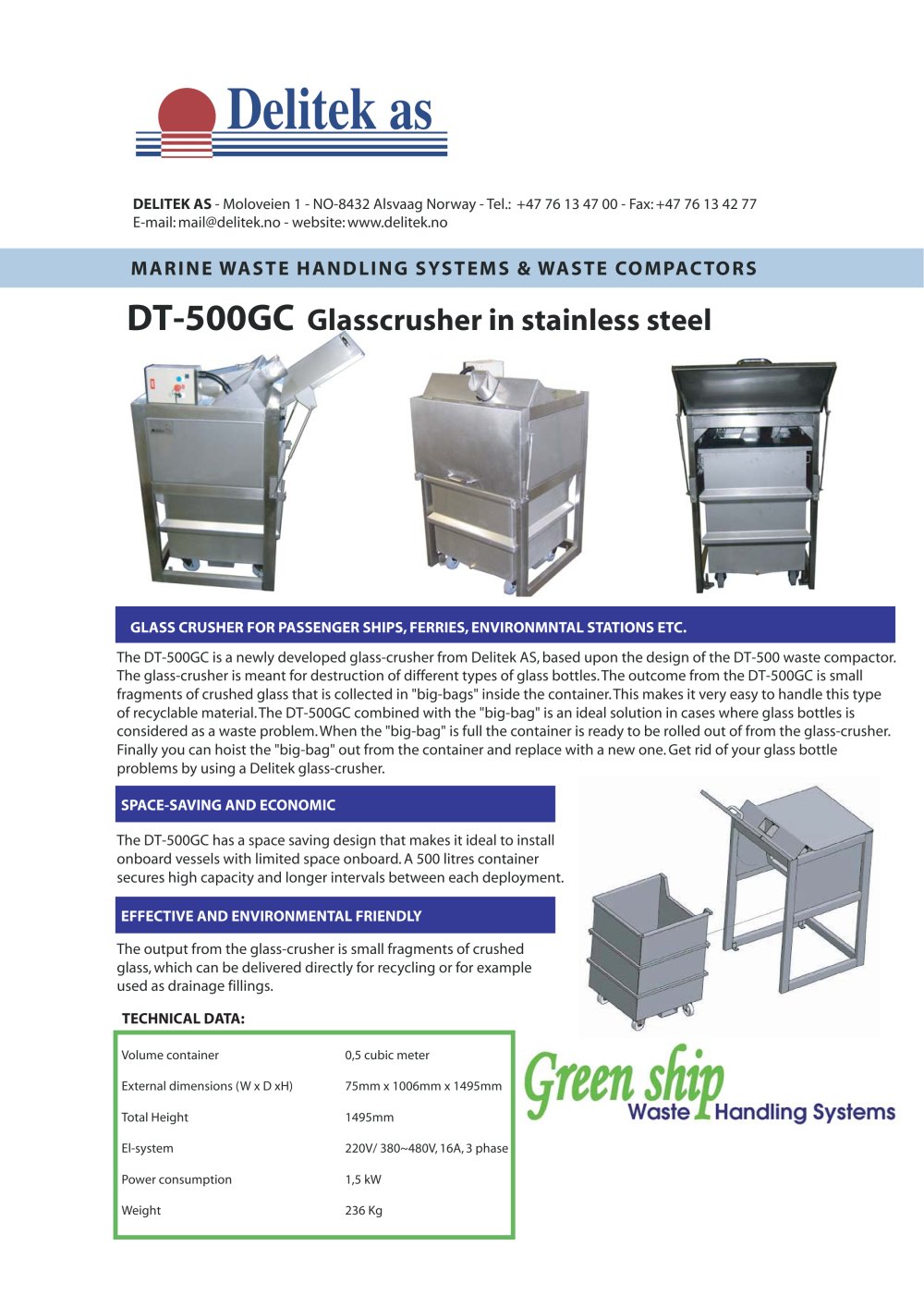

Glass crusher compactor-1

GLASS CRUSHER FOR PASSENGER SHIPS, FERRIES, ENVIRONMNTAL STATIONS ETC. SPACE-SAVING AND ECONOMICEFFECTIVE AND ENVIRONMENTAL FRIENDLY The DT-500GC is a newly developed glass-crusher from Delitek AS, based upon the design of the DT-500 waste compactor. The glass-crusher is meant for destruction of different types of glass bottles. The outcome from the DT-500GC is small fragments of crushed glass that is collected in "big-bags" inside the container. This makes it very easy to handle this type of recyclable material. The DT-500GC combined with the "big-bag" is an ideal solution in cases where glass bottles is considered as a waste problem. When the "big-bag" is full the container is ready to be rolled out of from the glass-crusher. Finally you can hoist the "big-bag" out from the container and replace with a new one. Get rid of your glass bottle problems by using a Delitek glass-crusher. The DT-500GC has a space saving design that makes it ideal to install onboard vessels with limited space onboard. A 500 litres container secures high capacity and longer intervals between each deployment. The output from the glass-crusher is small fragments of crushed glass, which can be delivered directly for recycling or for example used as drainage fillings. TECHNICAL DATA: > Volume container 0,5 cubic meterExternal dimensions (W x D xH) 75mm x 1006mm x 1495mm Total Height 1495mm El-system 220V/ 380~480V, 16A, 3 phase Power consumption 1,5 kWWeight 236 Kg size="-1">
