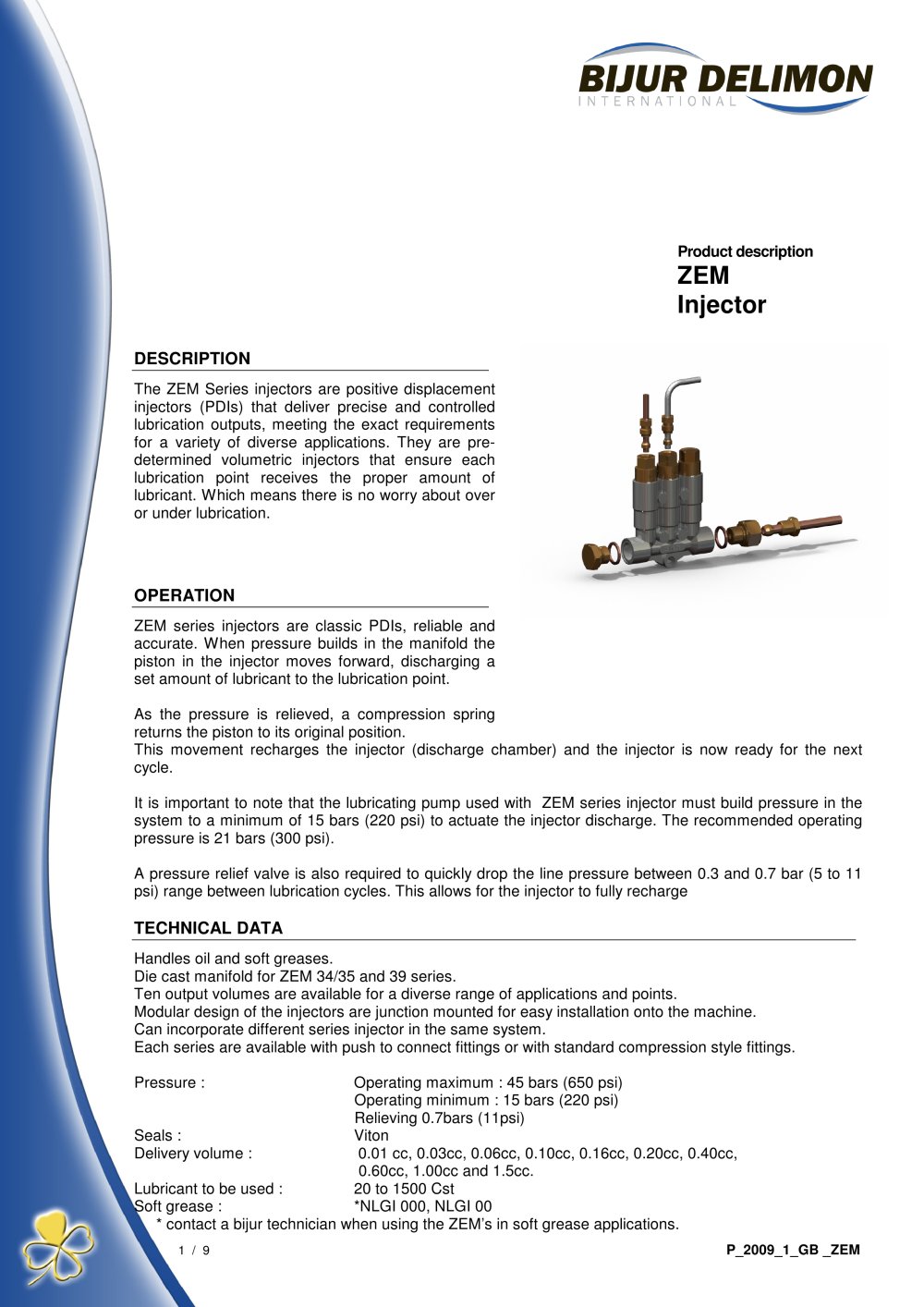

1 / 9 P_2009_1_GB _ZEM Product description ZEM Injector DESCRIPTION The ZEM Series injectors are positive displacement injectors (PDIs) that deliver precise and controlled lubrication outputs, meeting the exact requirements for a variety of diverse applications. They are predetermined volumetric injectors that ensure each lubrication point receives the proper amount of lubricant. Which means there is no worry about over or under lubrication. OPERATION ZEM series injectors are classic PDIs, reliable and accurate. When pressure builds in the manifold the piston in the injector moves forward, discharging a set amount of lubricant to the lubrication point. As the pressure is relieved, a compression spring returns the piston to its original position. This movement recharges the injector (discharge chamber) and the injector is now ready for the next cycle. It is important to note that the lubricating pump used with ZEM series injector must build pressure in the system to a minimum of 15 bars (220 psi) to actuate the injector discharge. The recommended operating pressure is 21 bars (300 psi). A pressure relief valve is also required to quickly drop the line pressure between 0.3 and 0.7 bar (5 to 11 psi) range between lubrication cycles. This allows for the injector to fully recharge TECHNICAL DATA Handles oil and soft greases. Die cast manifold for ZEM 34/35 and 39 series. Ten output volumes are available for a diverse range of applications and points. Modular design of the injectors are junction mounted for easy installation onto the machine. Can incorporate different series injector in the same system. Each series are available with push to connect fittings or with standard compression style fittings. Pressure : Operating maximum : 45 bars (650 psi) Operating minimum : 15 bars (220 psi) Relieving 0.7bars (11psi) Seals : Viton Delivery volume : 0.01 cc, 0.03cc, 0.06cc, 0.10cc, 0.16cc, 0.20cc, 0.40cc, 0.60cc, 1.00cc and 1.5cc. Lubricant to be used : 20 to 1500 Cst Soft grease : *NLGI 000, NLGI 00 * contact a bijur technician when using the ZEM’s in soft grease applications.

2 / 9 P_2009_1_GB _ZEM HOW TO ORDER The ZEM Injectors use a smart numbering system that allows you to tailor the system to meet your needs. Example: To order a three outlet 35 series injector with push to connect fittings, where the discharge volumes are 0.10 cc + 0.40 cc + 0.00 cc, use the folowing reference ZEM 3PDGX Injector code ZEM Injector type 32 Serie 32 33 Serie 33 34 Serie 34 35 Serie 35 39 Serie 39 Number of outlets 1 1 outlet (2 series 32/33/34/35) 25 2 outlets (series 34/35/39) 3 3 outlets (series 34/35/39) 5 5 outlets (series 34/35) Outlet type C M8x1 for compression screw and...

3 / 9 P_2009_1_GB _ZEM ZEM 32 ZEM 32 series injectors are used with junctions. They are available with a standard compression connection or also with push to connect fittings. Junctions reference 32 serie Ref # Outlet # Ø Tube 2x tapping Filter Main Inlet rep f Outlet A mm B mm C mm D mm E mm ZEM 32 M 14 1 4 mm M 8 x 1 M 8 x 1 n/a n/a n/a n/a ZEM 32 M 24 2 4 mm M 8 x 1 M 8 x 1 17 13 49 10,5 ZEM 32 M 26 2 6 mm M 10 x 1 M 8 x 1 17 13 52 10,5 ZEM 32 M 28 2 8 mm M 14 x 1,5 M 8 x 1 20 18 61 11 ZEM 32 M 34 3 4 mm M 9 x 1 M 8 x 1 17 13 62 10,5 percing Ø 4,3 ZEM 32 M 36 3 6 mm M 10 x 1 M 8 x 1 17...

4 / 9 P_2009_1_GB _ZEM ZEM 34 ZEM 34 series injectors are available as 2, 3 and 5 outlets for use either with compression or push to connect fittings. Legend Mark Designation Mark Designation 1 21 mm for push to connect fittings 3 Inlet M 10 x 1 2 Outlet M 8 x 1

5 / 9 P_2009_1_GB _ZEM ZEM 35 ZEM 35 series injectors are available as 1, 2, 3 and 5 outlets for use either with compression or push to connect fittings. Legend Mark Designation Mark Designation 1 13 mm for push to connect fittings 3 Inlet M 12 x 1 2 Outlet M 8 x 1

6 / 9 P_2009_1_GB _ZEM ZEM 39 ZEM 39 Series injectors are available in 1, 2, and 3 outlets outlets for use either with compression or push to connect fittings. Legend Mark Designation Mark Designation 1 Hexagonal head 14 mm flat 4 13 mm for push to connect outlets 2 17 mm flat 5 2 inlet M 12 x 100 3 M 14 x 1,5

7 / 9 P_2009_1_GB _ZEM ACCESSORIES Nipple ZEM M 8 x 1 reference 292401 Nipple ZEM M 10 x 1 reference 292402

8 / 9 P_2009_1_GB _ZEM ACCESSORIES (continuation) Nipple ZEM M 12 x 1 reference 292403
