Valve dividers: Divider valve type FD.
5Pages

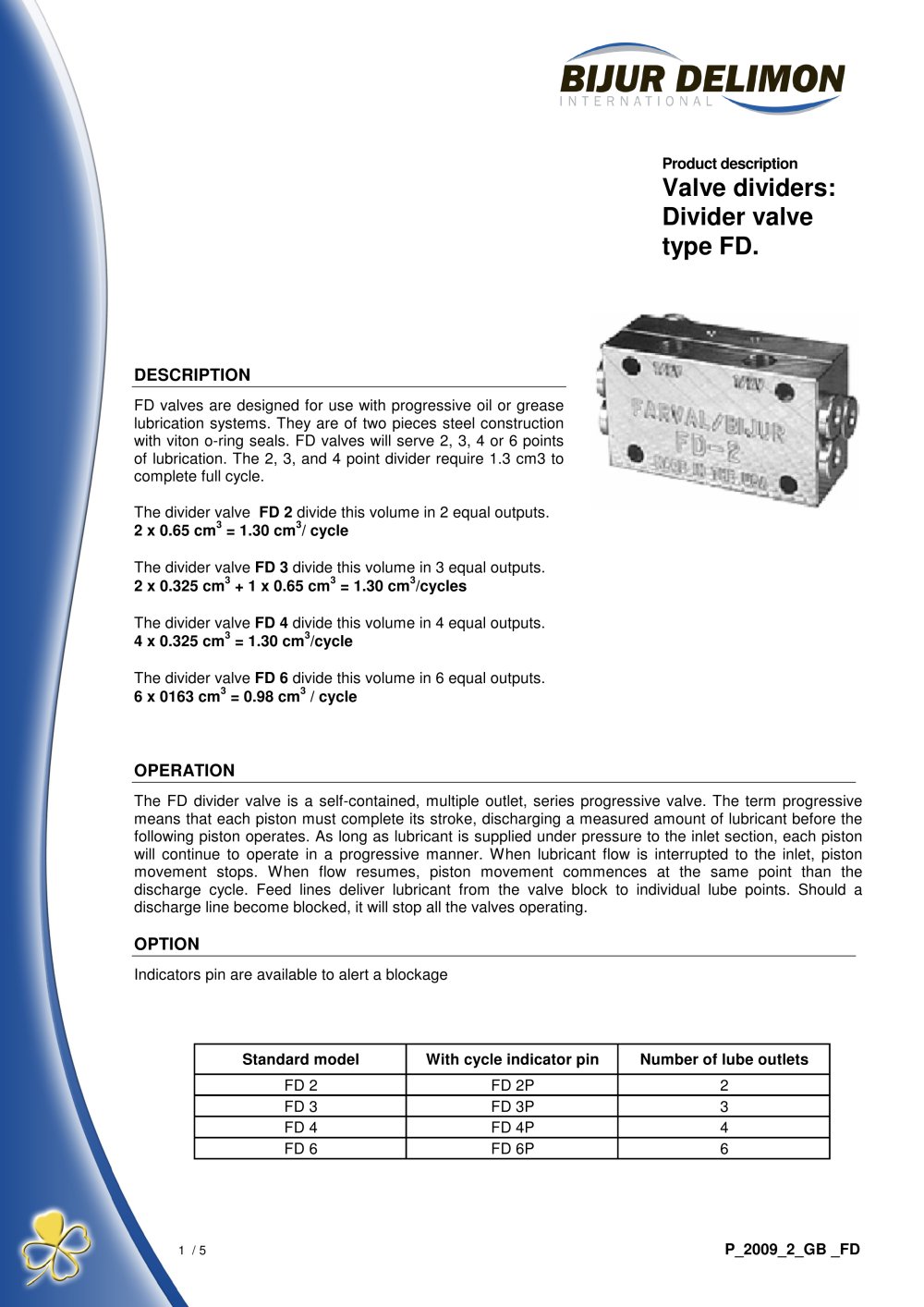

1 / 5 P_2009_2_GB _FD Product description Valve dividers: Divider valve type FD. DESCRIPTION FD valves are designed for use with progressive oil or grease lubrication systems. They are of two pieces steel construction with viton o-ring seals. FD valves will serve 2, 3, 4 or 6 points of lubrication. The 2, 3, and 4 point divider require 1.3 cm3 to complete full cycle. The divider valve FD 2 divide this volume in 2 equal outputs. 2 x 0.65 cm3 = 1.30 cm3/ cycle The divider valve FD 3 divide this volume in 3 equal outputs. 2 x 0.325 cm3 + 1 x 0.65 cm3 = 1.30 cm3/cycles The divider valve FD 4 divide this volume in 4 equal outputs. 4 x 0.325 cm3 = 1.30 cm3/cycle The divider valve FD 6 divide this volume in 6 equal outputs. 6 x 0163 cm3 = 0.98 cm3 / cycle OPERATION The FD divider valve is a self-contained, multiple outlet, series progressive valve. The term progressive means that each piston must complete its stroke, discharging a measured amount of lubricant before the following piston operates. As long as lubricant is supplied under pressure to the inlet section, each piston will continue to operate in a progressive manner. When lubricant flow is interrupted to the inlet, piston movement stops. When flow resumes, piston movement commences at the same point than the discharge cycle. Feed lines deliver lubricant from the valve block to individual lube points. Should a discharge line become blocked, it will stop all the valves operating. OPTION Indicators pin are available to alert a blockage Standard model With cycle indicator pin Number of lube outlets FD 2 FD 2P 2 FD 3 FD 3P 3 FD 4 FD 4P 4 FD 6 FD 6P 6

3 / 5 P_2009_2_GB _FD TECHNICAL DRAWING, DIVIDER VALVE TYPE FD
