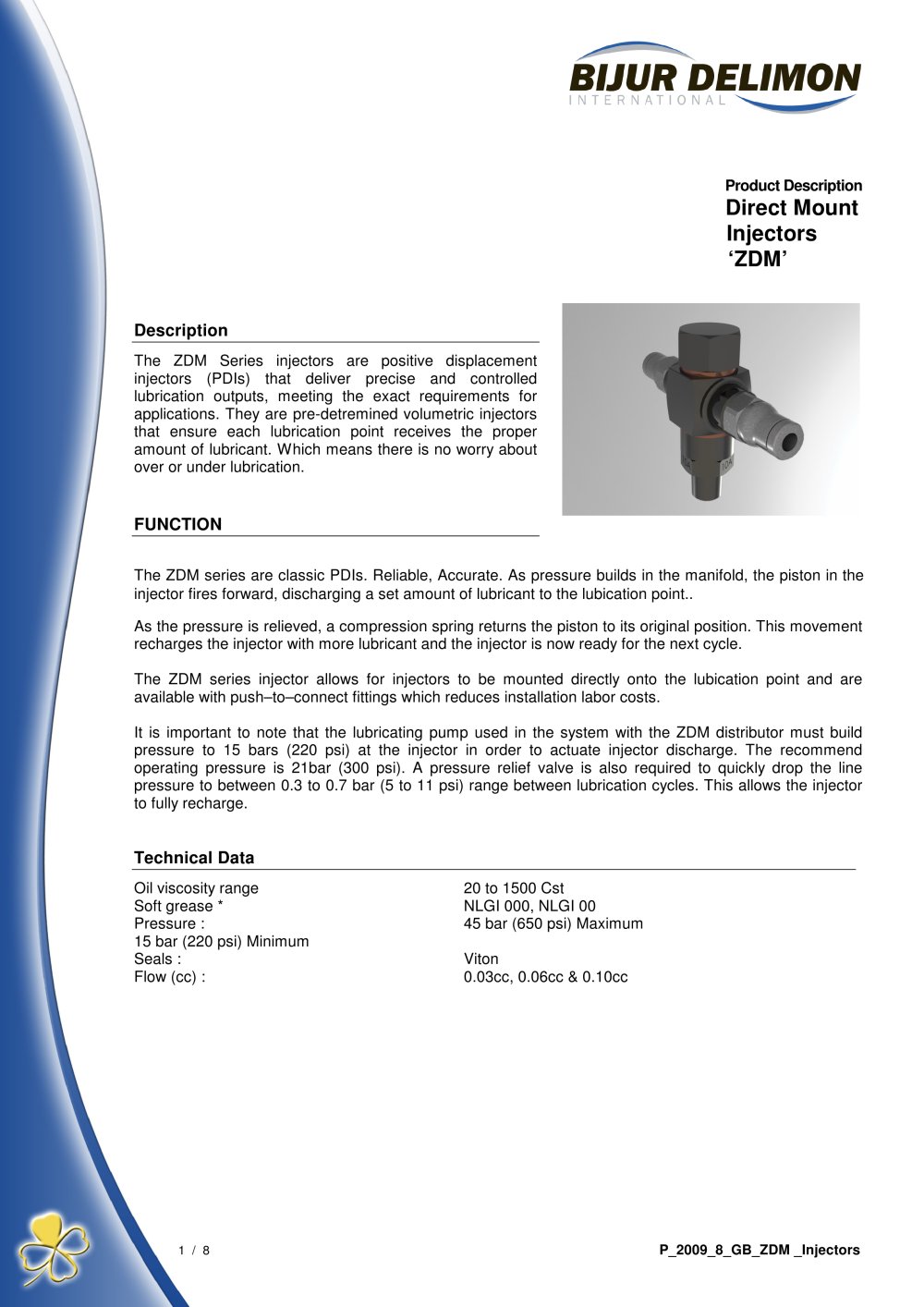

1 / 8 P_2009_8_GB_ZDM _Injectors Product Description Direct Mount Injectors ‘ZDM’ Description The ZDM Series injectors are positive displacement injectors (PDIs) that deliver precise and controlled lubrication outputs, meeting the exact requirements for applications. They are pre-detremined volumetric injectors that ensure each lubrication point receives the proper amount of lubricant. Which means there is no worry about over or under lubrication. FUNCTION The ZDM series are classic PDIs. Reliable, Accurate. As pressure builds in the manifold, the piston in the injector fires forward, discharging a set amount of lubricant to the lubication point.. As the pressure is relieved, a compression spring returns the piston to its original position. This movement recharges the injector with more lubricant and the injector is now ready for the next cycle. The ZDM series injector allows for injectors to be mounted directly onto the lubication point and are available with push–to–connect fittings which reduces installation labor costs. It is important to note that the lubricating pump used in the system with the ZDM distributor must build pressure to 15 bars (220 psi) at the injector in order to actuate injector discharge. The recommend operating pressure is 21bar (300 psi). A pressure relief valve is also required to quickly drop the line pressure to between 0.3 to 0.7 bar (5 to 11 psi) range between lubrication cycles. This allows the injector to fully recharge. Technical Data Oil viscosity range 20 to 1500 Cst Soft grease * NLGI 000, NLGI 00 Pressure : 45 bar (650 psi) Maximum 15 bar (220 psi) Minimum Seals : Viton Flow (cc) : 0.03cc, 0.06cc & 0.10cc

2 / 8 P_2009_8_GB_ZDM _Injectors HOW TO ORDER The ZDM Injectors use a smart numbering system that allows you to tailor the injector to meet your needs. Example: To order a Banjo 90° injector with a push to connect fitting for a 4mm tube and with a 1/8 BSPT connecting point with an discharge volume of 0.03 cc, use the code ZDM BP4CA. Injector code ZDM Injector type A Straight B Banjo 90° C Banjo 180° D Straight + Banjo 90° Outlet type C M8x1 for compression 2 (4mm tube) P Push to connect Tube diameter 4 4 mm OD 6 6 mm OD (only for type A and D) Connection type to the lub point A M 8 x 1C B M 10...

3 / 8 P_2009_8_GB_ZDM _Injectors THE PRINCIPLE COMPONENTS OF ZDM INJECTORS This chamber is full of oil

4 / 8 P_2009_8_GB_ZDM _Injectors ZDM TYPE A Type A Tube size 4 or 6 mm with push to connect or compression fittings. Discharge rates : – 0.03cc, 0.06cc & 0.10cc Connection to the lubication point : M8 x 1, M10 x 1, 1/8 BSPT

5 / 8 P_2009_8_GB_ZDM _Injectors ZDM TYPE B Type B Tube size 4 mm with push to connect or compression fittings. Discharge rates: 0.03cc, 0.06cc & 0.10cc Connection to the lubication point : M8 x 1, M10 x 1, 1/8 BSPT

6 / 8 P_2009_8_GB_ZDM _Injectors ZDM TYPE C Type C Tube size 4 mm with push to connect or compression fittings. Discharge rates: 0.03cc, 0.06cc & 0.10cc Connection to the lubication point: M8 x 1, M10 x 1, 1/8 BSPT

7 / 8 P_2009_8_GB_ZDM _Injectors ZDM TYPE D Type D Tube size 4 or 6mm with push to connect or compression fittings. Discharge rates : – 0.03cc, 0.06cc & 0.10cc Connection to the lubication point: M8 x 1, M10 x 1, 1/8 BSPT
