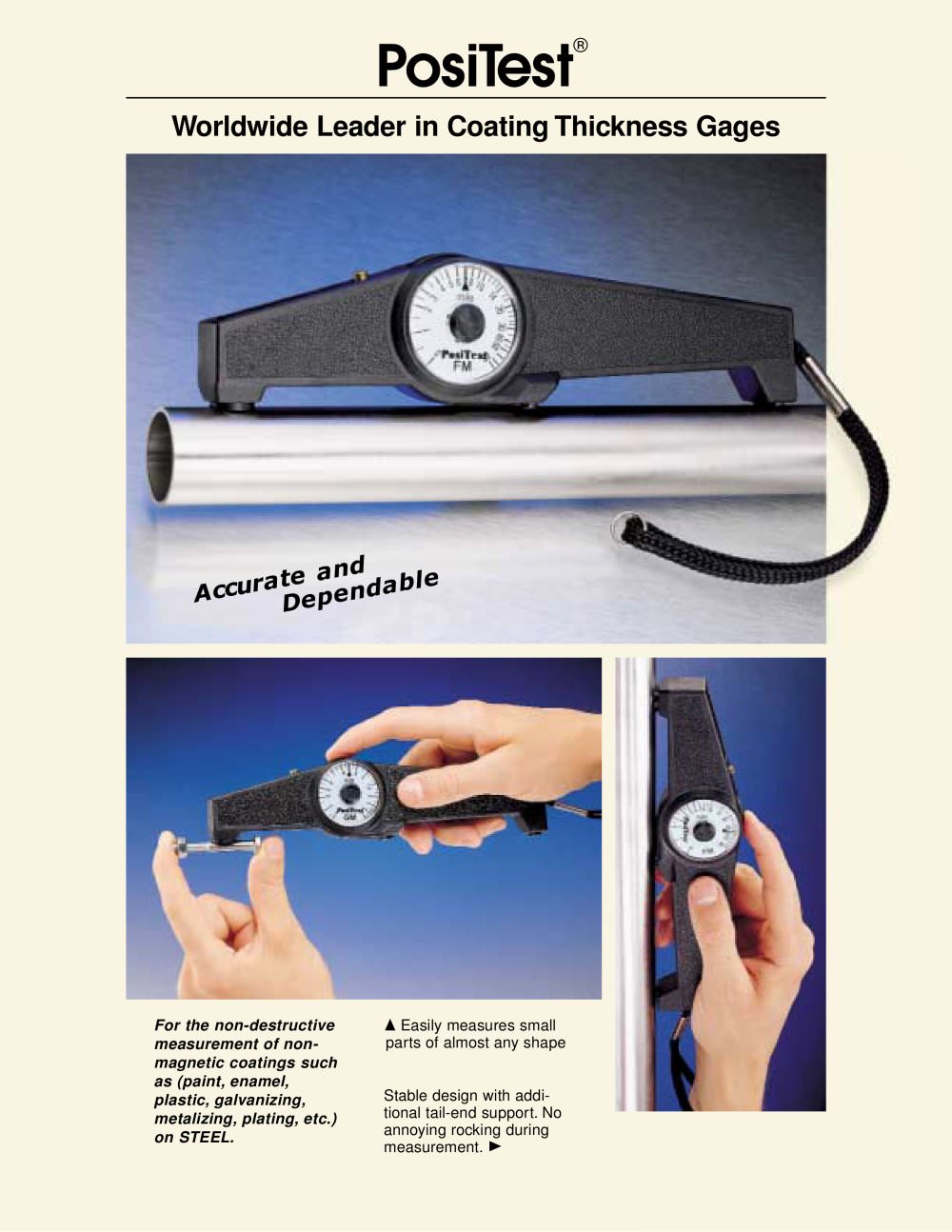

PosiTest FM/GM - Mechanical Gage

Product catalog summary

Overview: This document provides detailed information about a coating thickness gauge designed for non-destructive measurement of non-magnetic coatings on steel. It highlights the gauge's accuracy, durability, and ease of use.

Specifications:

Accuracy: The gauge is permanently calibrated and features a highly wear-resistant carbide probe for long life and continuous accuracy. It includes a modern scale range suitable for various applications.
Durability: The gauge has an extra rugged housing resistant to mechanical shock, water, acid, and solvents. It operates on a permanent rare-earth cobalt magnet, making it explosion-proof and refinery safe.
Ease of Use: The gauge provides visual and audible indicators for thickness readings, features 'V' grooves for correct positioning on cylindrical objects, and is compact and lightweight for use in any position.

Scale and Tolerance:

Scale FM: 0–80 mils with a tolerance of ±0.2 mils up to 4 mils and ±5% over 4 mils.
Scale F: 0–2000 microns with a tolerance of ±5 microns up to 100 microns and ±5% over 100 microns.
Scale GM: 0–8 mils with a tolerance of ±0.04 mils up to 0.8 mils and ±5% over 0.8 mils.
Scale G: 0–200 microns with a tolerance of ±1 micron up to 20 microns and ±5% over 20 microns.

Applications: Suitable for measuring coatings such as hot dip galvanizing, hard chrome metalizing, paint, enamel, and plastic coatings on steel.

Contact Information: DeFelsko Corporation, 802 Proctor Avenue, P.O. Box 676, Ogdensburg, New York 13669-0676. Phone: 315-393-4450 or Toll-Free 1-800-448-3835 (U.S.A.). Email: [email protected].
