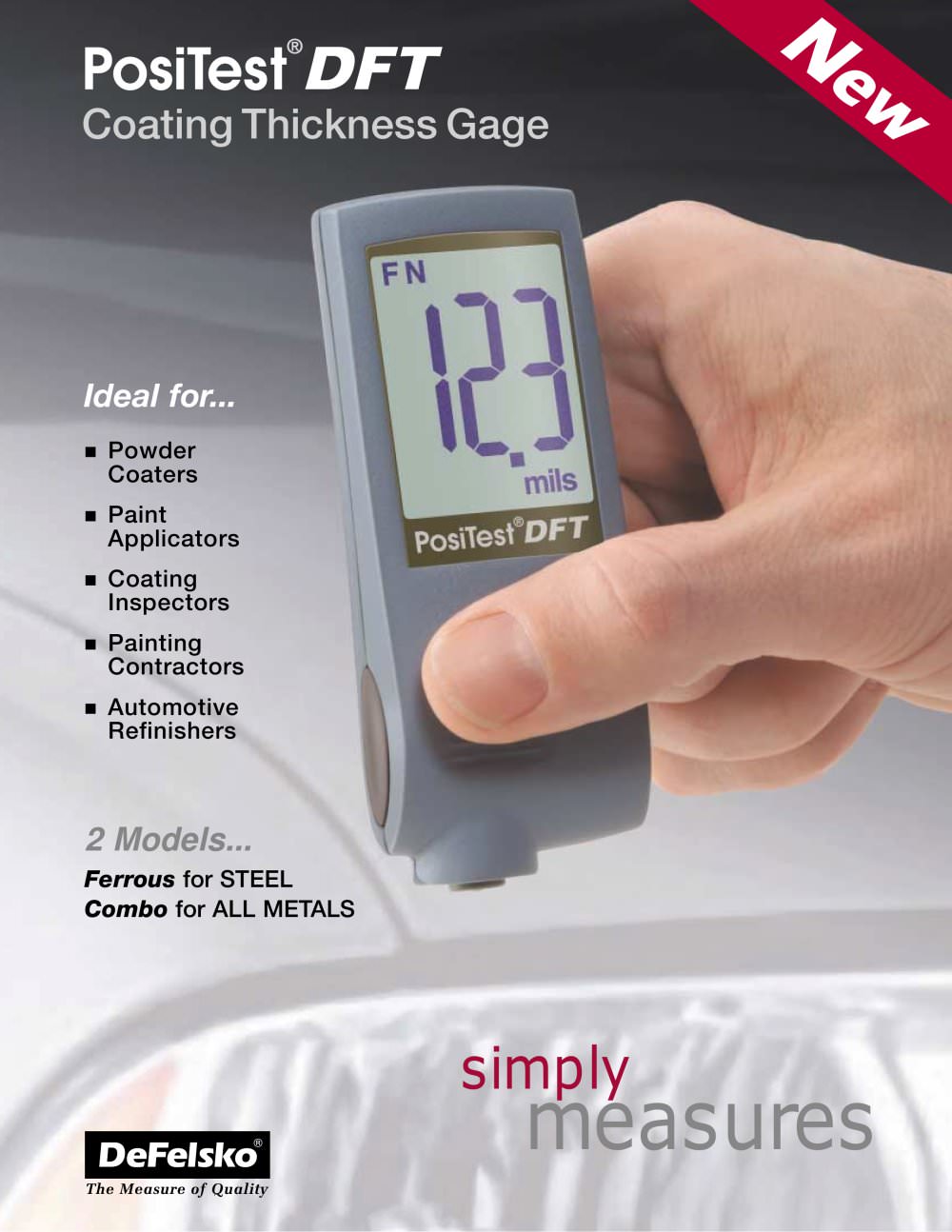

Overview
DeFelsko Corporation offers two models of coating thickness gauges designed for different applications. The PosiTest DFT Ferrous is tailored for measuring non-magnetic coatings on steel, while the PosiTest DFT Combo is versatile, measuring both non-magnetic coatings on steel and non-conductive coatings on metals like aluminum and brass. The Combo model automatically recognizes the substrate for measurement.

Ideal Users

• Powder Coaters
• Paint Applicators
• Coating Inspectors
• Painting Contractors
• Automotive Refinishers

Features

• Fast and repeatable measurements
• No calibration required for most applications
• ZERO feature for rough or curved surfaces
• RESET feature for when no zero reference is available
• Strong, wear-resistant, ruby-tipped probe
• Audible and visible measurement indication
• V-groove in probe for positioning on cylindrical parts
• Mils/Microns switchable
• Basic instructions on the back of each gauge

Specifications

• Accuracy: 0 – 40 mils / 0 – 1000 µm with ±(0.1 mils + 3%) / ±(2µm + 3%)
• Measurement Range: 0 – 40 mils / 0 – 1000 µm
• Size: 4 x 1.5 x 0.9 in. / 100x38x23 mm
• Weight: 2.5 oz. / 70 g

Compliance and Certification
The gauges conform to various international standards including ISO 2178/2360/2808, ASTM standards, and others. A Certificate of Calibration traceable to NIST is available.

Package Contents
Each gauge comes with a built-in probe, plastic shims, a hard shell storage case, an AAA battery, instructions, and a one-year warranty.

Contact Information
DeFelsko Corporation, 802 Proctor Ave., P.O. Box 676, Ogdensburg, NY 13669 USA. Toll-Free: 1-800-448-3835, Phone: 315-393-4450, FAX: 315-393-8471, Email: [email protected], Website: www.defelsko.com
