PosiTest Adhesion Tester

Product catalog summary

Specifications
The PosiTest Pull-Off Adhesion Tester is designed to measure the adhesion strength of coatings on various substrates such as metal, wood, and concrete. It features a dolly size of 20 mm with a measurement range of 0 to 3000 psi (0 to 20 MPa) and an accuracy of ±1% full scale. The resolution is 1 psi (0.01 MPa). The kit weighs 12 lbs (5.5 kg) and includes a carrying case with dimensions of 17 in x 13 in x 6 in. Power options include manual operation with 2 AAA batteries or automatic operation with built-in rechargeable NiMH batteries.

Kit Contents
Each kit includes an adhesion tester with a digital display, 20 mm aluminum test dollies (20), an abrasive pad, a cutting tool, adhesive with mixing sticks and palettes, cotton swabs, an instruction booklet and video, a Certificate of Calibration traceable to NIST, a two-year warranty, and a sturdy, lightweight carrying case.

Software Features
The PosiSoft software for Windows provides analysis capabilities, displaying pressure, rate, test duration, and dolly size for up to 200 pulls. It calculates max, min, mean, and standard deviation, and offers real-time graphing of individual pulls. The software supports multiple languages and includes a USB cable for data export.

Options and Accessories
Optional accessories include a 50 mm accessory kit for lower bond strength finishes, a drilling template for isolating test areas, additional adhesive kits, and various dolly sizes (10, 14, 20, and 50 mm).

Models
The PosiTest is available in two models: Manual and Automatic. The manual model is portable and requires no external power source, while the automatic model features an electronically controlled hydraulic pump for smooth and continuous pressure application. Both models are durable, accurate, and versatile, conforming to international standards such as ASTM D4541/D7234 and ISO 4624/16276-1.

Key Features
The tester includes a self-alignment feature to compensate for misalignment, ensuring uniform distribution of pulling force. It is environmentally sealed, weatherproof, dustproof, and shockproof, making it suitable for both lab and field use. The device also features a pull rate indicator, internal memory, and a large LCD display for easy operation.

Catalog excerpts

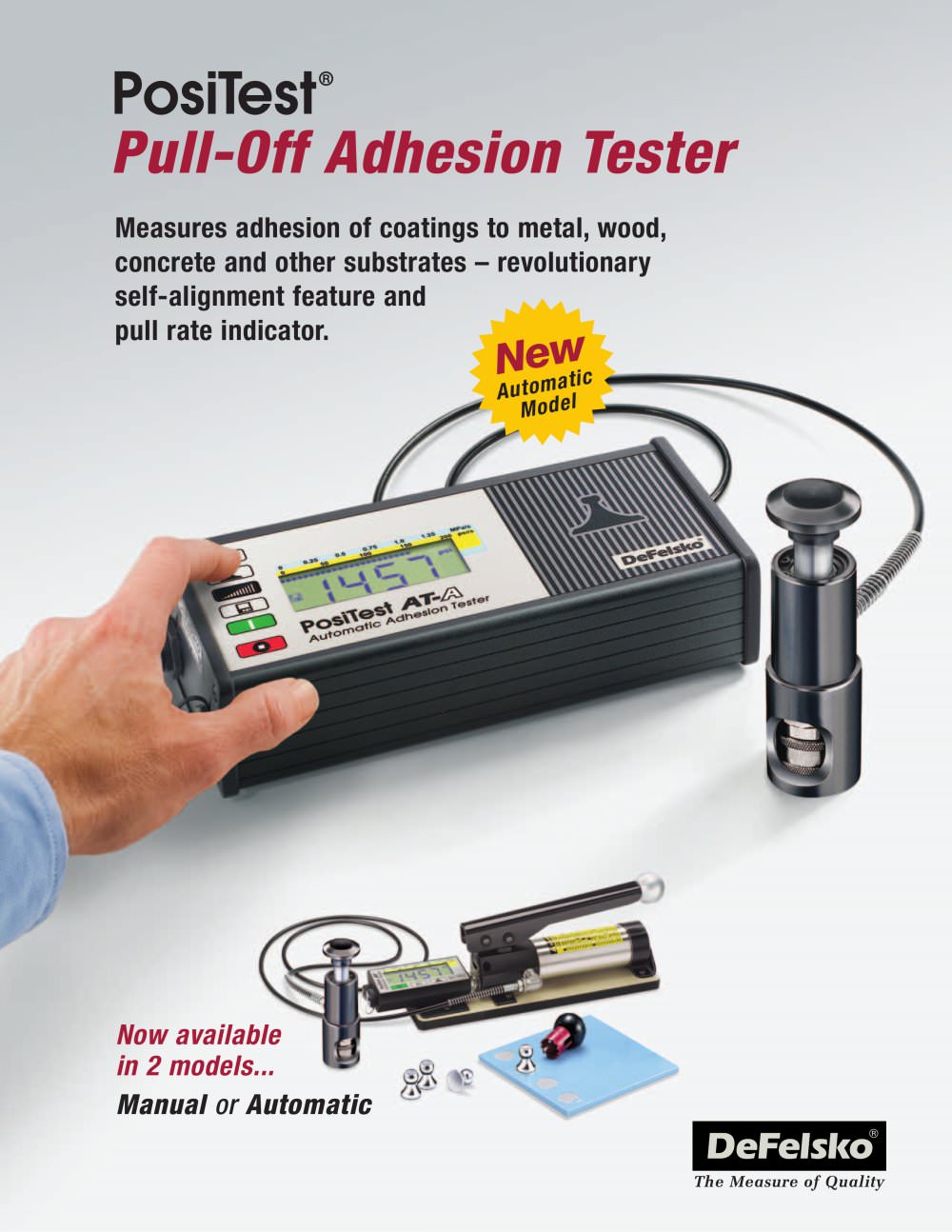

Measures adhesion of coatings to metal, wood, concrete and other substrates Ζ revolutionary self-alignment feature and pull rate indicator. > AutomaticModel Now available in 2 models... Manual or Automatic > The Measure of Quality size="-3">

Open the catalog to page 1

Reach difficult areas with 5 ft (1.5m) quality flex hose Environmentally sealed, one-piece metal enclosure New electronically controlled hydraulic pump automatically applies smooth and continuous pressure at a user-specified rate-of-pull Self-aligning, quick-coupling secures dollies to actuatorUSB port for downloadingAC Adapter port charges batteries or powers instrumentCutting tool for isolating test area Single-use, self-aligning dollies ensure even, consistent pull-offs ΢֠ Portable requires no external power source ֖ideal for lab and field use > ■ Internal Memory stores maximum pull-off pressure,...

Open the catalog to page 2

Rugged, portable instrument ideal for lab and field use Select measurement unitsMemory mode icon indicates readings are in memory Select Pull Rate in accordance with international test methodsOn/StartOne-touch save featurestores and reviews readings in memory Select dolly sizeLow battery indicator Pull Rate indicator to easily set and monitor the specified rate of pullLarge, easy-to-read LCD displays pressure during measurement and holds maximum valueOff/Stop size="-1">

Open the catalog to page 3

Dolly Size (mm)* 20mm0 3000 psi (0 ֖ 20 MPa)1% Full Scale ResolutionAccuracyAdhesion Strength** 1 psi (0.01MPa) *Additional dolly sizes available to meet specific measuring needs іcontact supplier for details. **Varies with dolly size Adhesion tester with digital display, 20 mm aluminum test dollies (20), abrasive pad, cutting tool, adhesive with mixing sticks and palettes, cotton swabs, instruction booklet and video, Certificate of Calibration traceable to NIST, two-year warranty, and sturdy, lightweight carrying case > PosiTest AT Manual model Kit Weight (with case): 12 lbs/5.5 kg Carrying...

Open the catalog to page 4
