PosiTector PC Powder Checker

Product catalog summary

Overview: The document describes a non-contact uncured powder thickness gage developed by DeFelsko Corporation. This device uses ultrasonic technology to measure uncured powder coatings and predict cured thickness, enhancing quality control in powder coating processes.

Key Features:

Simple Operation: The gage is hand-held, battery-operated, and requires no calibration adjustment for most powders. It displays thickness results on both the base unit and probe, with a bi-color indicator light for noisy environments.
Durability: The device is resistant to solvents, acids, oils, water, and dust, making it suitable for powder coating environments. It includes a shock-absorbing rubber holster with a belt loop and magnetic mount for easy storage, and a replaceable screen to protect the probe.
Accuracy: Conforms to ASTM D7378 standards and features advanced technology for measuring on small tubes, odd shapes, and moving parts. Calibration adjustments are available for unusual powders or substrates.
Versatility: The wireless probe communicates with the base unit up to 10 meters away, with selectable display languages and backlit displays for dim environments. It uses standard alkaline batteries for long life.
Powerful Features: Displays and updates basic statistics, stores up to 1,000 readings, and includes a USB port for PC connection and continuous power. It generates formatted reports with measurement summaries and charts, and can send live results to a data collector or spray booth controller.

Specifications:

Range: 20–110 µm (0.8–4.3 mils)
Resolution: 1 µm (0.05 mils)
Accuracy: ± 5µm (±0.2 mil)
Measurement Time: 2–5 seconds
Measurement Distance to Powder: 18 mm (0.75 inch)
Measurement Area: 2 mm (0.08 inch)

Dimensions and Weight:

Base Unit: 146 x 64 x 31 mm (5.75" x 2.5" x 1.2"), 165 g (5.8 oz.) without batteries
Probe: 222 x Ø50 mm (8.75" x Ø2.0"), 272 g (9.6 oz.) without batteries

Package Includes: The gage comes with a base unit, probe, protective rubber holster, probe fixture, batteries, instructions, instructional video, replacement probe screen, USB cable, carabiner, wrist strap, carrying case, and a two-year warranty.

Catalog excerpts

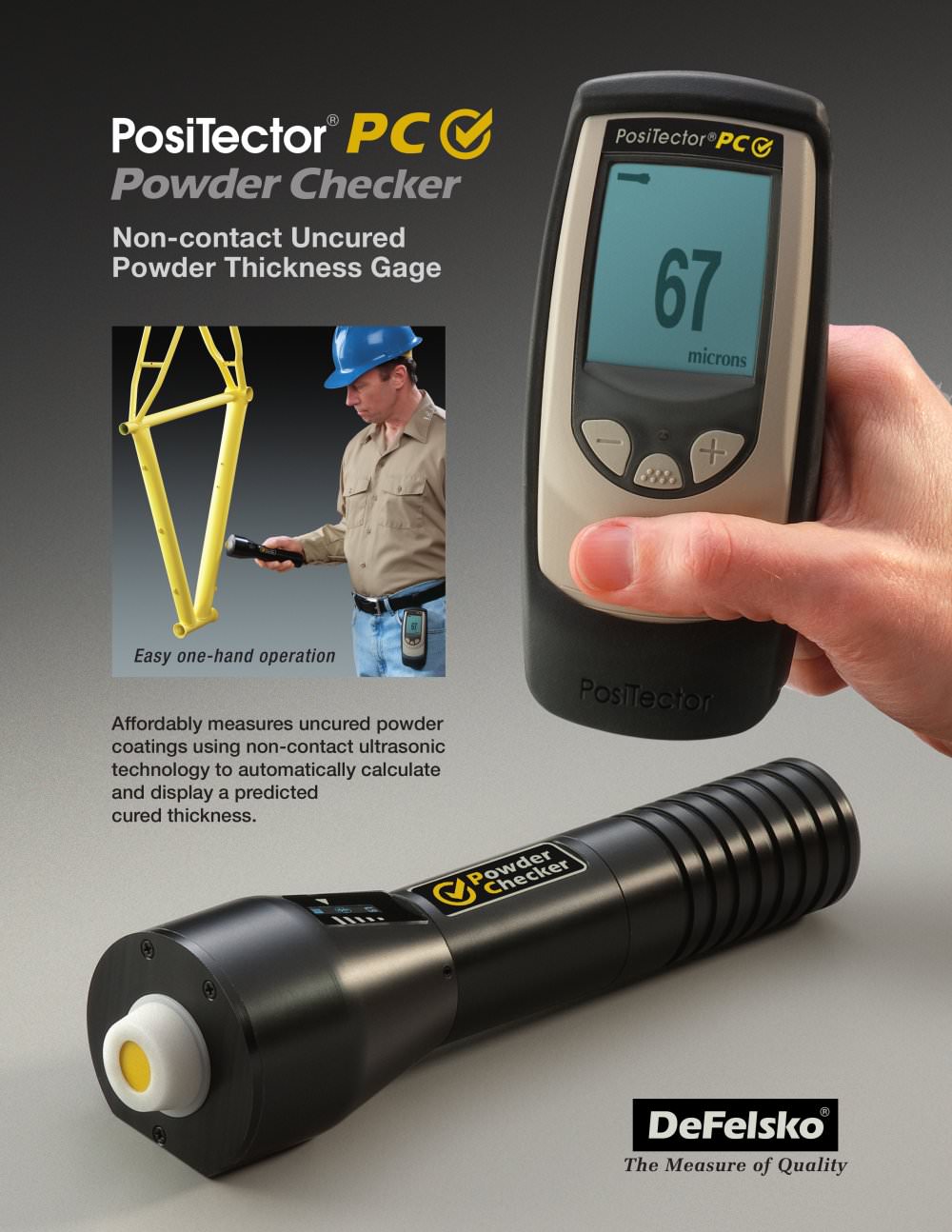

Affordably measures uncured powder coatings using non-contact ultrasonic technology to automatically calculate and display a predicted cured thickness. Non-contact Uncured Powder Thickness Gage The Measure of Quality Easy one-hand operation

Open the catalog to page 1

DEFE L SKO CORPORAT ION 802 Proctor Ave., Ogdensburg, NY 13669 USA Toll Free 1-800-448-3835 Phone: +1-315-393-4450 FAX: +1-315-393-8471 E-mail: [email protected] Web: www.defelsko.com The Measure of Quality ©DeFelsko Corporation USA 2010. All Rights Reserved. Technical Data subject to change without notice. • Printed in USA • PC.v.LW/W1005 Simple .. Hand-held, battery operated .. No calibration adjustment required for most powders .. Thickness results appear on both base unit and probe .. Bi-color indicator light—ideal in a noisy environment Durable .. Solvent, acid, oil, water and dust resistant—ideal...

Open the catalog to page 2
