Group: HITACHI
Catalog excerpts
IRated Engine HP (gross) lOperating Waight I Loading Shovel Bucket IBackhoe Bucket
Open the catalog to page 1Technological Edge Packed The robust body gives the power and speed demanded on tough job sites. Long-lasting performance - durability and reliability - is built into the machine. The EX1800 is right there to tackle tough jobs. Governor Speed sensor Electric system Pilot system ■ E-P (computer-aided Engine Pump) control system gives the required production through the high-powered engine. Speed- sensing summation system lets the pumps make effective use of the engine power. Result: the EX 1800 gives impressive productivity and operating economy. crowd mechanism, a Hitachi original, brings...

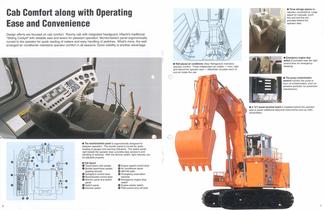

Open the catalog to page 3Cab Comfort along with Design efforts are focused on cab comfort. Roomy cab with integrated headguard. Hitachi's traditional "Sliding Cockpit" with slidable seat and levers for pleasant operation. Monitor/switch panel economically curved to the operator for quick reading of meters and easy handling of switches. What's more, the well- arranged air conditioner maintains operator comfort in all seasons. Good visibility is another advantage. ■ The monitor/switch panel is economically designed for pleasant operation. The monitor panel is curved for quick reading of gauges and warning indicators....
Open the catalog to page 4Conforming to the world's most stringent safety standards - EN (European Norm), a variety of safety- conscious devices are provided - non-pressure hydraulic oil tank, mechanical swing brake, ample-capacity brakes for travel motors, and handrails at important locations. Also, conforming to the USA's Environmental Protection Agency, the emissions control engine is adopted on the machine to keep the atmosphere clean. ■ The emissions control engine with an electronic governor, conforming to the Emission Standards by the USA's Environmental Protection Agency, is adopted for environmental...
Open the catalog to page 5•Tool kit ©Suspension seat »AM-FM radio •Intermittent windshield wiper with window washer «Air conditioner .Defroster •Two cab lights and access light «12-V power terminal board -Hydraulic driven grease lubricator •Pilot control shut-off lever •Handrails and side walks •Retractable-type ladder with spring-type balancer •Auto-lubrication system (Lincoln)

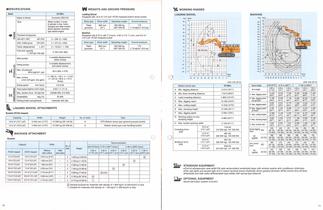

Open the catalog to page 6A Distance between tumblers 5 780 mm (19'0") D Rear-end swing radius 6 010 mm (19'9") E Overall width of upperstructure I Track shoe width Loading shovel WEIGHTS OF MAJOR COMPONENTS Major components • i Main frame assembly 39 800 kg (87 800 lb) -' Track center frame assembly 17 100 kg (37 700 lb) 1 :> Track side frame assembly (Right) 22 400 kg (49 400 lb) ® Track side frame assembly (Left) 22 400 kg (49 400 lb) •f. Side walk assembly (Right) 870 kg (1 920 lb) Mi Side walk assembly (Left) 680 kg (1 5001b) Loading shovel • Boom assembly • Bucket assembly • Boom cylinder @ Hitachi...
