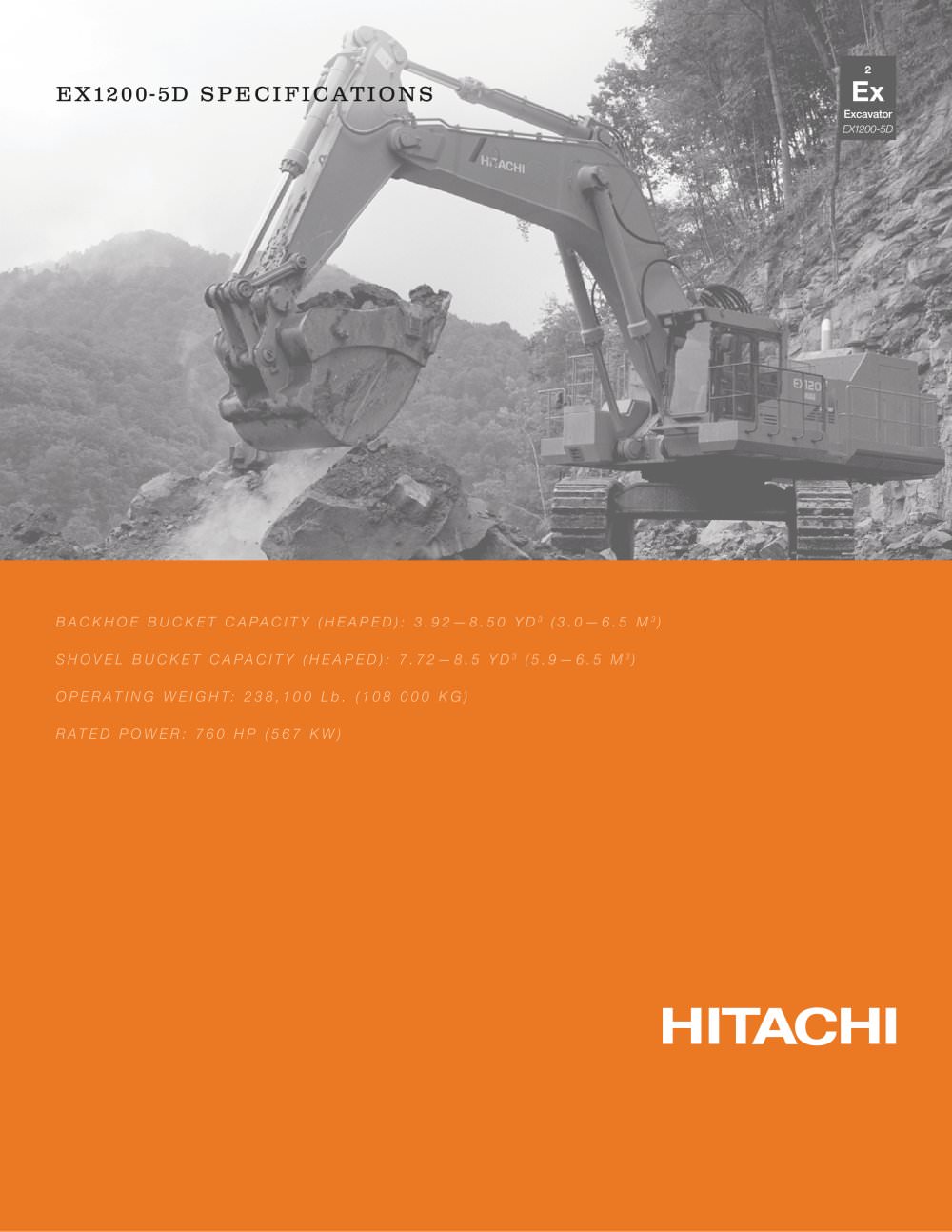

EX1200-5D BACKHOE BUCKET CAPACITY (HEAPED): 3.928.50 YD > 3 (3.0ח6.5 M > 3 )SHOVEL BUCKET CAPACITY (HEAPED): 7.728.5 YD > 3 (5.9ח6.5 M > 3 )OPERATING WEIGHT: 238,100 Lb. (108 000 KG) RATED POWER: 760 HP (567 KW) >

Boom/Arm/Bucket circuit 4,550 psi (320 kgf/cm Relief Valve Settings > Gear pump Maximum oil flow 16.6 US gpm (63.0 L/min) ENGINE Pilot Pump Make Cummins Model QSK23 Type 4 cycle Aspiration Turbocharged direct injection chamber-type diesel engine Emission Certification Tier 1 Net Power @ 1650 rpm (DIN 6271) 731 ps (538 kW) Net Power @ 1650 rpm (SAE J1349) 721 hp (538 kW) Gross Power @ 1650 rpm (SAE J1995) 760 hp (567 kW) Maximum Torque @ 1200 rpm 2,453 lb-ft (3 326 N-m) No. Cylinders 6 Bore & Stroke 6.7 x 6.7 in. (170 x 170 mm) Displacement 1,412 cu. in. (23.15 liters) Starting 24-volt electric...

CONTROLS Two Implement Levers Remote-controlled joystick hydraulic servo system. Right lever is for boom and bucket control, left lever for swing and arm control. For loading shovel, 2 pedals provided for opening/closing the bottom dump bucket. Two Travel Levers with Pedals Remote-controlled hydraulic servo system. Independent drive at each track allows counter rotation of tracks. UPPERSTRUCTURE Revolving Frame Deep, full-reinforced box section. Heavy-gauge steel plates used for ruggedness Deck Machinery Deck machinery is positioned for maximum maintenance accessibility. Sidewalks provide easy...

1. Travel Forward2. Travel Reverse 3. Swing/Arm Control Lever 4. Boom/Bucket Control Lever 5. Pilot Control Shut-off Lever 6. Monitor Panel 7. Entrance Light Switch 8. Engine Control Dial 9. Auto Idling Switch 10. Power Mode Switch 11. Travel Mode Switch 12. Work Light Switch 13. Wiper Washer Switch 14. Boom Mode Selector Switch (Comfortable Mode/Powerful Mode) 15. Heavy Lifting Switch 16. Air Conditioner Switch 17. Quick Idling Switch 18. Auto-Lubrication Switch > US GallonsLitersImperial Gallons Fuel Tank 370.01 400308.0 Engine Coolant 29.911324.9 Engine Oil 18.57015.4 Pump Drive 4.0153.3 Swing...

LOADING SHOVEL ATTACHMENTS Boom and arm are all-welded, low stress, high-tensile strength steel full-box section design. Efficient, automatic level crowding achieved by one-lever control because parallel link mechanism keeps the bucket digging angle constant, and level cylinder circuit maintains the bucket height constant (Auto-Leveling Crowd Mechanism). Dual-support-type boom/arm/bucket pin linkage Double lip pin seals plus O-ring with protector ring at arm top WORKING RANGES > Feet Meter 454035 30 25 2015105 0510 15 202530 1412108 642 0 246 8 024681012140 Meter 5101520253035404550 Feet Bottom...

Upperstructure Counterweight Muffler Cover Side Step We i ght : 74,700 lb (33 900 kg) We i ght : 38,600 lb (17 500 kg) We i ght : 200 lb (90 . 7 kg) We i ght : 46 lb (21 kg) W > . . . n n i i n . i n i 1 . 7 . 10 (929) 4 ft . 3 . (1 170) 3 ft 5 ft (1 300) (3 290)10 ft 2 ft . 10 i n . (870) 3 ft . 10 i n . . 1 i n . (1 160)1 ft (325) 22 ft . 3 i n . (6 770) i dth : 11 ft . 6 i n . (3 500) W i dth : 11 ft . 4 i n . (3 450) W i dth : 4 ft . 7 i n . (1 390) W i dth : 4 i n . (110) Sidewalk for Backhoe Sidewalk for Shovel High Cab Kit for Shovel Step for Shovel (Optional for Backhoe) We i ght : 478...

Long Track Side Frame Standard Track Side Frame Weight: 37,900 lb. (17 200 kg) x 2 Width: 3 ft. 7 in. (1 100 mm) Weight: 32,200 lb. (14 600 kg) x 2 Width: 2 ft. 4 in. (710 mm) > . . n n i i 4 4 . . (1 620) (1 620) 5 ft 5 ft 22 ft . 9 i n . 21 ft . i n . (6 930) (6 410) . n i . . n n Ladder > i 1 i . (105) 1 . 9 . Weight: 44 lb. (20 kg) Width: 1 ft. 9 in. (300 mm) > 4 ft (940) (830) 3 ft 2 ft Steps 1 ft . 3 i n . Weight: 40 lb. (18 kg) x 2 Width: 2 ft. 9 in. (125 mm) 1 ft . 11 i n . 2 ft . 1 i n . Traction device cover (370) (580) (645) Weight: 53 lb. (24 kg) x 2 Width: 1 ft. 1 in. (300 mm) Bucket...

OUR NAME LOOKS GOOD ON ORANGE. Its our color. ItҒs our brand. New product-support initiatives and our strengthened dealer network is more proof that we are as passionate as ever about this industry. We are dedicated to building the best equipment in the world and keeping it painted Hitachi Orange. > www.hitachimining.com Specifications and design subject to change without notice. DKAEX1200HT Litho in U.S.A. (07-03) size="-3">
