EX1200-5D LIFTING CAPACITIES METRIC MEASURE A: Load radius B: Load point height C: Lifting capacity Load point height Rating over-side or 360 degrees EX1200-5D Boom 9.1 m Arm 5.8 m Bucket PCSA : 3.4 m3 CECE : 3.0 m3 Shoes 710 mm EX1200-5D Boom 9.1 m Arm 4.5 m Bucket PCSA : 4.0 m3 CECE : 3.6 m3 Shoes 710 mm Rating over-front With heavy lifting system Notes:1.Ratings are based on SAE J1097. 2.Lifting capacity of the EX Series does not exceed 75% of tipping load with the machine on firm, level ground or 87% full hydraulic capacity. 3.The load point is a hook (not standard equipment) loaded on the back of the bucket. 4.*Indicates load limited by hydraulic capacity. These specifications are subject to change without notice. Illustrations and photos show the standard models, and may or may not include optional equipment, accessories, and all standard equipment with some differences in color and features. Hitachi Mining Products P.O. Box 8806 • 1515 5th Avenue • Moline, IL 61265 www.hitachimining.com
Open the catalog to page 1NEW GIANT OFFERS TRUE VALUE Within the huge Hitachi EX1200 you'll find all the essentials of a truly outstanding machine. Rest assured that like all Hitachi equipment, the EX1200 has been designed for safety, productivity, durability and comfort. Hitachi has blended the latest technology with tough performance to create what it calls the "New Giant" that is ready to take on the excavating needs of today and tomorrow.
Open the catalog to page 2New Giant Offers True Value Bucket Passes to Dump Trucks More Powerful Engine The source of the high production. The EX1200 is equipped with a powerful large-displacement engine. An intercooler is used to provide optimal fuel efficiency, helping to keep total running costs down. Maximum Payload Body Capacity ( Combined Front Operations Fast and efficient operation. The popular Optimum Hydraulic System (OHS) is used along with the newly developed arm regenerative and boom regenerative mechanism for smooth and efficient front operations. Larger Bucket Provides high work capacity. The large...
Open the catalog to page 3Boom and Arm Designed for durability. A box-section structure has been adopted on the front attachment for its large cross-sectional area. In addition, bulkheads arranged inside the front attachment increase rigidity to resist torsion, further strengthening the structure. The enhanced durability will be especially welcome for extended operation at tough work sites such as mines. BE-front with 5.6m3 (7.32yd3) Rock Bucket Boss lubrication type Larger thicker bracket Under-plate Protection A special plate and square bars are used to help prevent arm denting. Independently Mounted Oil Cooler...
Open the catalog to page 4New Giant Offers True Value EASY MAINTENANCE HELPS REDUCE TOTAL LIFETIME COST Easy Inspection and Maintenance Wide access helps speed essential inspection time and reduce maintenance costs. MIC (Machine Information Center) continuously records performance of the engine and the hydraulic system. The record can be downloaded to a PDA. Summary Report Auto-Grease Lubricator Reduces the time and effort needed for lubrication. Plenty of room is provided for performing inspections. Key components have been centrally positioned and walkways have been provided to make inspections and maintenance as...
Open the catalog to page 5New Giant Offers True Value UNCOMPROMISING SAFETY s Other Devices for Safety Adjustable Headlights Provides bright illumination where it is needed. The headlights above the cab can be adjusted downward to shine light on the work area. Pump bulkhead Cleaner Operating Engine Steps have been taken to reduce harmful exhaust gas emissions. Step Light Equipped with shut-off timer. The step light has a one minute shut-off timer. This allows the operator to use the ladder before the step light is turned off. ENVIRONMENTALLY FRIENDLY Retractable seat belt This engine is equipped with an electronic...

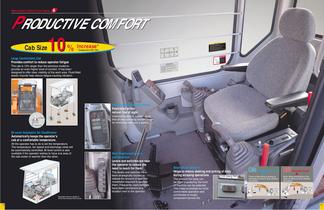

Open the catalog to page 6New Giant Offers True Value PRODUCTIVE COMFORT Cab Size Large Comfortable Cab Provides comfort to reduce operator fatigue The cab is 10% larger than the previous model to provide an even higher level of comfort. It has been designed to offer clear visibility of the work area. Fluid-filled elastic mounts help reduce fatigue-causing vibration. One-Glance Instrument Panel Positioned within natural line of sight. Instrument panel is positioned so that all key operating conditions can be monitored with just a glance. Bi-Level Automatic Air Conditioner Automatically keeps the operator's cab at a...

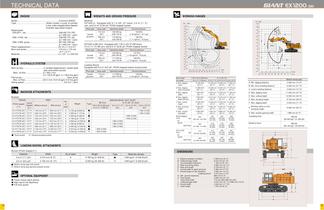

Open the catalog to page 7TECHNICAL DATA ENGINE WORKING RANGES WEIGHTS AND GROUND PRESSURE Backhoe EX1200-5D : Equipped with 9.1 m (29’ 10") boom, 3.4 m (11’ 2") arm, and 5.0 m3 (6.54 yd3; PCSA heaped) bucket Shoe type Shoe width Operating weight Ground pressure Double grousers EX1200-5D BE-front : Equipped with 7.55 m (24’ 9") BE-boom, 3.4 m (11’ 2") BE-arm, and 6.5 m3 (8.50 yd3; PCSA heaped) bucket Shoe width Operating weight Ground pressure Shoe type Double grousers Shoe width Operating weight Ground pressure Double grousers Loading Shovel Equipped with 6.5 m3 (8.5 yd3 ; PCSA heaped) bottom dump bucket Shoe type...
Open the catalog to page 8TRANSPORTATION UPPERSTRUCTURE Assembly requires no welding. Counterweight Weight: 17 500 kg (38 600 lb) Width: 3 450 (11'4") Side step Weight: 21 kg (46 lb) Width: 110 (4") Boom & arm assembly Weight: 15 200 kg (33 520 lb) Width: 1 620 (5'4") LOADING SHOVEL ATTACHMENTS Unit: mm (ft in) Sidewalk for backhoe Weight: 217 kg (478 lb) Width: 1 020 (3'4") Sidewalk for loading shovel Weight: 180 kg (397 lb) Width: 1 050 (3'5") Fender (Left rear side) Weight: 160 kg (353 lb) Width: 644 (2'1") Muffler Cover Weight: 90.7 kg (200 lb) Width: 1 390 (4'7") Sidewalk Weight: 18 kg (40 lb) Width: 192 (7.6")...

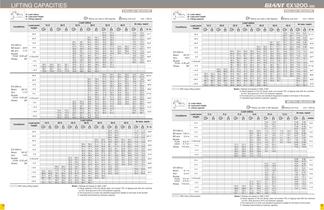

Open the catalog to page 9LIFTING CAPACITIES ENGLISH MEASURE A: Load radius B: Load point height C: Lifting capacity Load point height Rating over-side or 360 degrees Load point height -25 ft With heavy lifting system With heavy lifting system Load point height EX1200-5D Boom 9.1 m Arm 3.4 m Bucket PCSA : 5.0 m3 CECE : 4.4 m3 Shoes 710 mm With heavy lifting system Rating over-front Rating over-side or 360 degrees Notes:1.Ratings are based on SAE J1097. 2.Lifting capacity of the EX Series does not exceed 75% of tipping load with the machine on firm, level ground or 87% full hydraulic capacity. 3.The load point is a...
