EH650
4Pages

Catalog excerpts

Maximum Payload 36,3 Tonne (40.0 Ton) Maximum Payload with Standard Liners 34,2 Tonne (37.7 Ton) Maximum GMW 62 560 kg (137,919 lb) Engine Volvo TD 164 KAE Rated Output 370 kW (496 hp)

Open the catalog to page 1

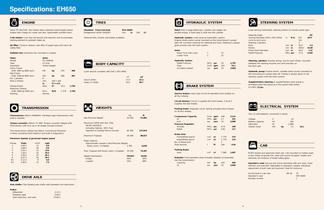

HYDRAULIC SYSTEM Volvo TD 164 KAE, four-stroke direct-injected turbocharged diesel engine with charge air cooler and wet, replaceable cylinder liners. Standard - Front and Rear Bridgestone 18.00-33(32)E3 Cold starter: Cold start aid boosts fuel injection and incorporates starting element to preheat intake air. Optional tires, brands and treads available. Hoist Raise Time with Load Lower Time Volvo TD 164KAE 4 Cycle Turbocharged BODY CAPACITY Load-sensing hydrostatic steering system of closed-center type. Steering Angle Turning Diameter (SAE J/ISO 5010) Lock-to-lock turns Steering Cylinders...

Open the catalog to page 2

Robust construction with beams of carefully selected steel grade with high yield strength. Main beams of all-welded box section with a minimum of joints. Cross members, gussets and brackets have smooth junctions to the frame. Stresses are distributed evenly over the entire frame. Same suspension cylinders on all four wheels. Front axle: A fabricated box beam A-frame connects the wheels to the machine frame through a well-sealed spherical bearing, and gas-over-oil suspension cylinders. This three-point mounted axle provides excellent oscillation and stability. Rear axle: Similar to the front...

Open the catalog to page 3

Performance Data: EH650 VEHICLE WEIGHT VEHICLE WEIGHT INSTRUCTIONS: Diagonal lines represent total resistance (Grade % plus rolling resistance %). Charts based on 0% rolling resistance, standard tires and gearing unless otherwise stated. 1. Find the total resistance on diagonal lines on right-hand border 3. From intersection, read horizontally right or left to intersect the of performance or retarder chart. performance or retarder curve. 2. Follow the diagonal line downward and intersect the NMW or 4. Read down for machine speed. GMW weight line. NOTE: Photos and illustrations throughout...
