EH600

Product catalog summary

Specifications:
The EH600 is equipped with a Volvo TD 122 KFE engine, a four-stroke direct-injected turbocharged diesel engine with a charge air cooler and wet, replaceable cylinder liners. It has a maximum payload of 32.6 tonnes (35.9 tons) and a maximum gross machine weight (GMW) of 56,911 kg (125,467 lb). The engine delivers a rated output of 297 kW (398 hp) and a maximum torque of 1,680 Nm (1,239 lb/ft) at 1,400 rpm.

Transmission:
The vehicle features an Allison CLT 754 automatic planetary-type transmission with a built-in retarder and a torque converter integral with the transmission. It offers five forward gears and one reverse gear, with a lock-up feature on all gears except reverse.

Drive Axle:
The drive axle includes fully floating axle shafts with planetary hub reductions, providing a total reduction of 11.86:1 in the rear axle.

Electrical System:
The system operates on a 24-volt configuration with two 12-volt batteries connected in series, a 1,680 W alternator, and a 6.6 kW (9.0 hp) starter motor.

Body Capacity:
The load volume complies with SAE J/ISO 6483 standards, with a struck capacity of 14.6 m³ (19.1 yd³) and a heap capacity of 21.0 m³ (27.5 yd³).

Weights:
The net machine weight is 24,305 kg (53,583 lb), and the maximum payload with standard liners is 30.5 tonnes (33.6 tons).

Steering System:
The EH600 uses a load-sensing hydrostatic steering system with a 40° steering angle and a turning diameter of 8.0 m (26'4").

Hydraulic System:
The hydraulic system is a load-sensing hydrostatic system with two engine-driven piston pumps. It includes a three-stage telescopic hoist cylinder with a raise and lower time of 12 seconds each.

Brake System:
The service brakes are dual circuit air-operated drum brakes on all wheels, with a separate circuit for the parking brake. The retarder is foot-operated and integrated into the transmission.

Cab:
The cab is ROPS-tested and approved, featuring heat and sound insulation, a sprung operator's seat, and a maximum sound level of 78 dB(A).

Tires and Suspension:
The standard tires are Bridgestone 18.00-25(32)E3, and the suspension system uses gas-over-oil cylinders for both front and rear axles.

Body:
The dumper body is made of hardened and tempered abrasion-resistant steel, designed for durability and efficient loading.

Service Capacities:
The vehicle has a fuel tank capacity of 550 liters (145 gallons) and a hydraulic system capacity of 110 liters (29 gallons).

Performance Charts:
The performance and retarder charts provide guidance on vehicle speed based on total resistance and weight.

Catalog excerpts

Maximum Payload 32,6 Tonne (35.9 Ton) Maximum Payload with Standard Liners 30,5 Tonne (33.6 Ton) Maximum GMW 56 911 kg (125,467 lb) Engine Volvo TD 122 KFE Rated Output 297 kW (398 hp)

Open the catalog to page 1

HYDRAULIC SYSTEM Volvo TD 122 KFE, four-stroke direct-injected turbocharged diesel engine with charge air cooler and wet, replaceable cylinder liners. Standard - Front and Rear Bridgestone 18.00-25(32)E3 Cold starter: Cold starter boosts fuel injection and incorporates starting element to preheat intake air. Optional tires, brands and treads available. Hoist: One three-stage telescopic cylinder, two stages are double-acting. A hoist stop is built into the cylinder. Hoist Raise Time with Load Lower Time BODY CAPACITY Steering Angle Turning Diameters (SAE J/ISO 5010) Lock-to-lock turns Steering...

Open the catalog to page 2

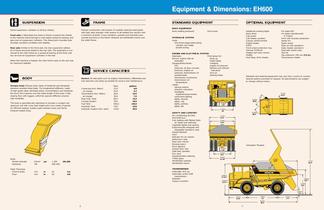

Robust construction with beams of carefully selected steel grade with high yield strength. Main beams of all-welded box section with a minimum of joints. Cross members, gussets and brackets have smooth junctions to the frame. Stresses are distributed evenly over the entire frame. Same suspension cylinders on all four wheels. Front axle: A fabricated box beam A-frame connects the wheels to the machine frame through a well-sealed spherical bearing, and gas-over-oil suspension cylinders. This three-point mounted axle provides excellent oscillation and stability. Rear axle: Similar to the front axle,...

Open the catalog to page 3

Performance Data: EH600 VEHICLE WEIGHT 0 lbs x 1000 PERFORMANCE CHART EH600 Volvo TD 122KFE SPEED VEHICLE WEIGHT 0 lbs x 1000 RETARDER CHART EH600 Volvo TD 122KFE INSTRUCTIONS: Diagonal lines represent total resistance (Grade % plus rolling resistance %). Charts based on 0% rolling resistance, standard tires and gearing unless otherwise stated. 1. Find the total resistance on diagonal lines on right-hand border 3. From intersection, read horizontally right or left to intersect the of performance or retarder chart. performance or retarder curve. 2. Follow the diagonal line downward and intersect...

Open the catalog to page 4
