EH1100

Product catalog summary

Specifications:
The EH1100 vehicle is equipped with a Detroit Diesel 12V-2000 engine, delivering 567 kW (760 hp) and a maximum torque of 3,118 N•m at 1200 rpm. It features an Allison MT6600A transmission with six forward and two reverse speeds. The drive axle includes full floating axle shafts and optional Active Traction Control.

Performance:
The vehicle has a maximum payload of 65.6 tonnes, reduced to 62.8 tonnes with standard liners, and a maximum gross machine weight of 108,409 kg. It can reach speeds up to 72.6 km/h with optional differential settings.

Body and Suspension:
The body is made from high tensile strength 400 BHN steel, with optional liners for enhanced durability. The ACCU-TRAC suspension system, developed with Lotus Engineering, includes independent trailing arms and NEOCON struts for improved ride and stability.

Brake System:
The all-hydraulic brake system features front dry disc brakes and rear oil-cooled wet discs, with variable front to rear brake proportioning for optimal stopping performance. The retarder system offers continuous and intermittent braking power.

Cab and Controls:
The COMMAND CAB III includes an integral ROPS/FOPS structure, sound insulation, and a comprehensive monitoring system with CONTRONIC II. It is designed for operator comfort with adjustable seating and a tilt/telescopic steering wheel.

Service Capacities:
Key service capacities include a 700.2-liter fuel tank, 234.7-liter cooling system, and 87.1-liter transmission capacity. The hydraulic system has separate reservoirs for hoist and brake cooling.

Optional Equipment:
Options include air suspension seats, body liners, differential ratios, and advanced traction control systems. Additional features like automatic lubrication systems and sound suppression are available.

Charts and Graphs:
Retarder charts show vehicle speed and grade capabilities across different grade lengths, highlighting performance under various conditions.

Performance Charts:
Charts illustrate vehicle speed in relation to gear and weight, showing the impact of grade percentage and rolling resistance on performance. Diagonal lines represent total resistance, combining grade and rolling resistance percentages.

Instructions for Use:
To interpret the charts, users should identify total resistance on the diagonal lines, follow the line downward to intersect with the NMW or GMW weight line, read horizontally to intersect with the performance or retarder curve, and determine machine speed by reading down from the intersection.

Additional Information:
Photos and illustrations may depict optional equipment. Contact information for Hitachi Construction Machinery (America) Corp. is provided.

Catalog excerpts

Maximum Payload 65,6 Tonne (72.3 Ton) Maximum Payload with Standard Liners 62,8 Tonne (69.2 Ton) Maximum GMW 108 409 kg (239,000 lb) Engine Detroit Diesel 12V-2000 Rated Output 567 kW (760 hp)

Open the catalog to page 1

Specifications: EH1100 ENGINE Make Model Type Aspiration Rated Output (SAE @ 2100 rpm) Flywheel Output (SAE @ 2100 rpm) No. Cylinders Bore & Stroke Displacement Maximum Torque @ 1200 rpm Torque Rise Starting HYDRAULIC SYSTEM ELECTRICAL SYSTEM Detroit Diesel 12V-2000 4 Cycle Turbocharged/Aftercooled Twenty-four volt lighting and accessories system. 75 amp alternator with integral transistorized voltage regulator. Two 900 amps, cold cranking, 12-volt, maintenance-free, heavy-duty batteries connected in series. Standard CONTRONIC II monitoring and central warning system with built-in diagnostics....

Open the catalog to page 2

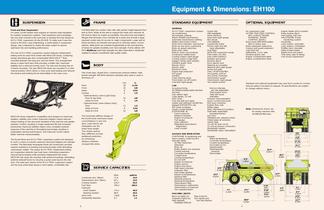

Full fabricated box section main rails with section height tapered from rear to front. Wider at the rear to support the loads and narrower at the front to allow for engine accessibility. One piece top and bottom flanges that eliminate cross member tie in joints and provide a large exposed center area for access to major components. Large radii at frame junctions are blended and ground to minimize stress concentrations. Weld joints are oriented longitudinally to the principal flow of stress for greater durability and more strength. Frame utilizes 345 MPa 50,000 psi yield high strength low alloy...

Open the catalog to page 3

RETARDER CHART EH1100 Grade Length 450m 1,475' RETARDER CHART EH1100 Grade Length 1 494m 4,900' RETARDER CHART EH1100 Grade Length 899m 2,950' RETARDER CHART EH1100 Grade Length 602m 1,975' RETARDER CHART EH1100 Grade Length Continuous INSTRUCTIONS: Diagonal lines represent total resistance (Grade % plus rolling resistance %). Charts based on 0% rolling resistance, standard tires and gearing unless otherwise stated. 1. Find the total resistance on diagonal lines on right-hand border 3. From intersection, read horizontally right or left to intersect the of performance or retarder chart. performance...

Open the catalog to page 4
