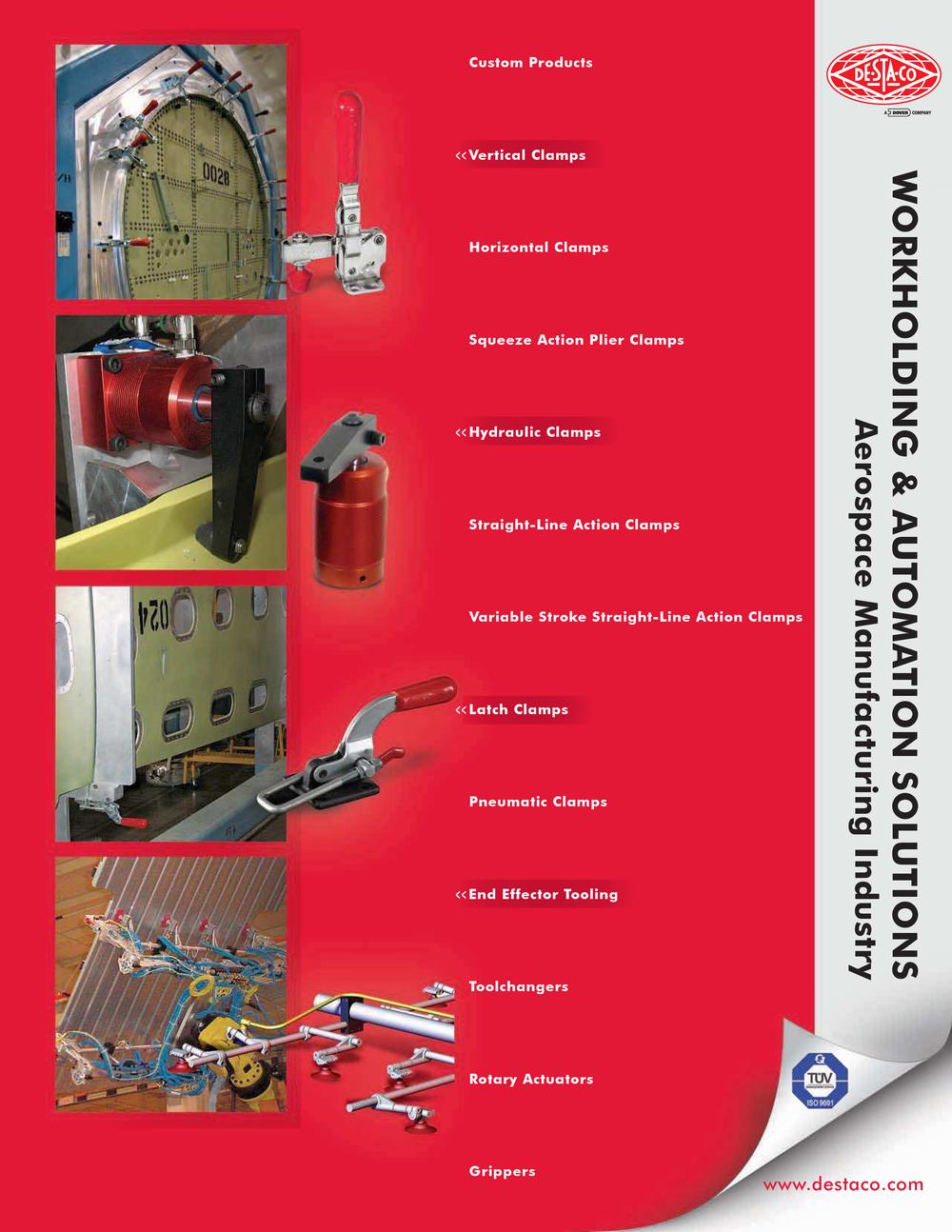

I Q giobQi scQie* TO REMAIN SUCCESSFUL, TODAY'S AEROSPACE MANUFACTURER MUST BE PREPARED TO OPERATE IN A GLOBAL MARKET. DE-STA-CO'S COMMITMENT TO PROVIDING INDUSTRY-LEADING PRODUCTS, SERVICE AND SUPPORT ENCOMPASSES THE WHOLE OF THE WORLD IN WHICH YOU DO BUSINESS. As a truly global company, DE-STA-CO understands aerospace manufacturers' need for uniformity across products, service and support, regardless of geographic location. We harness the whole of our resources to ensure worldwide availability of every product we produce. In every country that you conduct business, we provide and support...
Open the catalog to page 2MORE THAN PRODUCTS. complete solutions. EXTENSIVE CAD CAPABILITIES To ensure applicability to the broadest possible base of aerospace manufacturers, DE-STA-CO supports a wide variety of CAD programs, ranging from Catia to Unigraphics. All CAD formats are accessible through multiple channels, including our cutting-edge online digital catalog, located at www.destaco.com. This web-based 3D CAD library allows engineers to configure individual 3D models from DE-STA-CO's extensive array of workholding and automation products. The intuitive system is part of DE-STA-CO's commitment to providing the...
Open the catalog to page 3special products EACH OF YOUR APPLICATIONS IS UNIQUE and sometimes it takes more than a standard product to achieve maximum performance in aerospace manufacturing. When such an occasion arises, DE-STA-CO's special engineering services department will work extensively to meet that need by modifying an existing product or creating an entirely new component. Throughout this process, you will work with a highly trained engineer who understands your specific needs. Once a special product is created, it is assigned a part number and entered into our system. This guarantees a quick response to...
Open the catalog to page 4IUAL CLAMPS FOR THE AEROSPACE INDUSTRY VERTICAL CLAMPS Durable construction: High performance achieved through torsion-protected, hardened bushings, stainless steel rivets and zinc plating. Օ Safe design: Oil-resistant, ergonomically-shaped DE-STA-CO handle grip increases operational safety. Advanced design: DE-STA-CO® Toggle Lock Plus integrates a release lever that eliminates the potential for unintentional opening and closing. Օ Bar openings range from 80° to 140°. Holding capacity ranges from 200 lbs. to 1,400 lbs. 1 Model no. Holding Capacity * [N / lbsf.] Overall Height [mm / in.]...
Open the catalog to page 5IANUAL CLAMPS FOR THE AEROSPACE INDUSTRY SQUEEZE ACTION PLIER CLAMPS Increased flexibility: High quality clamping forces are provided where permanent, stationary clamping of workpieces is not possible. Օ Durable construction: Heavy strength, drop-forged steel is used to guarantee maximum performance and reliability. Safe design: Oil-resistant, vinyl-dipped DE-STA-CO handle grip increases operational safety. Օ Efficient operation: Some models feature a two-way trigger release for fast and easy opening of clamp. Holding capacity ranges from 100 lbs. to 1,200 lbs. Our easy-to-use squeeze...
Open the catalog to page 6IANUAL CLAMPS FOR THE AEROSPACE INDUSTRY STRAIGHT-LINE ACTION CLAMPS Flexible performance: Models lock in both the extended and retracted positions. Durable construction: High performance achieved thr^p stainless steel rivets and zinc pla^g._ Safe design: Oil-resistant, ergonomically-shaped DE-STA-CO handle grip increases operational safety. Adaptable solution: Plunger contains internal threading. Holding capacity ranges from 300 lbs. to 800 lbs. Used in part location, our straight-line action clamps improve efficiency in machining and assembly applications. Model no. Holding Capacity [N /...
Open the catalog to page 7PNEUMATIC & HYDRAULIC CLAMPS FOR THE AEROSPACE INDUSTRY PNEUMATIC CLAMPS Protected design: Enclosed assembly reduces maintenance by retaining lubrication and protecting moving parts. Օ Flexible performance: Clamping force can be maintained even when removed from air supply. Extreme abilities: High temperature models can withstand continuous exposure to 500° and short exposure to 700°. Օ Efficient size: High clamping forces are provided in a compact, space-efficient design. NEW 991-MRM 1091-MRM 9500 SERIES CUSTOM PNEUMATIC CLAMP HYDRAULIC CLAMPS System flexibility: MRO interchange...
Open the catalog to page 8END EFFECTOR COMPONENTS FOR THE AEROSPACE INDUSTRY CUSTOMIZED MATERIAL HANDLING SOLUTIONS Bodybuilder Robotic End Effector System features octogonal booms and clamp mounts designed to be stiff under the twisting, bending moments of a robot's motion. The patented alignment system allows modular components to be replaced individually and easily returned to their original positions. SpiderGripٙ Modular Geometric End Effector System components are made of high grade aircraft quality aluminum. This tooling system offers high strength-to-weight ratios and maintains dimensional accuracy when...
Open the catalog to page 9EFFECTOR COMPONENTS FOR THE AEROSPACE INDUSTRY COMPREHENSIVE STANDARD PRODUCT OFFERING Vacuum Products: DE-STA-CO offers several families and sizes of vacuum cups for different surfaces, contours and applications. Auto-Release Venturi (ARV) cup mounts provide quick part release while requiring only one air line and one valve. Pneumatic Modular Grippers: There are two styles of modular grippers, the GR1 Modular Gripper and the GR84 Enclosed Mini Gripper. GR1 has a toggle-locking mechanism while the GR84's locking mechanism is protected from contaminates. They are excellent for gripping and...
Open the catalog to page 10OTHER AUTOMATION COMPONENTS FOR THE AEROSPACE INDUSTRY DE-STA-CO'S COMPREHENSIVE LINE of automation components provides a wide range of solutions for aerospace manfuacturing and assembly applications. Our limitless variety of configurations ensures that we can provide a solution to meet your specific needs. M SLIDES Ideal for the assembly and manufacture of aerospace components, our slides quickly and easily mount together without adaptor plates, and allow you to create an almost unlimited range of multi-axis pick and place devices. ROBOTIC TOOLCHANGERS Our robotic toolchangers provide a...
Open the catalog to page 11A TRUE GLOBAL PRESENCE Through a constant commitment to the Team DE-STA-CO philosophy, we draw from our worldwide pool of information and resources to offer the highest levels of service to each of our customers, regardless of geographic location. Our status as a truly global company empowers us to improve the global competitiveness of your operations. Whatever your automation or workholding need, Team DE-STA-CO has the best possible solution. NORTH AMERICA DE-STA-CO Headquarters Auburn Hills, Michigan Tel: 1.248.836.6700 Marketing: marketing@destaco.com DE-STA-CO Workholding Products...
