VERTICAL HANDLE HOLD-DOWN ACTION CLAMPS

VERTICAL HANDLE HOLD-DOWN ACTION CLAMPS

Product catalog summary

Vertical Handle Hold-Down Action Clamps Overview

This document provides detailed specifications and applications for vertical handle hold-down action clamps used in industrial applications such as assembly, welding, and machining.

Specifications

The clamps are categorized by series and model numbers, each with specific holding capacities ranging from 100 lbs to 6000 lbs, movement angles, and opening angles. They feature ergonomic designs for operator comfort and safety.

Series and Models

Series 2002, 2007, 2010: High holding capacities in compact sizes with ergonomic handle grips and safety features.
Series 201: Smallest in the vertical handle series, available in stainless steel with ergonomic grips.
Series 202: Offers fixed and adjustable spindle positions, available in stainless steel.
Series 207: Includes solid and "U" bar configurations with ergonomic grips.

Applications

These clamps are used for securing components in automatic assembly, silk screening, and robotic welding cells, highlighting their versatility in industrial settings.

Key Features

Ergonomic handle grips for comfort.
High holding capacities with compact designs.
Safety features to prevent pinch points.
Stainless steel options for specific models.

Conclusion

Emphasizes selecting the appropriate clamp model based on application requirements, considering holding capacity, movement, and safety features.

Overview: Detailed specifications and features of various models of vertical handle hold-down action clamps from DESTACO, focusing on Series 207, 210, 219, 229, 516, 518, 247, 267, 548, 578, 588, 91090, 91140, and 317.

Series 207 World Clamp: Features an extended handle and ergonomic grip, with solid and "U" bar variations.

Series 210: Known for size and holding capacity, with ergonomic grips and various spindle assemblies.

Models 219 and 229: Unique cam action for inconsistent height workpieces.

Model 516: Low carbon steel with black oxide finish, replaceable pivot pins.

Model 518: Forged hold-down bar with ergonomic grip.

Series 247 and 267: Compact heavy-duty models with bar guide feature.

Models 548, 578, 588: Largest capacity units for fast cycling and repeatability.

Models 91090 and 91140: New front flange mount for vertical surface mounting.

Series 317: Low silhouette and mounting flexibility.

Series 527 and 528: Heavy-duty workholding with square cold-drawn steel bars.

Horizontal Handle Hold-Down Action Clamps Overview

Specifications and configurations for various models of horizontal handle hold-down action clamps, including materials, dimensions, mechanical advantages, and holding capacities.

Specifications: Models equipped with red vinyl handle grips, flanged washers, and spindle assemblies. Models can be ordered without a spindle by including a -LS suffix.

Model Details:

Model 206-SS and 206-HSS: Low and high bar flanged base with mechanical advantage and holding capacity.
Series 215: Low silhouette design with holding capacity and mechanical advantage.
Series 225 and 235: Increased holding capacity and rigidity.
Series 213, 217, 227, 237, 245: Safety design with patented bar guide feature.
Model 2371-U: Heavy-duty model with ergonomic handles.
Series 305, 307, 309: Compact models with low silhouette.
Model 515: Compact model with low carbon steel.

Materials and Accessories: Most models available in stainless steel with various accessories.

Ordering Information: Models can be ordered without a spindle by including a -LS suffix, with modifications available upon request.

Catalog excerpts

VERTICAL HANDLE HOLD-DOWN ACTION CLAMPS-1

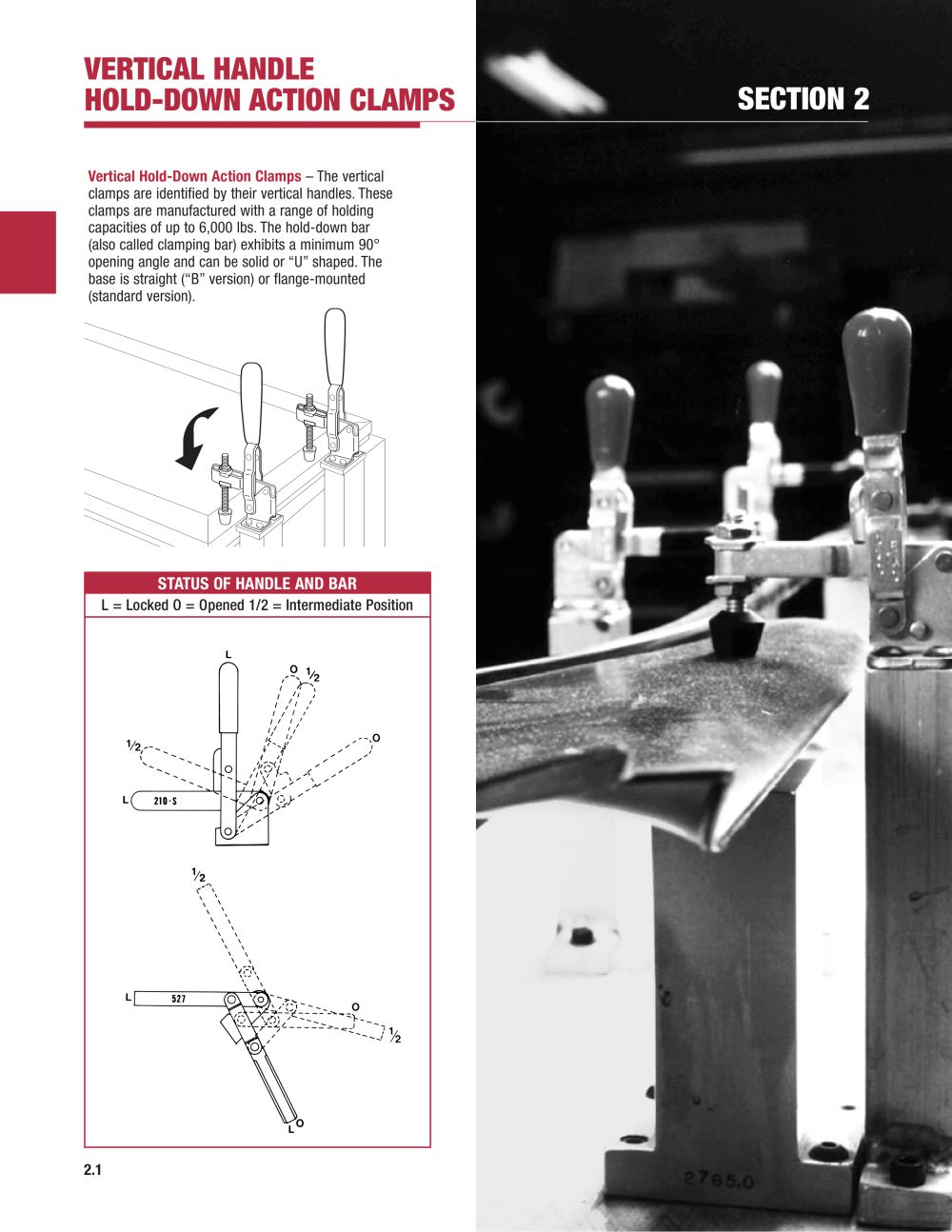

Vertical Hold-Down Action Clamps The verticalclamps are identified by their vertical handles.These clamps are manufactured with a range of holding capacities of up to 6,000 lbs.The hold-down bar (also called clamping bar) exhibits a minimum 90ְ opening angle and can be solid or UӔshaped.The base is straight (BӔversion) or flange-mounted (standard version). > L = Locked O = Opened 1/2 = Intermediate Position 2.1 >

Open the catalog to page 1

VERTICAL HANDLE HOLD-DOWN ACTION CLAMPS-3

Several Model 201-U clamps, with hex-head spindles,are used to secure a guide in a bottle capping application. Models 202-U,with modified arms,and 210-U are used to secure a molding in this checking fixture. Several 207-UOclamps are used to secure parts in this robotic welding cell. Several 210-Sclamps,with modified arms, and Model 225-U secure a part in this robotic welding application. Model 202-U vertical-handle hold-down clamps play an important role in securing components in an automatic assembly process. Model 207-UOhold-down clamps used in fixturing material in a silk screening application....

Open the catalog to page 3

VERTICAL HANDLE HOLD-DOWN ACTION CLAMPS-4

Model 210-U vertical-handle clamp provides high holding capacity in a compact size for this gluing fixture. Replacing hold-down bolts,these Model 247-U clamps are holding shut the door on a vacuum furnace. Heavy-duty hold-down clamp Model 558 on a heavy-duty injection molding application. Model 7-58 camaction clamp holding bar stock in preparation for machining. Model 210-U is used to secure a cast aluminum housing in a bench press,while a name plate is attached.Model 548 is usedto secure a welding coil on this OEM portable joiner machine. These Model 518 hold-down clamps positively secure the...

Open the catalog to page 4

VERTICAL HANDLE HOLD-DOWN ACTION CLAMPS-20

H F G B G 55570 > D Model 557 Diagonal Handle > A E 55580 Model 558 Vertical Handle > C H F ModelEDPHoldingHandleBar > No.No.CapacityWeightMovesOpensABCDEFGH 557 > ▲ 555702500 lbs.5.00 lbs.64192а8.139.313.751.001.002.13.444.81558 > ▲ 555802500 lbs.5.00 lbs.64192а11.258.003.751.001.002.13.444.81 > ▲ Available upon request,as are a number of other modifications. >

Open the catalog to page 20

VERTICAL HANDLE HOLD-DOWN ACTION CLAMPS-24

Model 501-B Model 503-MB Model 505-MB Model 506-MB Separate handle-weldto suit operator convenienceHardened and ground pivot points Positionable base-weldto suit job requirementHeavy-duty forged components >

Open the catalog to page 24

VERTICAL HANDLE HOLD-DOWN ACTION CLAMPS-26

Example of Application ModelPart HandleClamp ArmBase Plate No.No.D > 1 H > 1 C > 1 FL > 2 L > 3 AA > 1 BB > 1 DS 5015037 x 1060ږ֖֖֖֖ Series 501 (all models) 501501֖15154010֖֖֖ 503502֖֖֖254035506.38 503503-L18120֖֖֖֖֖ Series 503 (all models)503501֖2525508֖֖֖ 503502֖֖֖254035506.38 505503-L22150֖֖֖֖֖ Series 505 (all models)505501֖30256012֖֖֖ 505502֖֖֖406030508.38 Series 506 (all models)506503-L28180֖֖֖֖֖ 506501֖35307515֖֖֖Model 506-MB506502֖֖֖507045658.38 >

Open the catalog to page 26

VERTICAL HANDLE HOLD-DOWN ACTION CLAMPS-27

Horizontal Hold-Down Action Clamps The outstanding characteristic is the low height design. Unlike the handle and the hold-down bar of the vertical clamps,those of the horizontal clamps move in opposite directions.These clamps are manufactured with solid or ֓Ushaped hold-down bars and with various mounting options.The holding capacities range up to 2,400 pounds. > L = Locked O = Opened 1/2 = Intermediate Position 3.1 >

Open the catalog to page 27
