Product catalog summary

Introduction to New Products

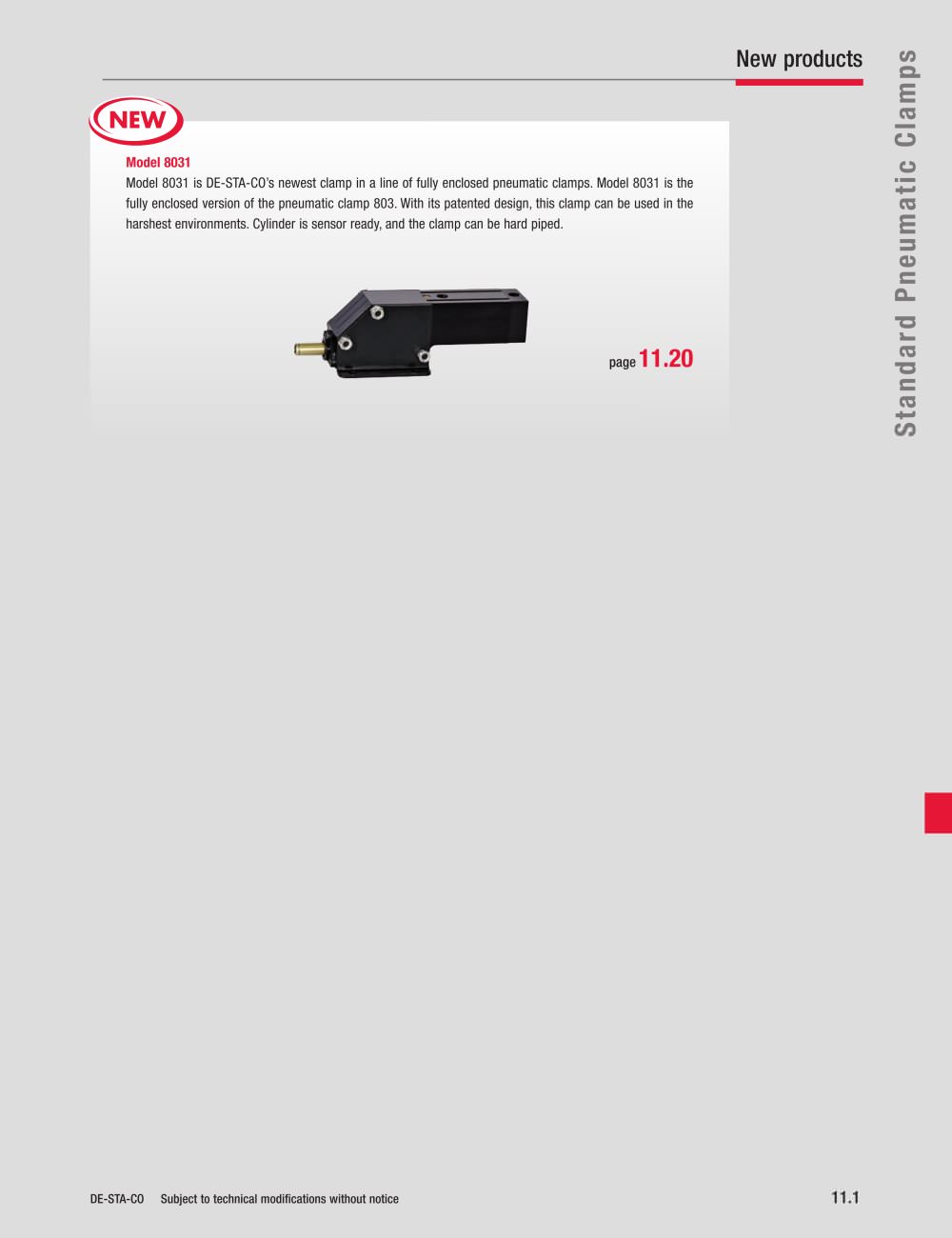

Model 8031 is the latest addition to DE-STA-CO's line of fully enclosed pneumatic clamps, designed for harsh environments with a sensor-ready cylinder and the capability for hard piping.

Product Specifications
The document details various models of pneumatic clamps, including their holding capacities and exerting forces. Model 8031, for example, has a holding capacity of 2,000 lbs and an exerting force of 600 PSI.

Key Features

High safety standards with over-center locking to prevent accidental opening.
Large opening angles and high exerting forces.
Compact design with low air consumption.
End position sensing for automated production applications.

Applications and Benefits
Pneumatic clamps are suitable for both single and mass production, significantly reducing non-productive time and ensuring consistent quality in manufacturing.

Quality and Durability
DE-STA-CO clamps are known for their high quality, featuring chrome-finished piston rods, stainless steel rivets, and maintenance-free bushings, ensuring long service life and high cycle times.

Safety and Automation
The clamps can be remotely controlled and are equipped with end position sensing systems, allowing for fully automated operations. They are designed to remain closed even during air-pressure failures.

Temperature and Seal Options
Standard cylinders come with Buna-N seals, operable from -40º to +250º F. High-temperature Viton® seals extend the range to -20º to +400º F.

Model Highlights

Model 846: Compact size with high clamping capacity.
Model 849: Features a cam mechanism for accommodating part size variations.
Model 858: Heavy-duty model with a holding capacity of 4,000 lbs.

Overview
The document provides detailed specifications and features of various DE-STA-CO pneumatic clamps, highlighting their construction, mounting options, and operational capabilities.

Specifications
Each model is described with its maximum holding capacity, exerting force at 80 PSI, maximum operating pressure, and specific dimensions. For instance, Model 817-S has a holding capacity of 450 lbs and operates at a maximum pressure of 100 PSI.

Mounting Options
The clamps can be mounted in various configurations, including side and top mounting, to suit different application needs.

Features
Many models come with a magnetic ring as a standard feature, and options for Viton seals are available upon request.

Applications
The clamps are suitable for use in environments like rotary indexing tables, injection molding operations, and automated welding fixtures.

Additional Options
The document mentions the availability of switch options and accessories, with modifications available to meet specific operational requirements.

Clamping Arm Configuration
Specifications for the clamping arm configuration of the Etic Ring Model 801-MR are provided, detailing dimensions for retracted, extended, and clamped positions.

Arm Extension & Set Screw
Specifications for the arm extension and set screw are provided for Model 801010, including dimensions such as a length of 1.87 and a diameter of 3/8-24.

Clamp Assembly
The clamp assembly features a 1.12 diameter cylinder with varying exerting forces at different PSI levels.

Power Clamps Models 870-2 and 871-2
These models utilize a roller and cam mechanism, allowing for clamping of workpieces with inconsistent thickness while maintaining a locked condition.

Technical Specifications
Both models have a maximum holding capacity of 2,000 lbs. and exerting force of 170/350 lbs. at 80 PSI.

Additional Features
The document mentions the availability of switch options and accessories, as well as the inclusion of a magnetic ring as a standard feature.
