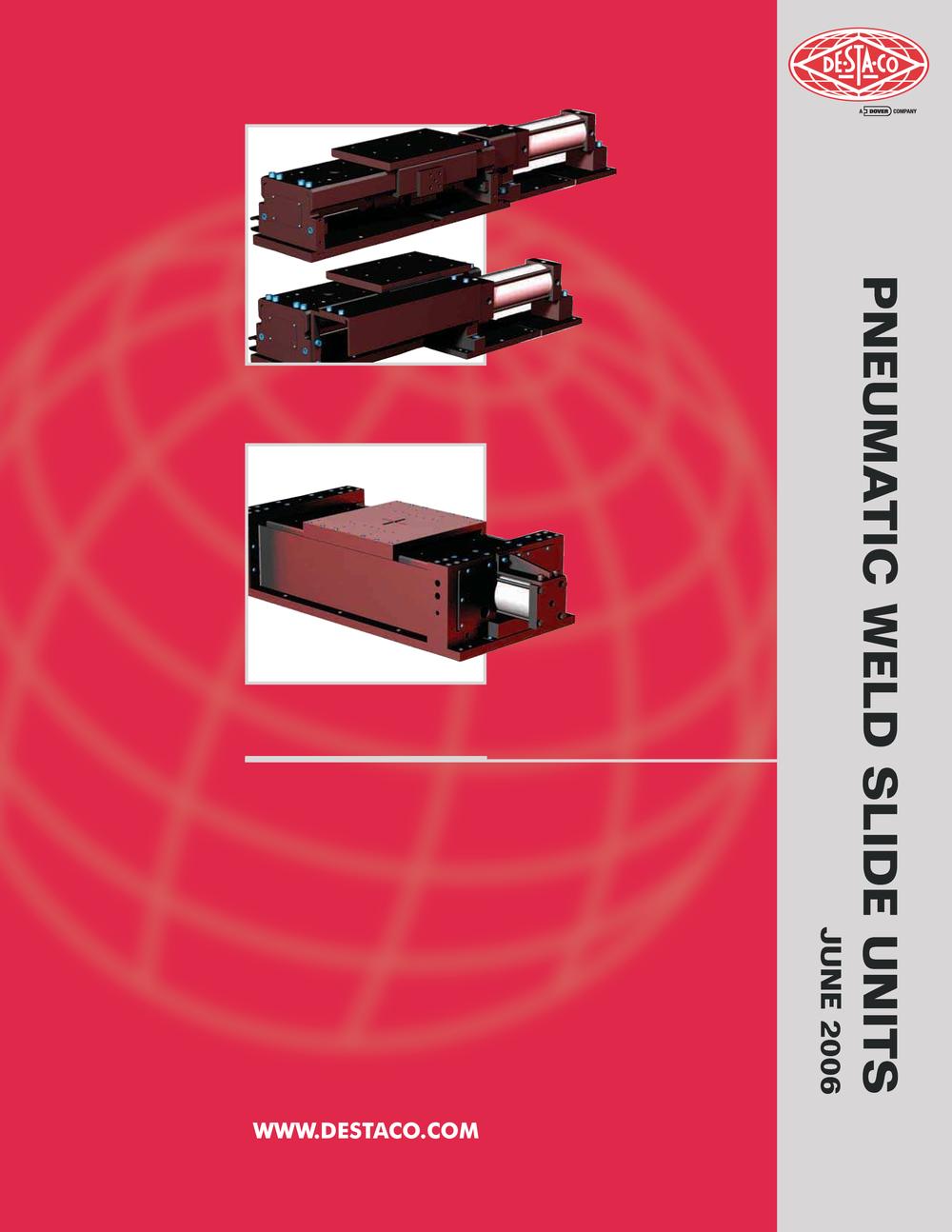

PNEUMATIC WELD SLIDE UNITS JUNE 2006

DE-STA-CO Weld Slides WS3 Sries Weld Slides Features and Benefits Heavy Duty 3/4" Plate Increases weight bearing distribution ratio which can be contaminated. 2 Email: [email protected] www.destaco.com 1-888-DESTACO

DE-STA-CO Weld Slides WS3 Sries Weld Slides Features and Benefits Shown with (A) In-line Cylinder Position Option Index length easily adjusts in field The pre-engineered package saves time and money in common components tooling solutions Multiple Actuator Mounting Options Actuator can be mounted in-line or offset to the left or right side, offering greater flexibility where space may be a concern. Typical weld slide units lack flexibility by restricting actuator mounting. Blocks and shim packages Email: [email protected] www.destaco.com 1-888-DESTACO 3

DE-STA-CO Weld Slides WS3 Sries Weld Slides Ordering Information WELD SLIDE MODEL- WS3 = SERIES 3 WELD SLIDE CYLINDER OPTIONS S = STANDARD (POINT TO POINT) PNEUMATIC CYLINDER L = LOCKING PNEUMATIC CYLINDER -P = PROGRAMMABLE PNEUMATIC CYLINDER WS3 MODEL' 175 325 475 625 775 925 175MM 325MM 475MM 625MM 775MM 925MM MAXIMUM MAXIMUM MAXIMUM MAXIMUM MAXIMUM MAXIMUM TRAVEL TRAVEL TRAVEL TRAVEL TRAVEL TRAVEL START POSITION - DISTANCE FROM REFERENCE DATUM TO CENTER DOWEL OF CARRIAGE IN MILLIMETERS(MM) 62.5 MM MINIMUN DISTANCE (PLEASE SEE PAGE 6 - 7) NOTE When using the point-to-point cylinder (Option...

DE-STA-CO Weld Slides WS3 Sries Weld Slides Ordering Information TRAVEL DISTANCE TO WORK POSITION IN MILLIMETERS (MM) (PLEASE SEE PAGE 6 - 7) ORDERING EXAMPLE WS3S175-100.0-450-A1 M SPECIAL FEATURES N = NO POSITION SENSING U = UNISTRUT SWITCH MOUNTING RAIL P = PROXIMITY SWITCHS (SPECIFY) L = MANUAL LOCKOUT OPTION ■ SHOCK ABSORBERS 0 = NO SHOCK ABSORBERS 1 = SHOCK ABSORBERS REQUIRED (ACE MC-4525-4) CYLINDER POSITION A = INLINE B = SIDE C = SIDE (PLEASE SEE PAGE 6) DESTACO WELD SLIDE SERIES 3 WTH PNEUMATIC POINT-TO-POINT CYLINDER 175MM FRAME SIZE START POSITION AT100.0MM FROM REFERENCE DATUM 450.0...

DE-STA-CO Weld Slides WS3 Sries Weld Slides General Dimensions CYLINDER POSITION 'A' CYLINDER POSITION 'B' CYLINDER POSITION C 62.5 MIN. START POSITION SEE ORDERING CODE 350.3 I+Z CARRIAGE I 19.1 0 nj -1_ m -d a t e -!鋗M-n- III 1 a ---1 ! STROKE (MAX. = FRAME SIZE) ՗ 0 013 (J) PLC'S o 6 Email: [email protected] www.destaco.com 1-888-DESTACO

DE-STA-CO Weld Slides WS3 Sries Weld S Maximum Load CYLINDER BORE Horizontal Orientation Vertical Orientation 50 mm [1.97 in] 136 kg [300 lbs] 34 kg [75 lbs] 63 mm [2.48 in] 227 kg [500 lbs] 50 kg [110 lbs] 80 mm [3.15 in] 227 kg [500 lbs] 80 kg [175 lbs] Notes: Standard slide cylinder is 80 mm [3.15 in] bore Maximum load is based on the following parameters: Horizontal cylinder velocity 500 mm/sec [20 in/sec] 镕 Vertical cylinder velocity is 375 mm/sec [15 in/sec] Vertical acceleration time is 0.2 sec Air pressure is 5.2 bar [75 psi] Load is centered on side carriage Maximum recommendation...

DE-STA-CO Weld Slides HJ] nom) COHMHT WS3 Sries Weld Slides Maximum Load Versus Angle of Incline MAXIMUM LOAD 50 mm [1.97 in] Cylinder Bore 63 mm [2.48 in] Cylinder Bore 80 mm [3.15 in] Cylinder Bore 0° (Horizontal) 136 kg [300 lbs] 227 kg [500 lbs] 227 kg [500 lbs] 5° 130 kg [287 lbs] 217 kg [479 lbs] 227 kg [500 lbs] 10° 125 kg [275 lbs] 207 kg [457 lbs] 227 kg [500 lbs] 15° 119 kg [262 lbs] 197 kg [435 lbs] 227 kg [500 lbs] 20° 113 kg [250 lbs] 188 kg [414 lbs] 227 kg [500 lbs] 25° 108 kg [237 lbs] 178 kg [392 lbs] 227 kg [500 lbs] 30° 102 kg [225 lbs] 168 kg [370 lbs] 227 kg [500 lbs] 35°...

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:4.80pt "Arial", sans-serif; } .font2 { font:5.00pt "Arial", sans-serif; } .font3 { font:6.00pt "Arial", sans-serif; } .font4 { font:8.10pt "Arial", sans-serif; } .font5 { font:10.00pt "Arial", sans-serif; } .font6 { font:11.00pt "Arial", sans-serif; } .font7 { font:12.00pt "Arial", sans-serif; } .font8 { font:13.00pt "Arial", sans-serif; } .font9 { font:9.00pt "Georgia", serif; } .font10 { font:4.00pt "Impact", sans-serif; } .font11 { font:19.00pt "Impact", sans-serif;...

DE-STA-CO Weld Slides Also Available The SLA Sries of programmable servo slides is one of the first in the industry to utilize ma or Technology Drive is located on the actuator - no external controller required in most cases Smart linear actuators are controlled by only 6 conductors - resulting in a lighter cable bundle for improved life cycle Motor drive is built onto the motor which, in many cases, eliminates the need for an external controller - reducing the amount of space required in a control cabinet Ball screw is integrated to the motor - no coupling An external computer is not required...

DE-STA-CO Weld Slides WS4W & WS5 Sries Weld Slides Features and Benefits Heavy-Duty Structural Frame Up To 1350 kg (3000lbs)(WS5) Up to 900 kg (2000lbs)(WS4W) Guarded Sheet metal guards for safety and protection from contamination Manual Lockout System Option For safety and maintenance Inverted Design Protects bearing system from weld slag and other contamination 1 (4) Standard Maximum stroke lengths from 125 to 500 mm Index length is easily adjustable in the field Provides a common tooling solution Pre-Engineered package saves time and money Integrated Shock/Sensor/Stop (WS5) Reduces field set-up...

DE-STA-CO Weld Slides WS4W & WS5 Sries Weld Slides Features and Benefits "Open Ended" Design Allows bearing system replacement without removing tooling Easy to maintain and repair Sealed, Self Lubricating Bearing System Provides Long Life Low Maintainance Actuator Mounted Inside Provides a compact footprint 500mm Weld Slide shown without Guards Highly Repeatable Repeatable to ±0.05 (.002") with hard stops Email: [email protected] www.destaco.com 1-888-DESTACO 13
