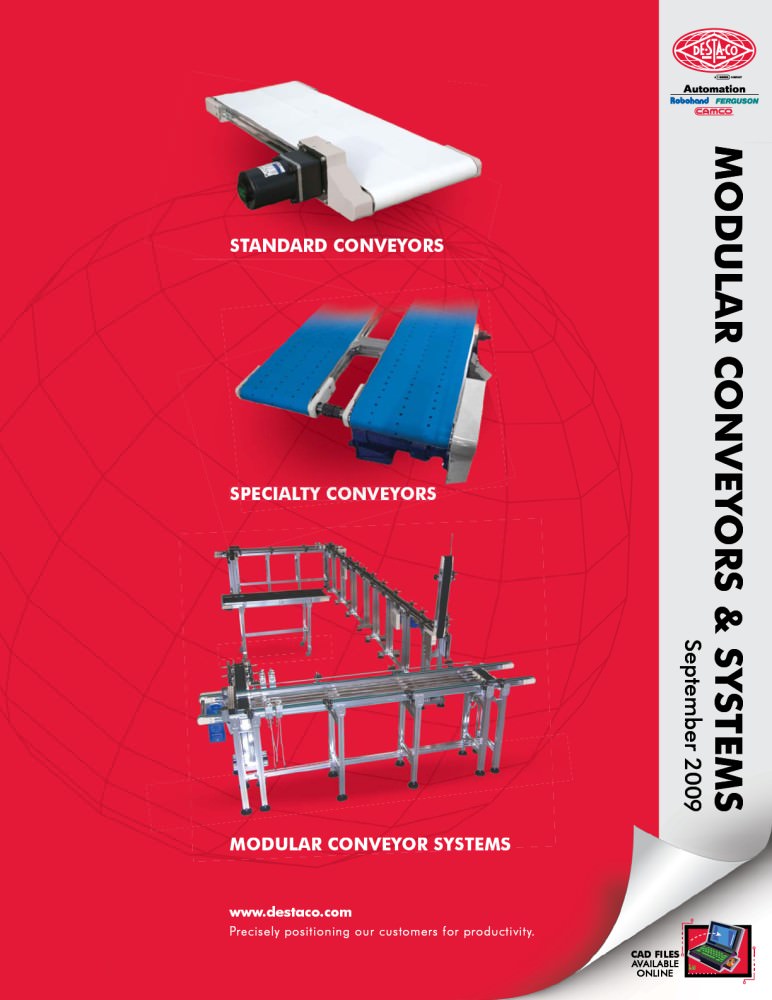

Modular Conveyor Systems
32Pages

i-STA THE BEST PRODUCTS. UNMATCHED SERVICE. WORLDWIDE. With a support network spanning the globe, DE-STA-CO offers consistent, comprehensive service to any location in the world. Whether your operations are localized or span multiple continents, you will always have access to the highest levels of customer service and technical support. Red Wing, Minnesota I Charlevoix, Michigan Auburn Hills, Michigan i UK Netherlands \ / /Germany \ Belgium ^China / France , Wheeling, Illinois Brazil TEAM DE-STA-CO Team DE-STA-CO represents our efforts to provide consistent, standard-setting service and...

FLAT BELTS 48 Series Low Profile Direct Drive Direct Drive Compact design gets the traditional drive train out of the way Օ Right Hand or Left Hand Drive In-feed 19mm Transfer Nose available Frame height (mm) 51mm Frame height (in) 2" Speed 0-100 fpm Width (mm) 48-400mm Width (in) 1.8"-15.7" Length (mm) 304-3657mm Length (in) 1-12 ft Variable Speed YES Fixed Speed YES Conveying Weight up to 22.7Kg up to 50 lbs. Voltages 115/1/60 230/1/60 230/3/60 Cleats (mm) 6-67mm Cleats (in) 0.236"-03" Accumulation YES Direct Drive Flat Belt ■4 Direct Drive Cleated Belt 4 1.888.DESTACO or 248.836.6700...

FLAT BELTS 48 Sries Low Profile Offset ► Head Drive Offset Head Drive Moves the Motor back past the Pulley Centerline for In-feed to Automated Stations 镕 Chain and Sprocket Drive for Long Life Left Hand and Right Hand Versions Օ Motor tucked under Conveyor for Width Restrictive Applications In-feed 19mm Transfer Nose available Frame height (mm) 51mm Frame height (in) 2" Speed 0-200 fpm Width (mm) 48-800mm Width (in) 1.8"-31.4" Length (mm) 304-4572mm Length (in) 1-15 ft Variable Speed YES Fixed Speed YES Conveying Weight up to 68Kg up to 150 lbs. Voltages 115/1/60 230/1/60 230/3/60...

Side Mount Head Drive Moves the Motor back and out past the Pulley Centerline for In-feed to Հutomated Stations Chain and Sprocket Drive for Long Life ■ Left Hand and Right Hand Versions ■ Motor moves Back and Out-bound for Cleated Belt applications n-feed 19mm Transfer Nose available Side Mount Up Frame height (mm) 51 mm Frame height (in) 2' Speed 0*200fpm Motor Position UporDown Width (mm) 48-800mm Width (in) 1.8"-31.4" Length (mm) 304-4572mrn Length (in) l-15ft Variable Speed YES Fixed Speed YES Conveying Wcight up lo 6 8 Kg up lo 150 Ibs. Voltages 115/1/60 230/1/60 230/3/60 460/3/60...

Automation Cftmco Center Drive ▼ Center Drive Leaves Entrance and Exit of Conveyor Unobstructed. Drive can be moved Upstream or Downstream as Required Օ Higher Load Capacities and Longer Lengths 19rnm Transfer Nose possible for both In-feed and Out-feed Frame height (mm) 51 mm Frame height (in) 2" Speed 0-400 fpm Width (mm) 48-800mm Width (in) 1.8--31.4" Length (mm) 609-12,192mm Length (in) 2-40 ft Variable Speed YES Fixed Speed YES Conveying Weight up to 91Kg up to 200 Ibs. Voltages 115/1/60 230/1/60 230/3/60 460/3/60 575/3/60 Accumulation YES 1.888.DESTACO or 248.836.6700 Fax;...

Direct Drive Compact design gets the traditional drive traծn out of the way Right Hand or Left Hand Drive ■ In-feed 19mm Transfer Nose available Frame height (mm) 74mm Frame height (in) 3" Speed 0-100fpm Width (mm) 48-400mm Width (in) 1.8M5.7" Length (mm) 304-4572mm Length (կn) 1-15ft Variable Speed YES Fixed Speed YES Conveying Weight up lo 204Kg up to 450 Ibs. Voltages 115/1/60 230/1/60 230/3/60 460/3/60 575/3/60 Cleats (mm) 6-67mm Cleats (in) 0.236'-03" Accumulation YES 74 Sries Mdium Duty Direct Drive 8 1.888.DESTACO or 248.836.6700 Fax: 248.836.6901 Visft usontheInternet at:...

74 Sries Mdium Duty Offset Head Drive Offset Head Drive 驕 Moves the Motor back past the Pulley Centerline for In-feed to Automated Stations Chain and Sprocket Drive for Long Life Օ Left Hand and Right Hand Versions Motor tucked under Conveyor for Width Restrictive Applications Օ In-feed 19mm Transfer Nose available Frame height (mm) 74mm Frame height (In) 3" Speed 0-200 fpm Width (mm) 48-800mm Width (in) 1.8'-31.4" Length (mm) 304-4572mm Length (in) l-15ft Variable Speed YES Fixed Speed YES Conveying Weight up to 204 Kg up to 450 Ibs. Voltages 115/1/60 230/1/60 230/3/60 460/3/60 575/3/60...

Center Drive Leaves Entrance and Exit of Conveyor Unobstructed. Drive can be moved Upstrearn or Downstrearn as Required Higher Load Capacities and Longer Lengths 19mm Transfer Nose possible for both In-feed and Out-feed 74 Sries Mdium Duty Direct Drive Frame he驮ght (mm) 74mm Frame height (in) 3" Speed 0-400 fpm Width (mm) 48-800 mm Width (in) 1.8'-31.4" Length (mm) 609-12,192m Length (in) 2-40 ft Variable Speed YES JVW Fixed Speed YES 5QS Conveying Weight up lo 2 72 Kg up lo 600 Ibs. Voltages 115/1/60 230/1/60 230/3/60 460/3/60 575/3/60 Accumulation YES 1 0 1 -888.DESTACO or 248.836.6700...

FLAT BELTS Conveyor Belts Common Belt Materials ■ Common Materials: Urethanes, PVC, Silicone and Nylon - Belting Options: Cleated, "V" Guided, Side Walls and High Friction Rough Tops ■ Welded Seamless or Plastic Mechanical Splice available Common Belt Materials ► 1.888.DESTACO or 248.836.6700 Fax: 248.836.6901 Visit us on he Interne! ol: www.destaco.com1

MODULAR P 48 Sries Low Profile Modular Plastic Belt Sprocket Driven for Positive Belt Engagement 镕 Higher Load Capacities and Longer Lengths 22mm Transfer Nose available Օ Wide variety of Belt Compositions and Styles Modular Construction for Simple Belt Change Օ Conveyor Length Stationary for Fixed Point Applications Frame height (mm) 51mm Frame height (in) 2" Speed 0-300 fpm Width (mm) 100-1219mm Width (in) 4"-48" Length (mm) 457-12,192mm Length (in) 1.5-40 ft Variable Speed YES Conveying Weight up to 272Kg up to 600 lbs. Voltages 115/1/60 230/1/60 230/3/60 460/3/60 575/3/60 Cleats YES...

lrplasticbelts 74 Sries Medium Duty 74 Sries Modular Plastic Belt Drive Modular Plastic Belts 驕 Sprocket Driven for Positive Belt Engagement Higher Load Capacities and Longer Lengths Օ 22mm Transfer Nose available Wide variety of Belt Compositions and Styles Օ Modular Construction for Simple Belt Change Conveyor Length Stationary for Fixed Point Applications Frame height (mm) 74mm Frame height (in) 3" Speed 0-300 fpm Width (mm) 100-1219mm Width (in) 4"-48" Length (mm) 457-12,192mm Length (in) 1.5-40 ft Variable Speed YES Conveying Weight up to 454Kg up to 1,000 lbs. Voltages 115/1/60...
