DE-STA-CO
DSC Conveyors Catalog

DSC Conveyors Catalog

Product catalog summary

Overview: The document provides comprehensive information on DE-STA-CO's modular power and free conveyor systems, highlighting their flexibility and adaptability for various manufacturing applications. The focus is on the modular design, which allows for easy customization and integration into existing systems.

Key Features:

Modular Design: Utilizes DIRECTCONNECT™ technology for quick component mounting without adaptor plates, supporting up to four axes of motion.
Product Range: Includes conveyors, slides, linear actuators, grippers, rotaries, and mounting stanchions.
Customization: Offers limitless configurations to meet specific application needs, enhancing accuracy and repeatability.

Conveyor Specifications:

Light Duty Conveyors (DCM-L1): Suitable for transporting parts up to 20 kg, with a maximum length of 10,000 mm and various chassis widths available.
Medium and Heavy Duty Conveyors: Designed for higher payloads and longer lengths, with specific configurations for different industrial needs.

Technical Details:

Drive Options: Available with end or center drives, powered by brushless DC motors with variable speed control.
Speed and Control: Two speed ranges with adjustable increments, controlled via a user-friendly keypad.
Environmental Conditions: Operates within +10 to +40°C and <95% relative humidity.

Assembly and Operation:

Component Kits: Conveyors can be purchased fully assembled or as kits for self-assembly, offering cost savings and flexibility.
Ease of Maintenance: Features like quick belt changes and adjustable tensioning systems facilitate easy maintenance.

Ordering Information: Detailed instructions on how to order various configurations, including options for belt quantity, drive orientation, and additional accessories.

Mounting Accessories: The document lists various mounting accessories such as floor stands with leveling pads or rolling feet, right angle mounting brackets, and different types of mounting slot nuts and screws. These accessories are essential for the proper installation and stability of the conveyor systems.

Guide Accessories: Several guide accessories are available, including adjustable and fixed lateral guides in black and white plastic, as well as guide holders and positioners. These components help in directing and stabilizing the materials being conveyed.

Control Accessories: The document details control accessories like sensor brackets for different sensor sizes, inductive sensors with quick disconnects, and power supplies. These are crucial for the automation and control of the conveyor systems.

Belt Types and Applications: The document outlines different belt materials, their fields of use, and their physical properties such as thickness, color, and operating temperature. It also provides guidance on the appropriate belt type for specific applications, including food, chemical, and pharmaceutical industries.

Key Considerations: The document highlights important considerations such as the limitations of rear drive configurations, the impact of knife edges on load limits, and the need to reduce load values for start-stop operations.

Medium Duty Conveyors (DCM-M1 Series):

Specifications: Available in chassis widths of 105mm, 140mm, 185mm, and 250mm. The maximum part width ranges from 333mm to 978mm. Conveyor lengths can be customized from a minimum of 497mm (horizontal drive) or 468mm (vertical drive) up to 10 meters.
Drive Options: Horizontal or vertical drive with left or right-hand travel orientation.
Belt Options: Single belt with stainless steel or galvanized steel glide plate support. Belt speeds range from 0.6 M/Min to 38.4 M/Min, with variable speed options available.
Ordering Information: Includes model number breakdown for specifying drive mount, belt quantity, glide plate material, chassis width, length, belt speed, drive position, and roller type.
Accessories: Includes mounting accessories, guide accessories, and control accessories such as frequency converters and motor switches.

Heavy Duty Conveyors (DCM-H1 Series):

Specifications: Designed for transporting parts up to 125 kg. Available chassis widths include 200mm, 300mm, 400mm, 500mm, 700mm, and 800mm. Belt lengths range from 1M to 15M.
Drive Options: End or center drive configurations, with the ability to adjust belt speed using sprockets or a frequency converter.
Technical Data: Operates with a three-phase asynchronous motor, available in 230V or 480V configurations. Features include a mechanical automatic belt-tensioning device and thermal protection sensors.
Construction: Chassis made of anodized aluminum, rollers of steel, and drive units of stainless steel and plastic.
Weight Information: Provides weight details for different chassis widths and drive configurations.

Key Considerations:

Load limits are determined by belt loading and drive capacity, with specific reductions when using knife edges.
Environmental conditions such as temperature and humidity are specified for optimal operation.

Conveyor System Accessories Overview:

Vertical Position Pallet Stopper: This accessory is used to stop and queue pallets on a conveyor belt. It is versatile, allowing placement anywhere along the conveyor and lateral adjustments.

Sensor Brackets and Sensors: Sensor brackets are designed for detecting pallet presence and are suitable for single width or bypass conveyor applications. Various sensors are available, including quick disconnect and hard-wired options, with different sensing ranges and configurations (NPN and PNP versions). These sensors can detect products and pallets as they move along the conveyor.

Motor Control and Frequency Converter: The motor control switch is used to power the motor on and off, while the frequency converter adjusts the speed of an AC conveyor motor.

Pallet Guides and Slot Connectors: Pallet guides provide lateral positioning and guidance for pallets, mounting in the chassis slot. Slot connectors and mounting slot nuts are used to connect conveyor chassis lengths and facilitate assembly.

Floor Stands and Belt Tensioners: Floor stands provide a stable base for conveyor modules, with adjustable heights specified by the customer. Belt tensioners accommodate belt stretch in long conveyor applications.

DE-STA-CO Company Overview: DE-STA-CO, a Dover Company, is a leader in clamping, gripping, transferring, and robotic tooling solutions. The company emphasizes lean manufacturing and offers a wide range of products to improve efficiency and reduce waste.

Product Warranty: DE-STA-CO guarantees its products to be free of defects in materials and workmanship. The warranty covers replacement of defective products but excludes damages from misapplication or abuse.

Catalog excerpts

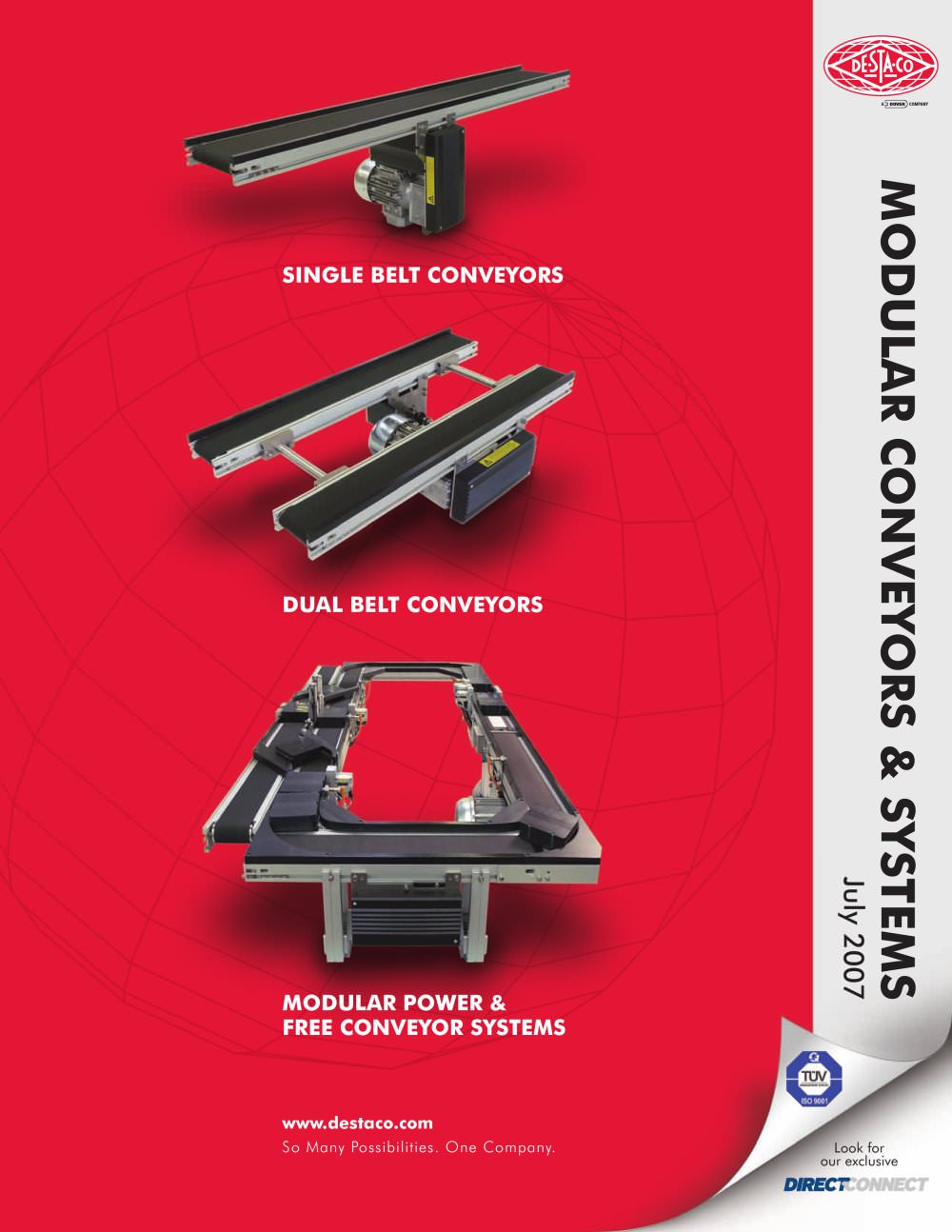

MODULAR CONVEYORS & SYSTEMS >

Open the catalog to page 1

To receive the highest possible benefit from an automation system, you need a solution tailored to your specific applications. DE-STA-CO Automation approaches automation from a modular perspective, using our unique DIRECTCONNECT technology to allow for quick and easy mounting of components without adaptor plates. This method allows for virtually unlimited motions using up to four axes. By offering a limitless variety of configurations, DE-STA-CO Automation has an automation system perfectly suited for your manufacturing operations. > Linear Slides Rotary Actuators Stanchions Electric Linear Actuators...

Open the catalog to page 2

Airpurity: normalindustrialenvironment Noiselevel: <60dBA Protectioncategoryofthedriveunit: IP54 Beltspeed: 0.6Ж38.4M/Min(10%) Motor:Type Three-phaseasynchronousmotor Ratedvoltage 3x230V/60Hz 3x480V/60Hz ConsultFactoryforAdditionalVoltages FrequencyConverter 1x230V/60Hz Material:Chassis aluminum,anodizedclear Rollers stainlesssteel,plastic Driveroller rubber-coatedaluminumPUR,steel Driveunit stainless/nickel-platedsteel,plasticABS Protectiveplate plasticPS Connectingcablesheath plasticPUR >

Open the catalog to page 26

Ambienttemperature: +10to+40C Rel.humidity: <95%(withoutcondensation) > DCM-H1SERIES Airpurity: normalindustrialenvironment > Noiselevel: <60dBA GearMotorType: Threephaseasynchronousmotor Voltage/frequency 3x230V/60Hz 3x480V/60Hz ConsultFactoryforAdditionalVoltages Frequencyconverter 1x230V/60Hz Categoryofprotection IP54 Typeofswitching Delta/star Insulationofmotorwindings forfrequencyconverteroperationwithphaseisolation Thermalprotection withtwothermalsensors(from130аC) Start/stopoperation 20pulsesperminute On-time: 100% Material:Chassis aluminum,anodizedclear Rollers steel Driveroller rubber-coatedaluminumPUR,steel...

Open the catalog to page 49

Formoreinformationcallusat: 1-888-DESTACO VisitusontheInternetat: www.destaco.com >

Open the catalog to page 66

Formoreinformationcallusat: 1-888-DESTACO VisitusontheInternetat: www.destaco.com >

Open the catalog to page 81

30035 CONVEYORSYSTEMS DCM-M1 Extrusion > KTB/KTBDTB/TBD 96 8585 Extra single belt tensioner DCM- Order No. Extra dual belt tensioner DCM- Order No. DCM-M1-S-105 DCK-LM1-105-BTS DCM-M1-D-105 DCK-LM1-105-BTD DCM-M1-S-140 DCK-LM1-140-BTS DCM-M1-D-140 DCK-LM1-140-BTD DCM-M1-S-185 DCK-M1-185-BTS DCM-M1-D-185 DCK-M1-185-BTD DCM-M1-S-250 DCK-M1-250-BTS DCM-M1-D-250 DCK-M1-250-BTD (for M1 conveyors from 7 m) > D B TM A He i ght BӔ f r om f l oo r to be l t C in mm. Custome r spec i f i ed in o r de r st rin g XXXX. 140 140 Conveyor Floor Stands provide a solid, adjustable base for conveyor modules. Floor...

Open the catalog to page 131

Through a constant commitment to the Team DE-STA-CO philosophy, we draw from our worldwide pool of information and resources to offer the highest levels of service to each of our customers, regardless of geographic location. Our status as a truly global company empowers us to improve the global competitiveness of your operations. Whatever your automation or workholding need, Team DE-STA-CO has the best possible solution. > DE-STA-CO, a Dover Company, was founded in 1915. In 1936 the company designed and manufactured the first manual toggle clamp.Innovations, quality and acquisitions have made...

Open the catalog to page 132
