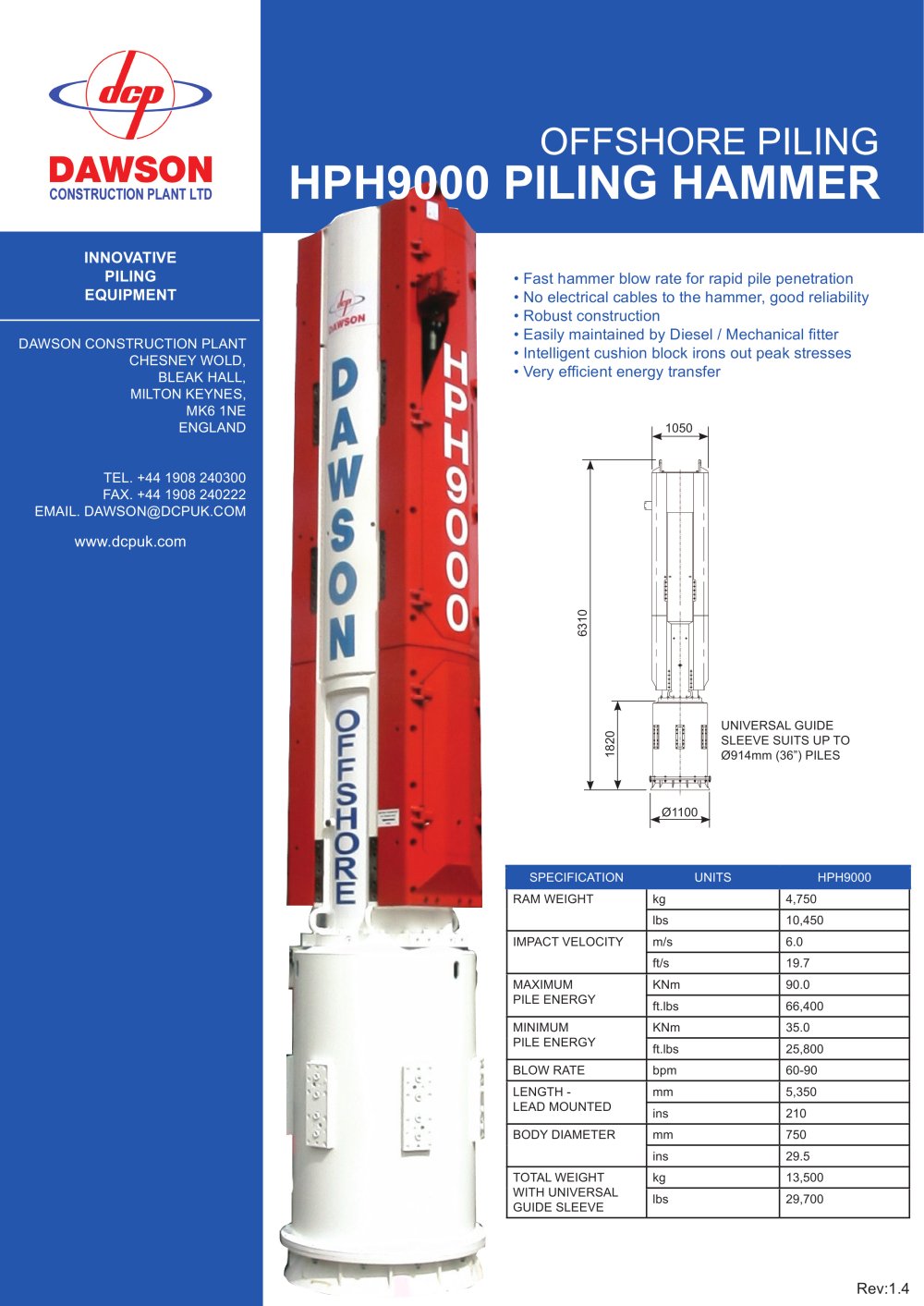

INNOVATIVE PILING EQUIPMENT www.dcpuk.com SPECIFICATION UNITS HPH9000 RAM WEIGHT kg 4,750 lbs 10,450 IMPACT VELOCITY m/s 6.0 ft/s 19.7 MAXIMUM PILE ENERGY KNm 90.0 ft.lbs 66,400 MINIMUM PILE ENERGY KNm 35.0 ft.lbs 25,800 BLOW RATE bpm 60-90 LENGTH - LEAD MOUNTED mm 5,350 ins 210 BODY DIAMETER mm 750 ins 29.5 TOTAL WEIGHT WITH UNIVERSAL GUIDE SLEEVE kg 13,500 lbs 29,700 1820 6310 1050 UNIVERSAL GUIDE SLEEVE SUITS UP TO Ø914mm (36”) PILES Ø1100 HPH9000 PILING HAMMER • Fast hammer blow rate for rapid pile penetration • No electrical cables to the hammer, good reliability • Robust construction • Easily maintained by Diesel / Mechanical fitter • Intelligent cushion block irons out peak stresses • Very efficient energy transfer OFFSHORE PILING DAWSON CONSTRUCTION PLANT CHESNEY WOLD, BLEAK HALL, MILTON KEYNES, MK6 1NE ENGLAND TEL. +44 1908 240300 FAX. +44 1908 240222 EMAIL. [email protected] Rev:1.4

HPH9000 POWERPACK DAWSON CONSTRUCTION PLANT CHESNEY WOLD, BLEAK HALL, MILTON KEYNES, MK6 1NE ENGLAND TEL. +44 1908 240300 FAX. +44 1908 240222 EMAIL. [email protected] SPECIFICATION UNITS DHP170 DIESEL ENGINE POWER kW 168 rpm 2200 HYDRAULIC SYSTEM PRESSURE bar 270 psi 3915 OIL FLOW RATE l/min 270 SIZE - LENGTH x WIDTH x HEIGHT m 3.8 x 1.5 x 2 ins 149 x 59 x 78 WEIGHT kg 4800 lbs 10,560 FUEL CAPACITY litres 460 FUEL CONSUMPTION @ 60% litres / hour 28 This Dawson power pack is fully self contained, including all oil and fuel reservoirs, prime mover and hydraulic circuitry. The power pack is designed...
