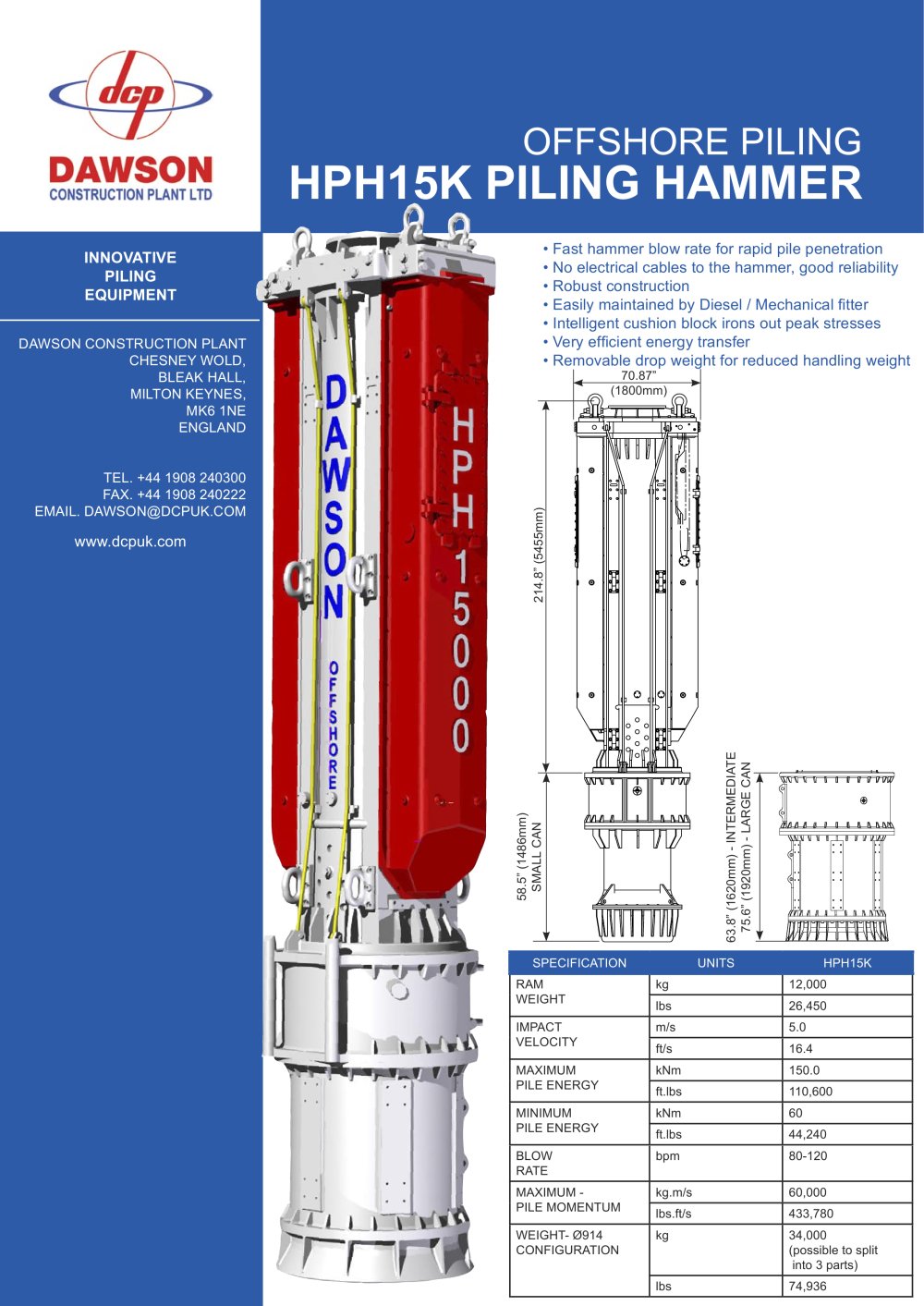

INNOVATIVE PILING EQUIPMENT www.dcpuk.com SPECIFICATION UNITS HPH15K RAM WEIGHT kg 12,000 lbs 26,450 IMPACT VELOCITY m/s 5.0 ft/s 16.4 MAXIMUM PILE ENERGY kNm 150.0 ft.lbs 110,600 MINIMUM PILE ENERGY kNm 60 ft.lbs 44,240 BLOW RATE bpm 80-120 MAXIMUM - PILE MOMENTUM kg.m/s 60,000 lbs.ft/s 433,780 WEIGHT- Ø914 CONFIGURATION kg 34,000 (possible to split into 3 parts) lbs 74,936 HPH15K PILING HAMMER • Fast hammer blow rate for rapid pile penetration • No electrical cables to the hammer, good reliability • Robust construction • Easily maintained by Diesel / Mechanical fitter • Intelligent cushion block irons out peak stresses • Very efficient energy transfer • Removable drop weight for reduced handling weight OFFSHORE PILING DAWSON CONSTRUCTION PLANT CHESNEY WOLD, BLEAK HALL, MILTON KEYNES, MK6 1NE ENGLAND TEL. +44 1908 240300 FAX. +44 1908 240222 EMAIL. [email protected] 70.87” (1800mm) 214.8” (5455mm) 58.5” (1486mm) SMALL CAN 63.8” (1620mm) - INTERMEDIATE 75.6” (1920mm) - LARGE CAN

HPH15K POWERPACK DAWSON CONSTRUCTION PLANT CHESNEY WOLD, BLEAK HALL, MILTON KEYNES, MK6 1NE ENGLAND TEL. +44 1908 240300 FAX. +44 1908 240222 EMAIL. [email protected] SPECIFICATION UNITS DHP470 DIESEL ENGINE POWER kW 470 HP 630 rpm 2100 HYDRAULIC SYSTEM PRESSURE bar 280 psi 4060 OIL FLOW RATE l/min 850 (US) gal/min 225 SIZE - LENGTH x WIDTH x HEIGHT m 5.25 x 2.2 x 2.4 ins 206.7 x 86.6 x 94.5 WEIGHT kg 12,000 lbs 26,460 FUEL CAPACITY litres 1000 (US) gallons 264 FUEL CONSUMPTION @ 60% l/hr 78.6 (US) gal/hr 20.8 OFFSHORE PILING CATERPILLAR C-18 ATAAC® - 6 CYLINDER DIESEL MOTOR WITH TURBOCHARGER...
