Davis Standard Extrusion Systems
DAVIS-STANDARD UTH GEAR EXTRUDER

DAVIS-STANDARD UTH GEAR EXTRUDER

Product catalog summary

Overview: The Davis-Standard Uth gear extruder is designed to enhance rubber processing by improving product quality and extrusion processes. It can function independently or alongside a single screw extruder to pre-screen rubber and remove impurities.

Key Features:

Two-roll feeder for single or multiple strip feed operation.
Available screen diameters: 200mm, 300mm, and 370mm.
Multiple temperature control zones for precise processing.
Hydraulic clamp and adjustable hinged head for flexibility.
Touch-screen PLC control for user-friendly operation.
Pre-piped and wired on a common base for easy installation.

Advantages:

Can be used as a pre-feed device to improve rubber straining quality with minimal temperature rise.
Versatile configurations with changeable inserts and removable feed roll assembly.
Machined flange adapters available for enhanced output stability.
Energy-saving, compact design with simplified maintenance.

Applications:

Straining
Calendar feeding
Pre-warming
Upgrading existing lines for improved stability and quality

Quality Components:

Hydraulic head clamp with base-mounted power unit.
Multiple temperature control zones.
Touch screen operator control station.
Direct coupled, two-roll feeder for easy cleaning.
Various gear designs tailored to applications.

Machine Design Parameters:

Model	Nominal Output (lb/hr)	Required Power (Gears)	Required Power (Feed Rolls)	Max Speed (RPM)	Approx. Weight (lbs)	Dimensions (LxWxD in.)
70	500/1,000*	10 HP	(2) x 3 HP	35	7,100	60 x 36 x 105
120	1,300/2,600*	50 HP	(2) x 5 HP	30	8,100	90 x 55 x 105
150	2,200/4,400*	70 HP	(2) x 7.5 HP	30	10,100	103 x 63 x 105

*In connection with existing screw-type extruder machines.

Catalog excerpts

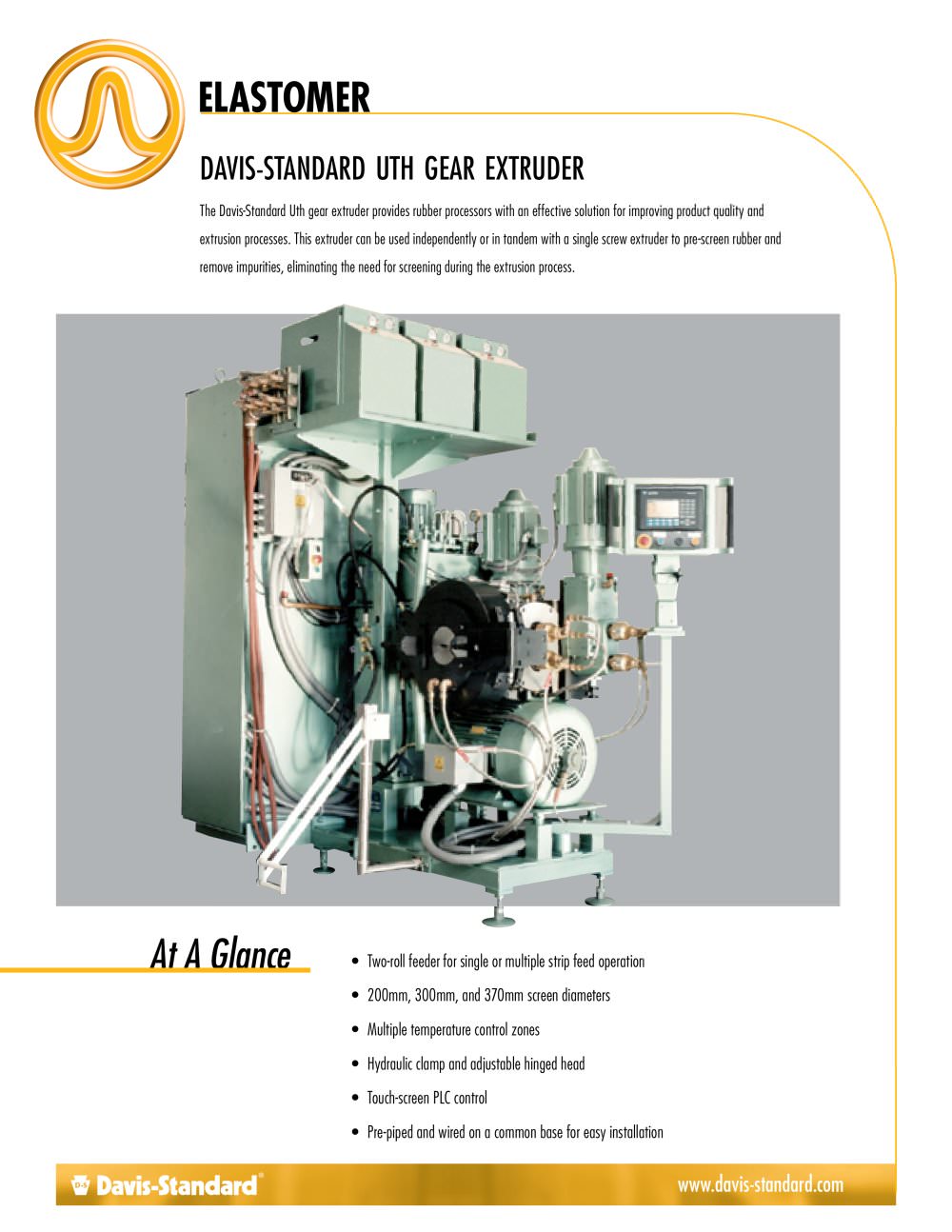

ELASTOMER At A Glance DAVIS-STANDARD UTH GEAR EXTRUDER www.davis-standard.com The Davis-Standard Uth gear extruder provides rubber processors with an effective solution for improving product quality and extrusion processes. This extruder can be used independently or in tandem with a single screw extruder to pre-screen rubber and remove impurities, eliminating the need for screening during the extrusion process. • Two-roll feeder for single or multiple strip feed operation • 200mm, 300mm, and 370mm screen diameters • Multiple temperature control zones • Hydraulic clamp and adjustable hinged head • Touch-screen PLC control • Pre-piped and wired on a common base for easy installation

Open the catalog to page 1

DAVIS-STANDARD UTH GEAR EXTRUDER cont. www.davis-standard.com DAVIS-STANDARD, LLC #1 Extrusion Drive Pawcatuck, CT 06379-2313 | UNITED STATES Tel: +860-599-1010 | Fax: +860-599-6258 D-S BROOKES LIMITED Unit 33 Hainge Road Tividale, Oldbury, West Midlands B69 2NY | UNITED KINGDOM Tel: +44 121 522 0030 | Fax: +44 121 522 0031 DAVIS-STANDARD CHINA Room 1007, Jing An China Tower | 1701 Beijing (W) Road Shanghai 200042 | P.R. CHINA Tel: +86-21-5150 1908 | Fax: +86-21-5150 1906 © 2007 Davis-Standard, LLC. All Rights Reserved. GEAR EXTRUDER ADVANTAGES Versatile and Unique Features • Can be used as a...

Open the catalog to page 2
