W-Class Wide Bar Code Printers
W-Class Wide Bar Code Printers
- Print Speed: W-6208 and W-6308 at 8 IPS; W-8306 at 6 IPS.
- Resolution: 203 DPI for W-6208; 300 DPI for W-6308 and W-8306.
- Print Width: Ranges from 6.62” to 8.53”.
- Media Width: Varies from 2.0” to 9.0”.
- Processor and Memory: 32-bit, 90-MHz processor with 16MB standard memory.
- Construction: All-metal chassis and exterior for durability.
- Adjustable-contrast LCD for media, speed, and temperature settings.
- Supports various barcode types and fonts, including downloadable True-Type and AGFA® Intellifont™.
- Multiple connectivity options including Ethernet, USB, and RS232.
- Optional features like label present sensor, Ethernet connectivity, and internal rewind.

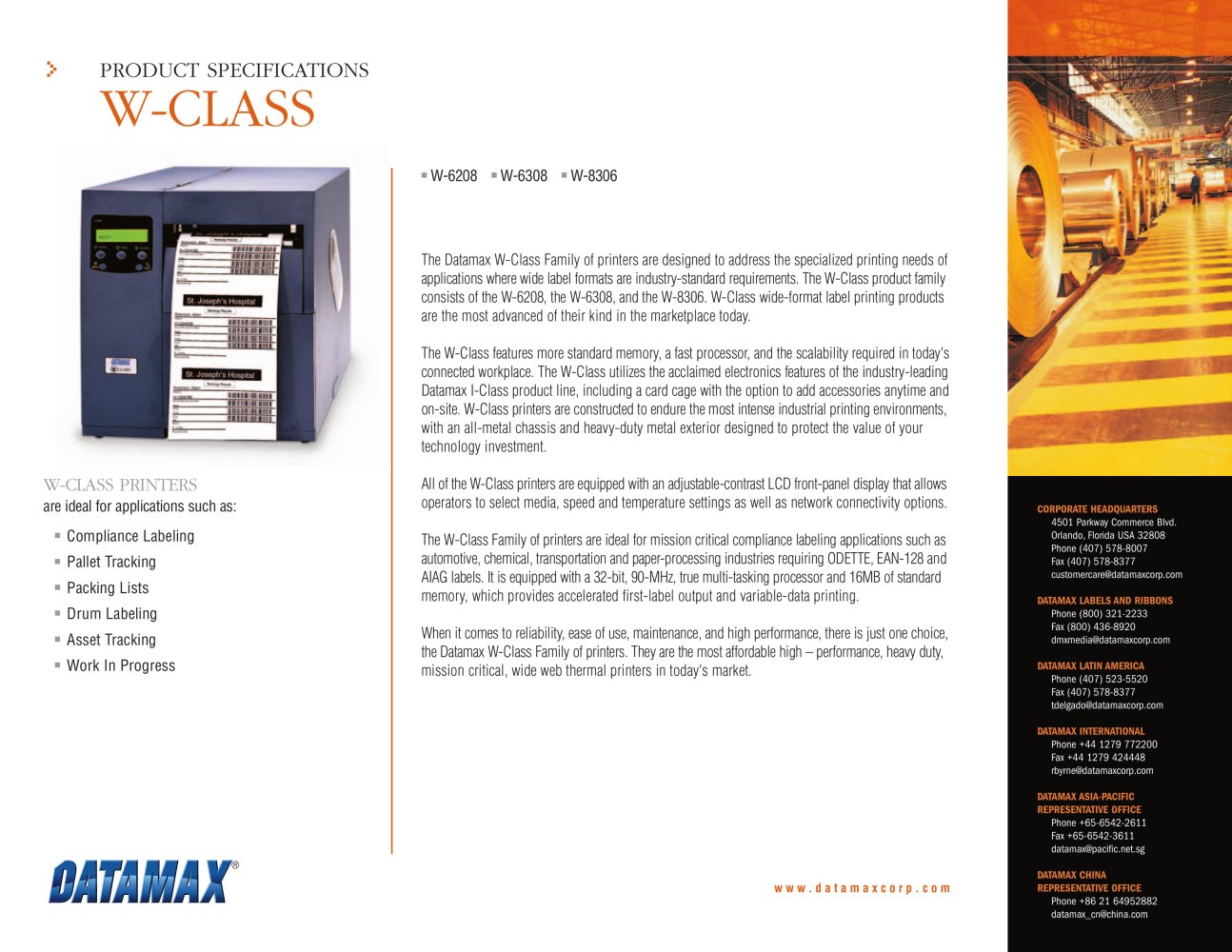

Catalog excerpts
W-6208W-6308W-8306 PRINT SPEED8 IPS8 IPS6 IPS > ■ COVER DAMPENER RESOLUTION203 DPI300 DPI300 DPIPRINT WIDTH6.626.40Ԕ8.53 > Ԣ֠ LABEL PRESENT SENSOR (168.1 mm)(162.6 mm)(216.7mm)MEDIA WIDTH 2.0 - 6.7Ԕ2.0 - 6.7Ԕ3.0 - 9.0Ԕ > ■ DMXNet ETHERNET CONNECTIVITY (50.8mm - 170.18mm)(50.8mm - 170.18mm)(76.2mm - 228.6mm)DATAMAX W-CLASS OPTIONS: > ■ DMXrfNet ETHERNET CONNECTIVITY > ■ LIGHT DUTY CUTTER* PRINTER TYPEDirect Thermal or Thermal Transfer > ■ PEEL AND PRESENT BAR CODE MODULUS5 mil to 150 mil (203 dpi) / 3.3 mil to 150 mil (300 dpi) "X" dimension in picket fence or ladder orientations > ■ USB INTERFACE...
