Thermal Ticket Printer (Tabletop)

Product catalog summary

Product Overview: The Datamax S-Class family of ticket and tag printers, including the ST-3210 and ST-3306 models, offers advanced features for direct thermal admissions ticket printing. Key features include high print speeds, adjustable ticket width guides, multiple printer languages, and robust construction.

Specifications: The ST-3210 offers a print speed of up to 10 inches per second (ips) with a resolution of 203 dpi, while the ST-3306 provides 6 ips at 300 dpi. Both models support a print width of approximately 3.15 to 3.2 inches and can handle media widths from 1.9 to 3.25 inches. They are equipped with a metal cabinet and offer various barcode symbologies, including 2D barcodes like PDF417 and Datamatrix.

Applications: These printers are ideal for a range of applications such as stadium events, parking facilities, loyalty programs, live events, ski resorts, coupons, and theater venues.

Market and Usage: The development of these printers was driven by the growing demand for automated ticketing solutions, particularly in small to medium-sized applications. The use of the Internet for ticket sales and the need for fraud reduction are key market drivers.

Options and Accessories: Available options include a cutter and tray, flash memory modules, an Ethernet print server, and a media roll hanger. The printers support various programming languages and interfaces, including Centronics Parallel port and RS232.

Compliance and Standards: The printers are built to UL, Canadian, and European safety standards, and comply with FCC Class A emissions standards and CE Mark.

Contact Information: Datamax provides contact details for various regional offices, including headquarters in Orlando, Florida, and offices in Latin America, International, Asia-Pacific, and China.

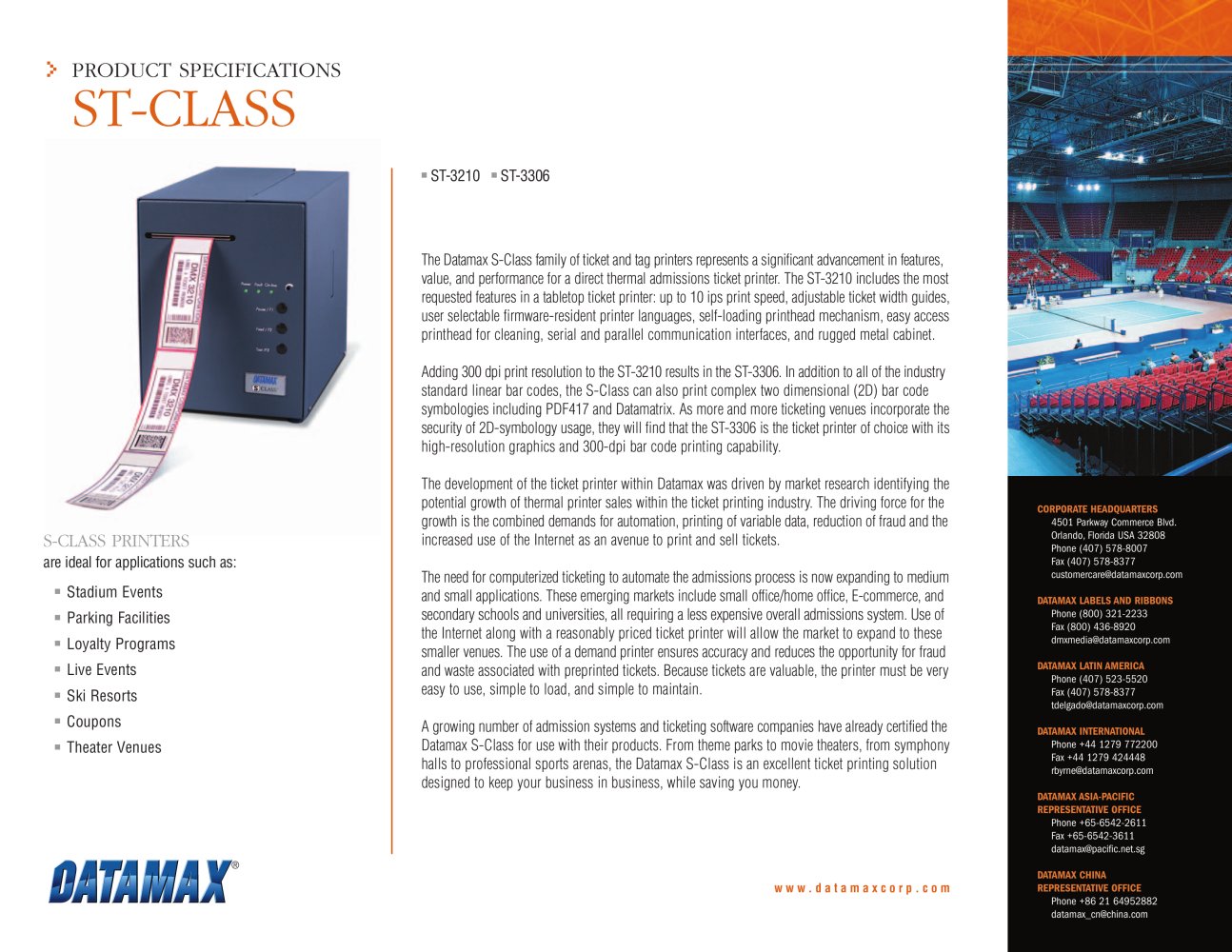

Catalog excerpts

ST-3210ST-3306 PRINT SPEED10 IPS6 IPS > ■ CUTTER AND TRAY RESOLUTION203 DPI300 DPIPRINT WIDTH3.153.2Ԕ > ■ FLASH MEMORY MODULES (80 mm)(81.3mm)DATAMAX ST-CLASS OPTIONS: > ■ DMX100 ETHERNET PRINT SERVER > ■ MEDIA ROLL HANGER PRINTER TYPEDirect Thermal BAR CODE MODULUS5 mil to 55 mil (203 dpi) / 3.3 mil to 40 mil (300 dpi) "X" dimension in picket fence or ladder orientations > ■ ILPC FIRMWARE MEDIA WIDTH1.9" 3.25" (48.26mm ֖ 82.55mm) MEDIA TYPERoll or Fan-fold tickets or tags MEDIA THICKNESS.005" .0100" (.127mm ֖ .254mm) MEDIA SENSINGAdjustable reflective sensor for media with black stripe sensing...
