Thermal Ticket Printer (In-Counter)

Thermal Ticket Printer (In-Counter)

Product catalog summary

Product Overview: The Datamax S-Class printers, specifically the SV-3210 and SV-3306 models, are designed for high-performance ticketing applications. They are suitable for various venues such as stadiums, parking facilities, and theaters, offering a balance of price and performance for vertical mount admissions ticketing.

Specifications:

Print Speed: SV-3210 at 10 IPS, SV-3306 at 6 IPS.
Resolution: SV-3210 at 203 DPI, SV-3306 at 300 DPI.
Print Width: SV-3210 at 3.15 inches, SV-3306 at 3.2 inches.
Printer Type: Direct Thermal.
Media Type: Fan-fold tickets or tags with adjustable reflective sensor for black stripe sensing.
Bar Codes Supported: Includes Code 3 of 9, UPC, EAN, and more.
Fonts: Ten alphanumeric fonts, expandable and rotatable in four directions.
Interfaces: Centronics Parallel port, RS232.
Power Source: 110 or 220 VAC.
Operating Temperature: 32°F to 100°F (0°C to 38°C).
Dimensions and Weight: 10” H x 8” W x 14” D, weighing 18.8 lbs.

Options and Features:

Includes options like cutter and tray, flash memory modules, and Ethernet print server.
Supports various graphics formats and programming languages for customization.

Compliance and Standards: Built to UL, Canadian, and European safety standards, FCC Class A emissions standard, and CE Mark. Datamax is an ISO 9001 registered company.

Contact Information: Various regional offices are listed for customer support, including contact details for headquarters in Orlando, Florida.

Catalog excerpts

4501 Parkway Commerce Blvd. Orlando,Florida USA 32808Phone (407) 578-8007Fax (407) [email protected] > DATAMAX LABELS AND RIBBONS DATAMAX LATIN AMERICA Phone (800) 321-2233 Fax (800) 436-8920 [email protected] > ■ DATAMAX INTERNATIONAL Phone (407) 523-5520 Fax (407) 578-8377 [email protected] DATAMAX ASIA-PACIFIC REPRESENTATIVE OFFICE Phone +44 1279 772200 Fax +44 1279 424448 [email protected] > ■ DATAMAX CHINAREPRESENTATIVE OFFICE Phone +65-6542-2611 Fax +65-6542-3611 [email protected] > ■

Open the catalog to page 1

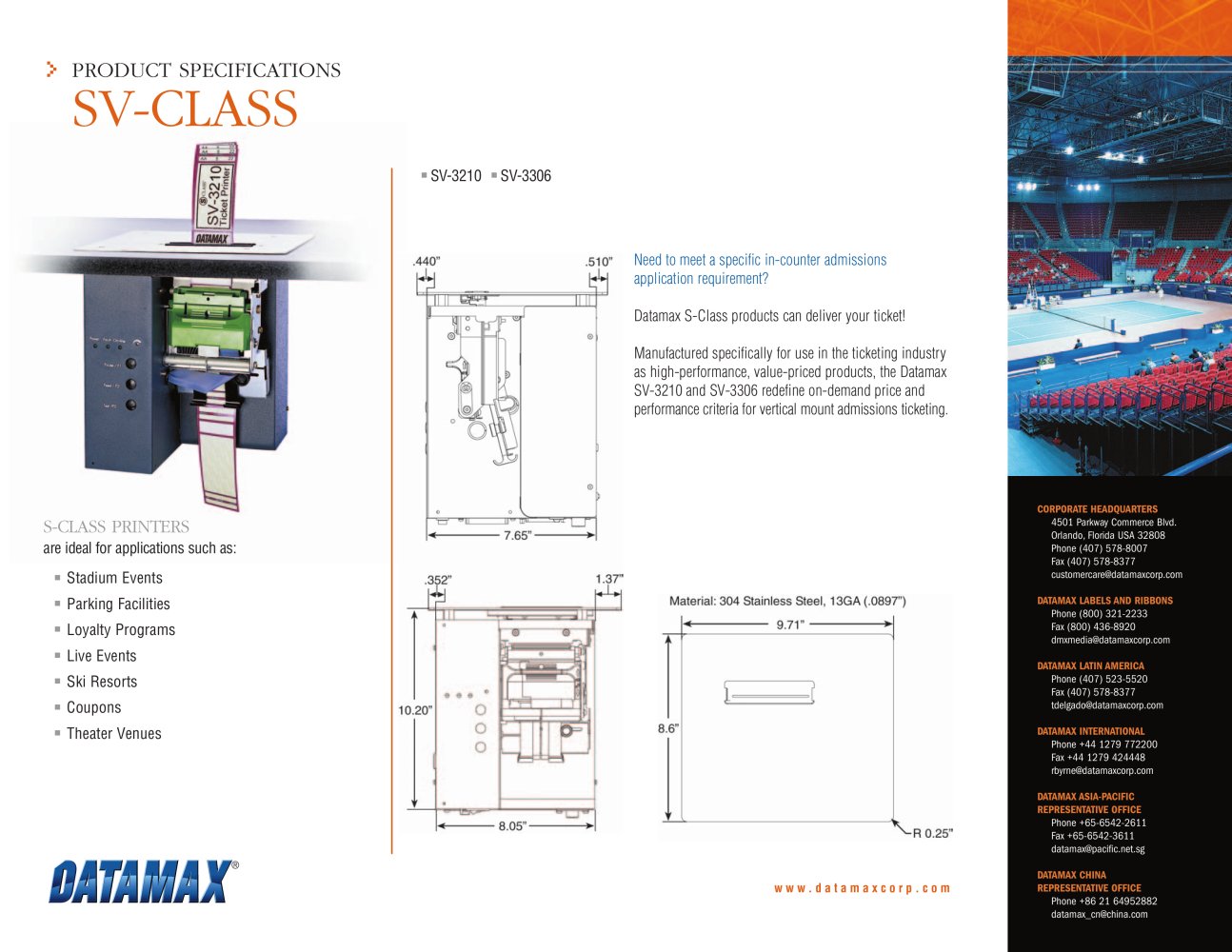

SV-3210SV-3306 PRINT SPEED10 IPS6 IPS > ■ CUTTER AND TRAY RESOLUTION203 DPI300 DPIPRINT WIDTH3.153.2Ԕ > ■ FLASH MEMORY MODULES (80 mm)(81.3mm)DATAMAX SV-CLASS OPTIONS: > ■ ILPC FIRMWARE > ■ DMX100 ETHERNET PRINT SERVER PRINTER TYPEDirect Thermal BAR CODE MODULUS5 mil to 55 mil (203 dpi) / 3.3 mil to 40 mil (300 dpi) "X" dimension in picket fence or ladder orientations MEDIA WIDTH1.9" 3.25" (48.26mm ֖ 82.55mm) MEDIA TYPEFan-fold tickets or tags MEDIA THICKNESS.005" .0100" (.127mm ֖ .254mm) MEDIA SENSINGAdjustable reflective sensor for media with black stripe sensing (Automatic feed and top of...

Open the catalog to page 2
