Product catalog summary
Introduction
Datamax introduces the I-Class RFID printer, designed to meet the needs of current and potential RFID smart label users. It offers modularity and the option to install an RFID module, supporting both HF and UHF standards.

Specifications
The printer supports HF at 13.56 MHz (ISO 15693) and UHF between 860-960 MHz (EPCglobal Class 0, 0+, 1, Class 1 Gen 2, ISO 18000-6, Philips U Code). It is built to UL, Canadian, European safety standards, FCC Class A emissions, and CE Mark.

Applications
Ideal for logistics management, baggage tags, retail/apparel, inventory control, library systems, asset/people tracking, and anti-theft.

Models and Performance
  • I-4210: 10 IPS, 203 DPI, 4.10” width
  • I-4308: 8 IPS, 300 DPI, 4.16” width
  • I-4212: 12 IPS, 203 DPI, 4.10” width
  • I-4406: 6 IPS, 406 DPI, 4.10” width
  • I-4604: 4 IPS, 600 DPI, 4.16” width

Options and Features
Includes thermal transfer, Ethernet connectivity, font expansion, USB interface, internal rewind, and support for multiple languages and fonts. Supports various barcode types and graphics formats.

Physical and Environmental
Dimensions: 12.70” H x 12.62” W x 18.60” D. Weight: 45 lbs. Operating temperature: 32°F to 100°F (0°C to 38°C).

Contact Information
Corporate headquarters in Orlando, Florida, with international offices in Latin America, Europe, Asia-Pacific, and China.
See more

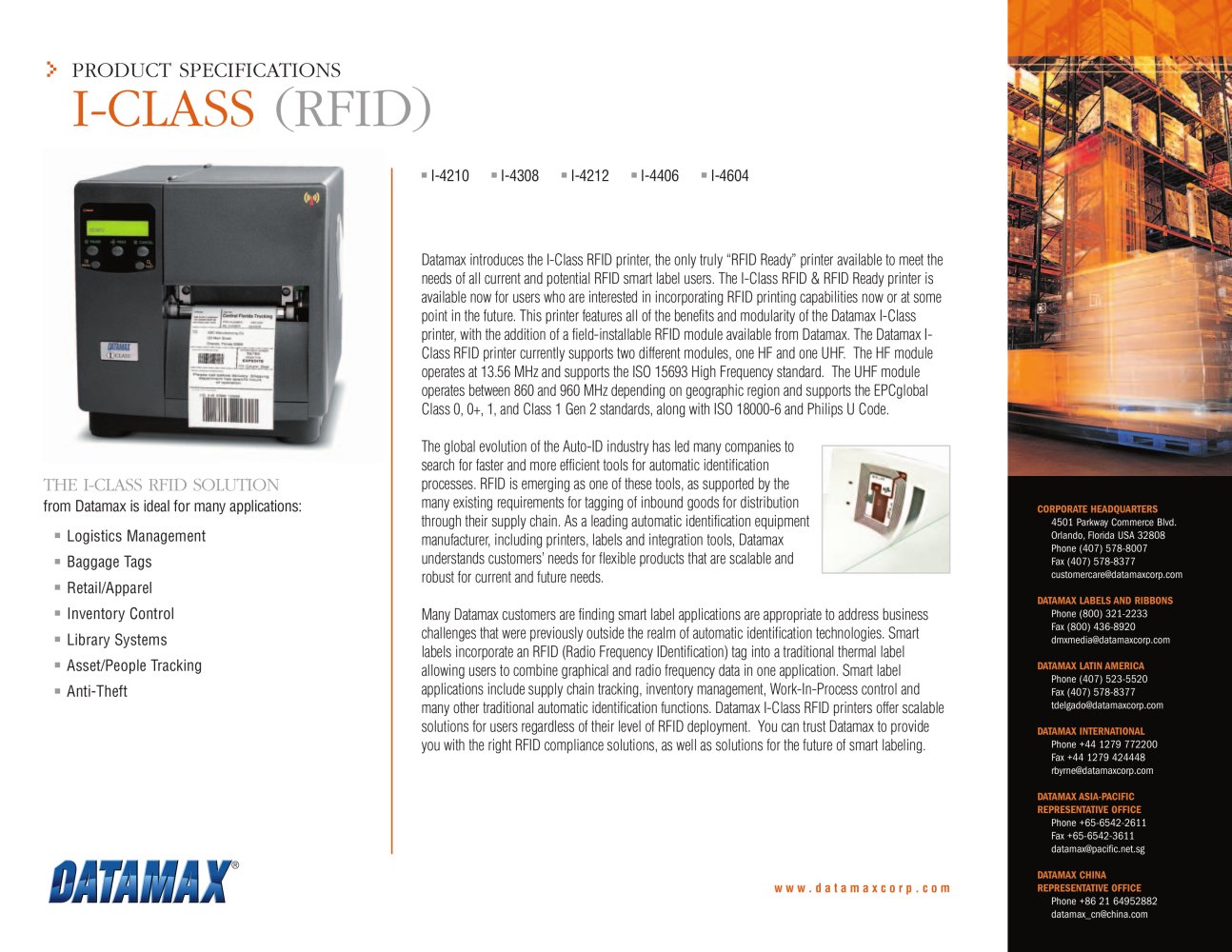

Catalog excerpts

RFID Thermal Printers-2

I-4210 RFIDI-4308 RFIDI-4212 RFIDI-4406 RFIDI-4604 RFID PRINT SPEED10 IPS8 IPS12 IPS6 IPS4 IPS > ■ THERMAL TRANSFER RESOLUTION203 DPI300 DPI203 DPI406 DPI600 DPIPRINT WIDTH4.104.16Ԕ4.104.10Ԕ4.16 > Ԣ֠ DMXNet ETHERNET CONNECTIVITY (104 mm)(105.7 mm)(104 mm)(104 mm)(105.7mm)PRINT LENGTH*0.25" 99"0.25" ֖ 99"0.25" 99"0.25" ֖ 84"0.25" 55" > ֢֠ FONT EXPANSION CARD (6.35mm 2475.6mm)(6.35mm ֖ 2475.6mm)(6.35mm 2475.6mm)(6.35mm ֖ 2133.6mm)(6.35mm 1397.0mm) > ֢֠ USB INTERFACE MEMORY2MB Flash; 16MB SDRAM2MB Flash; 16MB SDRAM2MB Flash; 16MB SDRAM2MB Flash; 16MB SDRAM2MB Flash; 16MB SDRAM DATAMAX I-CLASS (RFID)OPTIONS:...

 Open the catalog to page 2
